Component Parts Location

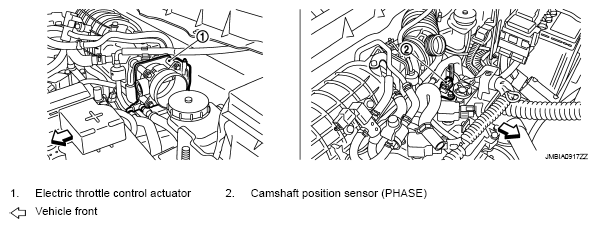

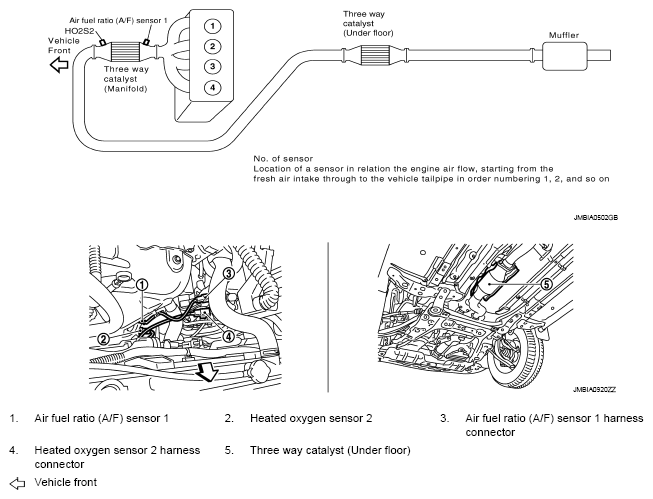

Fig 1: Identifying Electric Ignition System Components Location (1 Of 12)

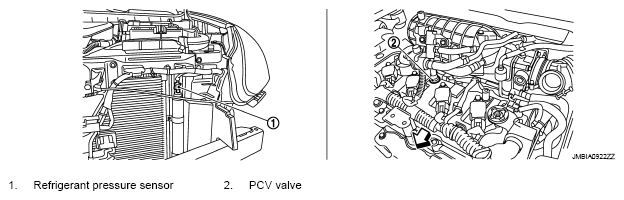

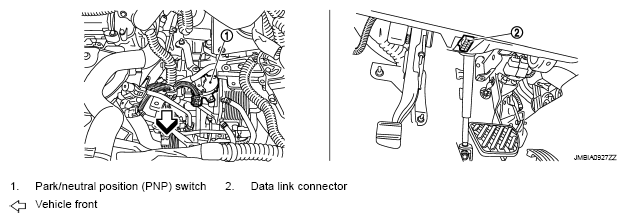

Fig 2: Identifying Electric Ignition System Components Location (2 Of 12)

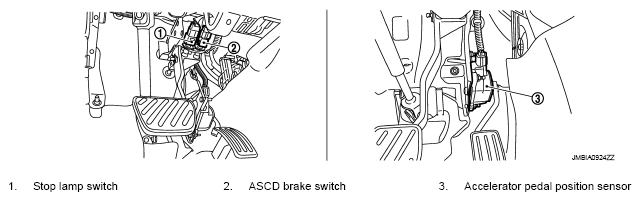

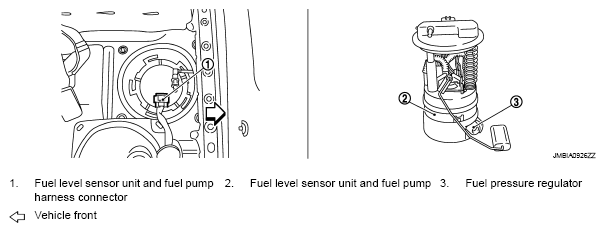

Fig 3: Identifying Electric Ignition System Components Location (3 Of 12)

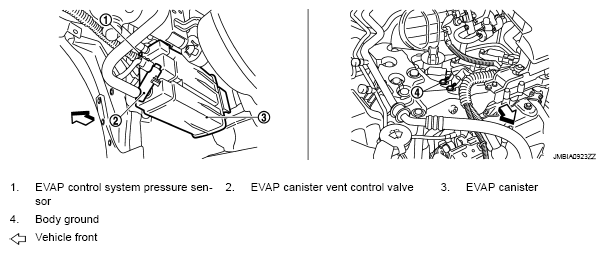

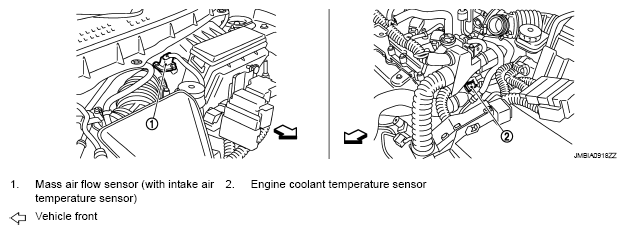

Fig 4: Identifying Electric Ignition System Components Location (4 Of 12)

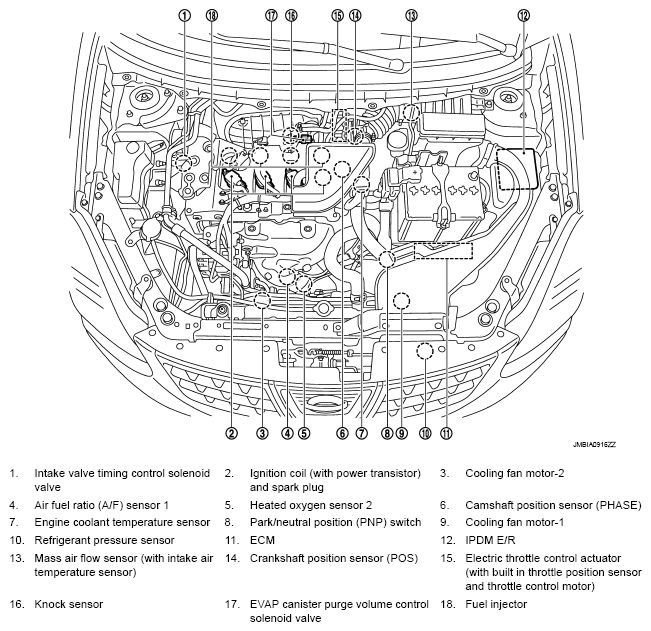

Fig 5: Identifying Electric Ignition System Components Location (5 Of 12)

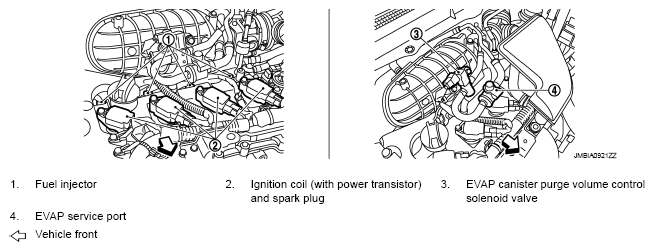

Fig 6: Identifying Electric Ignition System Components Location (6 Of 12)

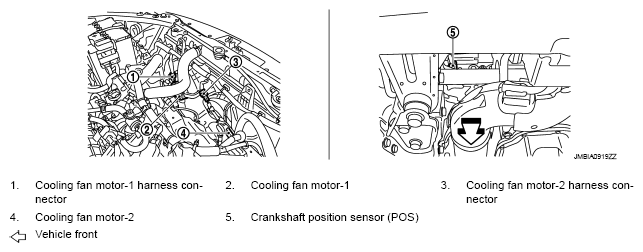

Fig 7: Identifying Electric Ignition System Components Location (7 Of 12)

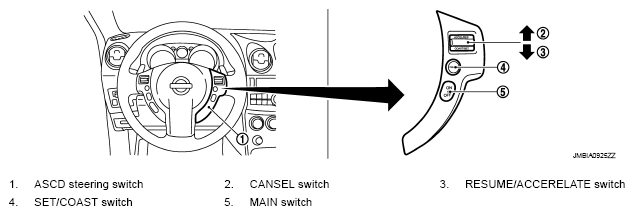

Fig 8: Identifying Electric Ignition System Components Location (8 Of 12)

Fig 9: Identifying Electric Ignition System Components Location (9 Of 12)

Fig 10: Identifying Electric Ignition System Components Location (10 Of 12)

Fig 11: Identifying Electric Ignition System Components Location (11 Of 12)

Fig 12: Identifying Electric Ignition System Components Location (12 Of 12)
