DTC P0181 FTT Sensor: Wiring Diagram

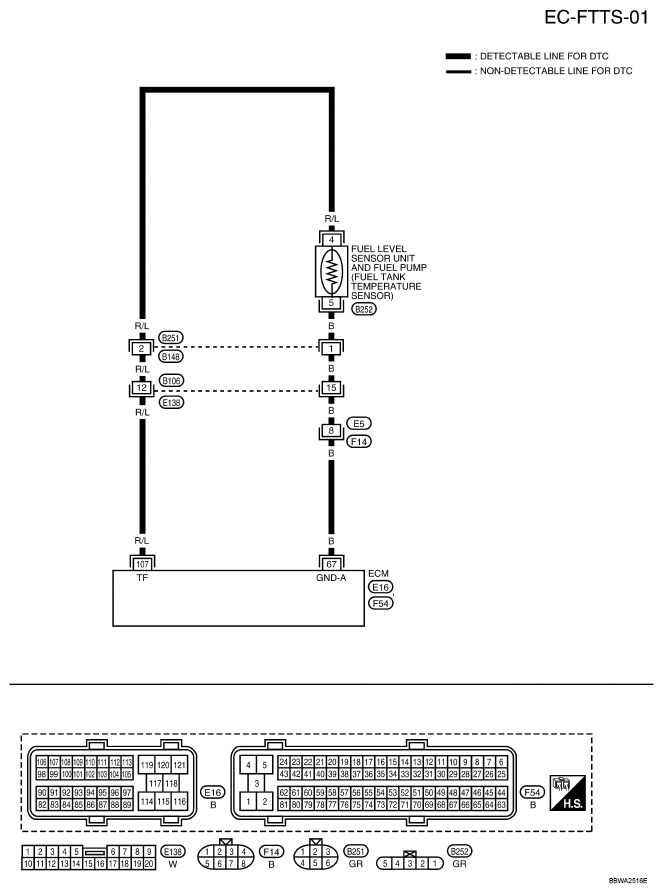

Fig 1: Wiring Diagram - EC-FTTS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
