Engine Control Component Parts/Control Systems Application
WARNING:
This page is about a different variant/trim than selected.

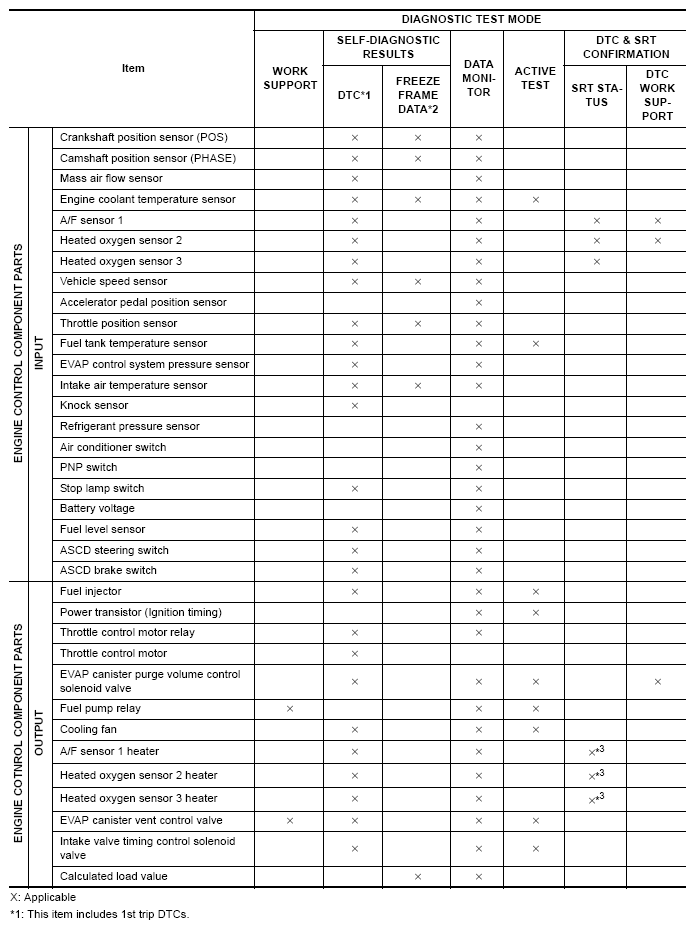

Fig 1: Engine Control Components Application Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
