DTC P1122 Electric Throttle Control Function: Wiring Diagram

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

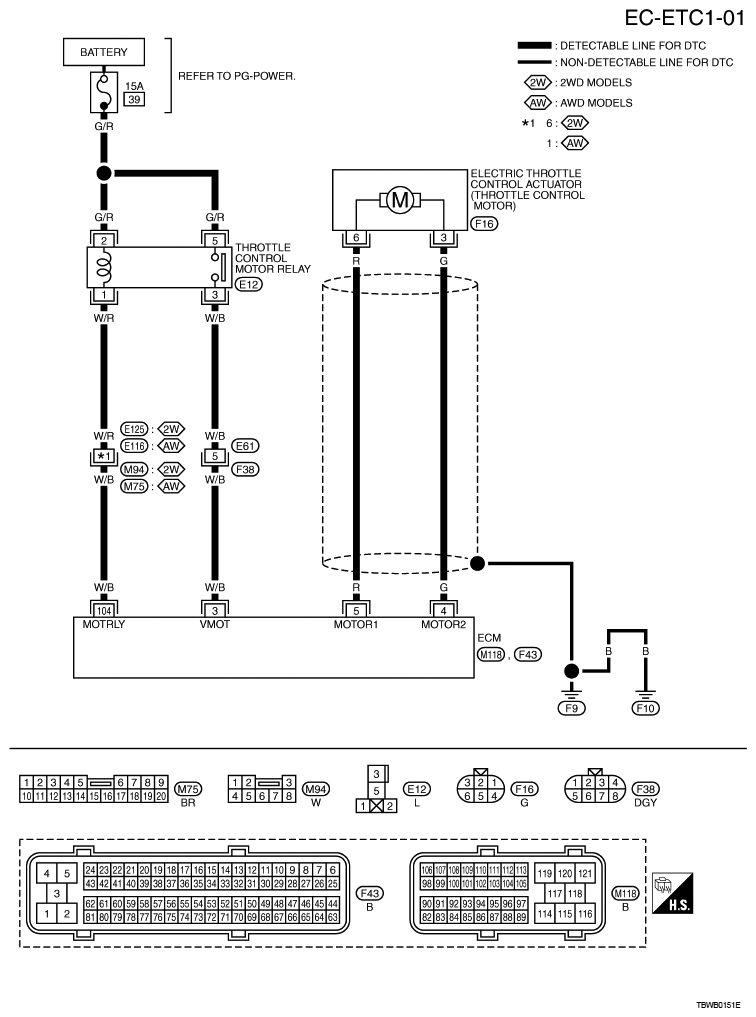

Fig 1: Wiring Diagram - EC-ETC1-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ITEM CONDITION CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

W/B

Throttle control motor power supply

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

Throttle control motor (Close)

[Ignition switch: ON]

Engine stopped
Shift lever: D (A/T), 1ST (M/T)
Accelerator pedal: Fully released

0 - 14V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

Throttle control motor (Open)

[Ignition switch: ON]

Engine stopped
Shift lever: D (A/T), 1ST (M/T)
Accelerator pedal: Fully depressed

0 - 14V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

104

W/B

Throttle control motor relay

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

[Ignition switch: ON]

0 - 1.0V

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
