Control Cable Components

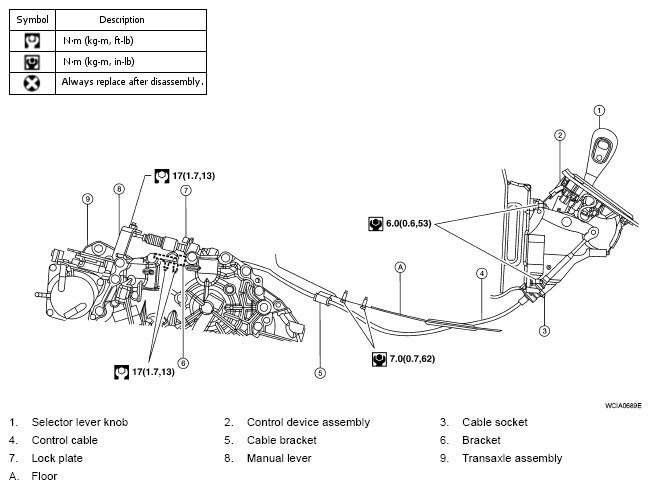

Fig 1: Control Cable Replacement Components With Torque Specifications

G04927103
