Disassembly and Assembly: Notes

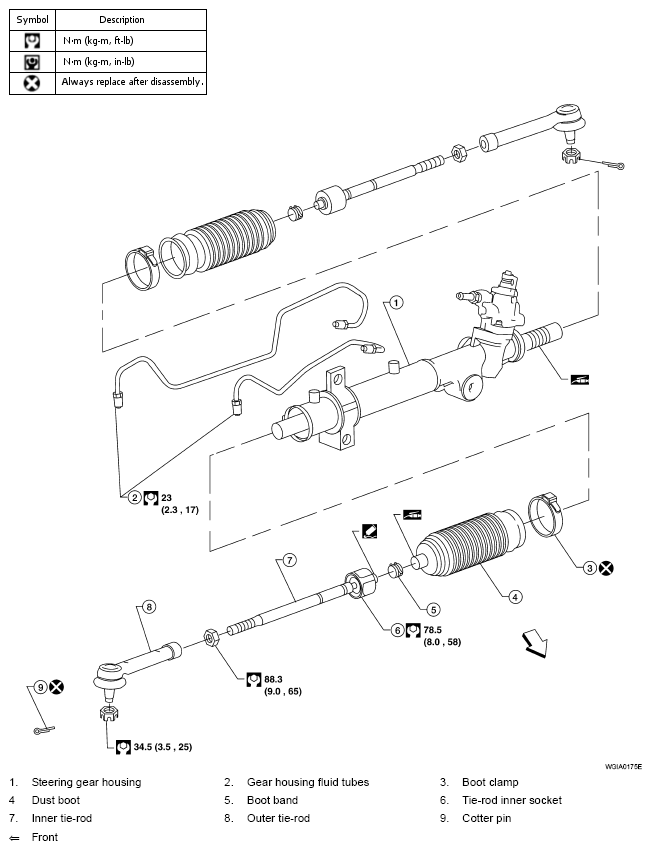

Fig 1: Exploded View Of Power Steering Gear Components With Torque Specifications
G04906876Courtesy of NISSAN MOTOR CO., U.S.A.
