Engine Control Component Parts/Control Systems Application

WARNING: This page is about a different variant/trim than selected.

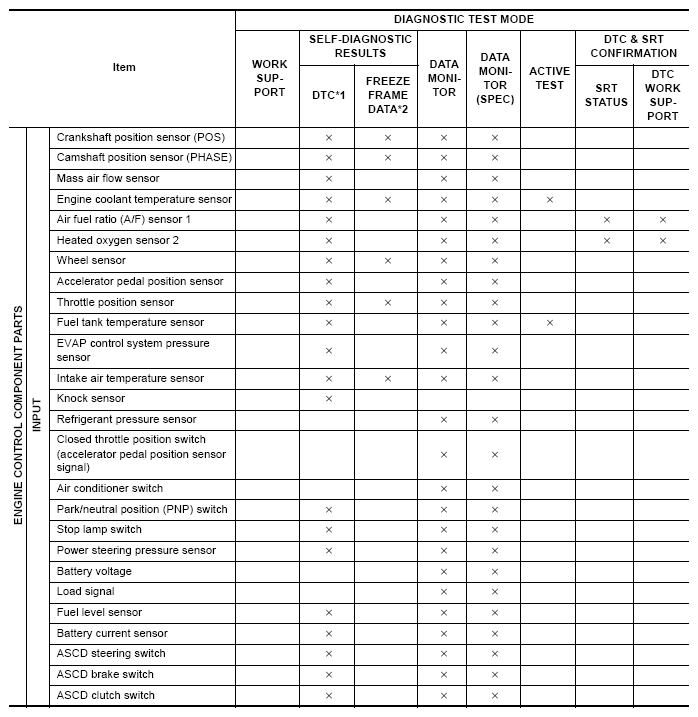

Fig 1: Identifying Engine Control Component Chart (1 Of 2)
G04895387Courtesy of NISSAN NORTH AMERICA, INC.

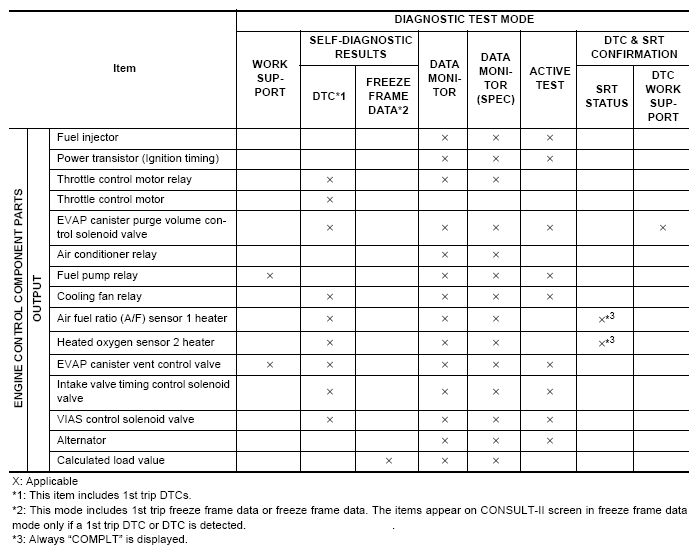

Fig 2: Identifying Engine Control Component Chart (2 Of 2)
G04895388Courtesy of NISSAN NORTH AMERICA, INC.
