Exploded View

For removal and installation, go to REMOVAL AND INSTALLATION .

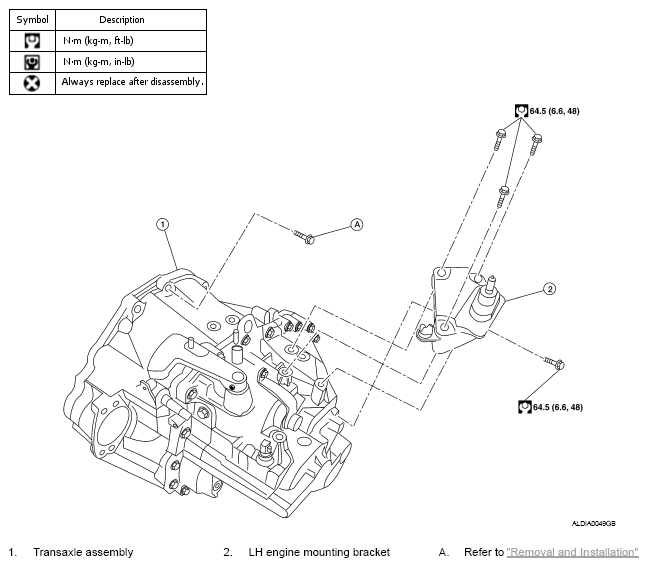

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications
G04888854
