Final Drive: Components

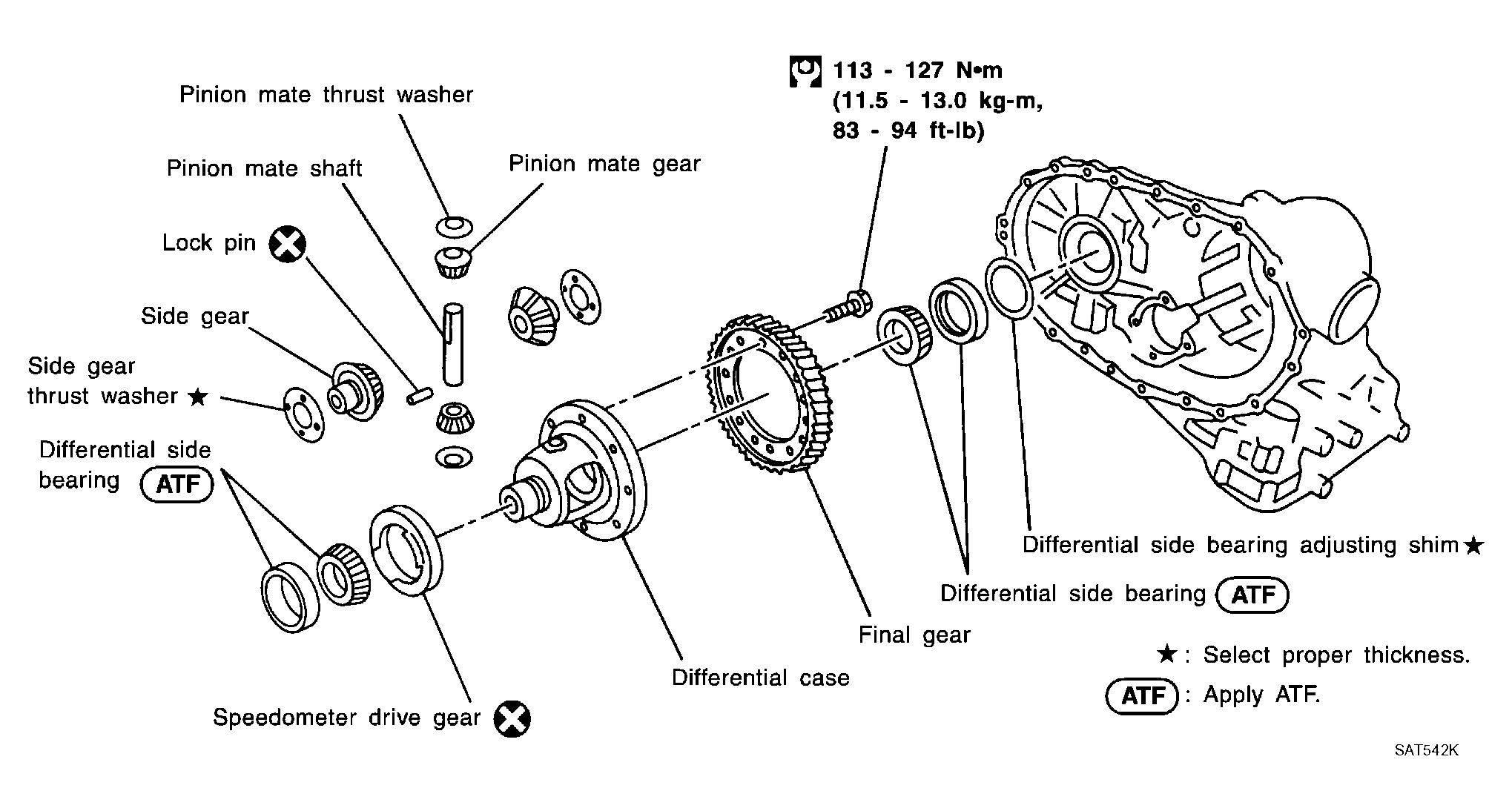

Fig 1: Final Drive Replacement Components With Torque Specifications
G04194315Courtesy of NISSAN MOTOR CO., U.S.A.
