Control Valve Lower Body: Components

Apply ATF to all components before installation  .

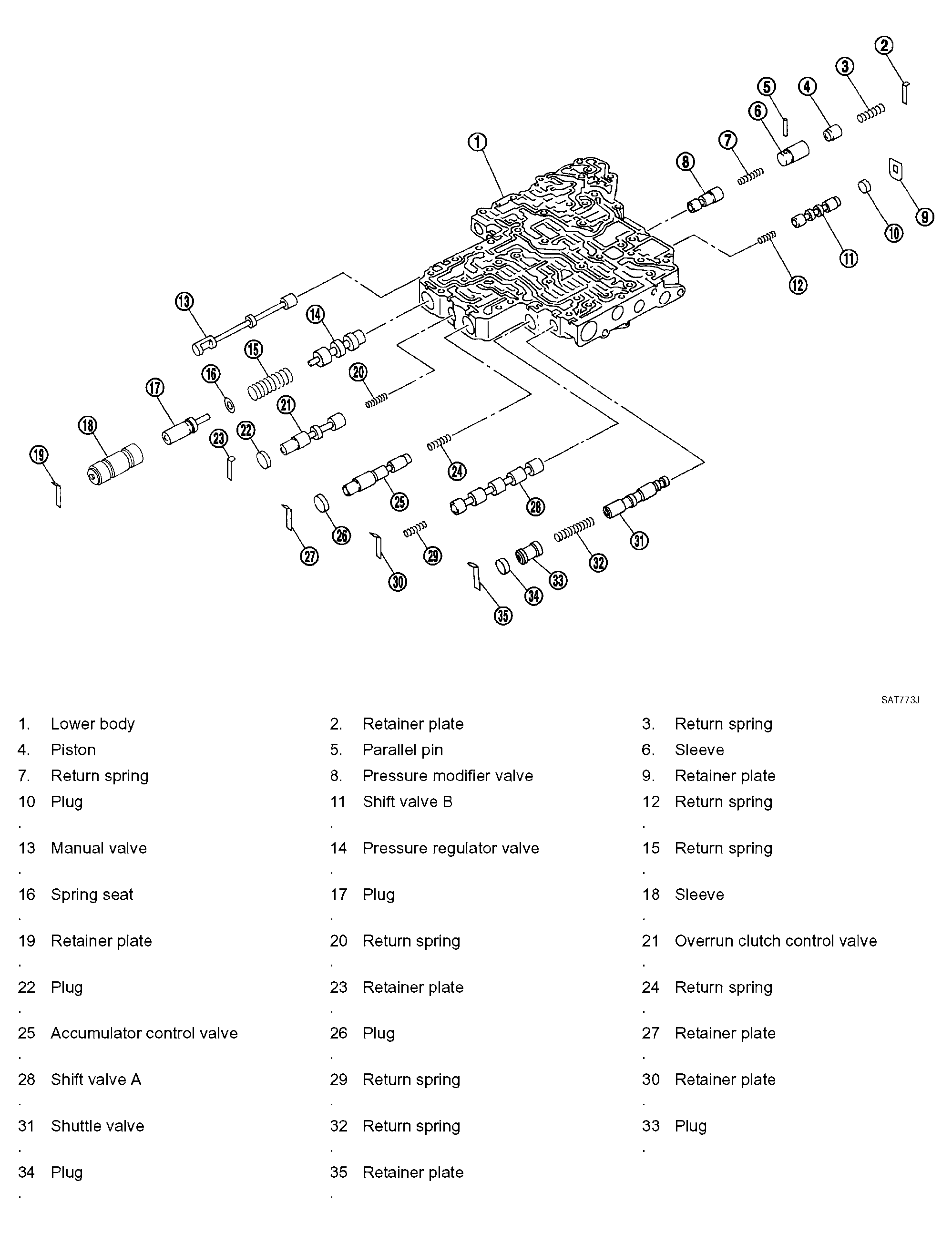

Fig 1: Exploded View Of Control Valve Lower Body
G04194185Courtesy of NISSAN MOTOR CO., U.S.A.
