Support Bearing

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove dust shield.

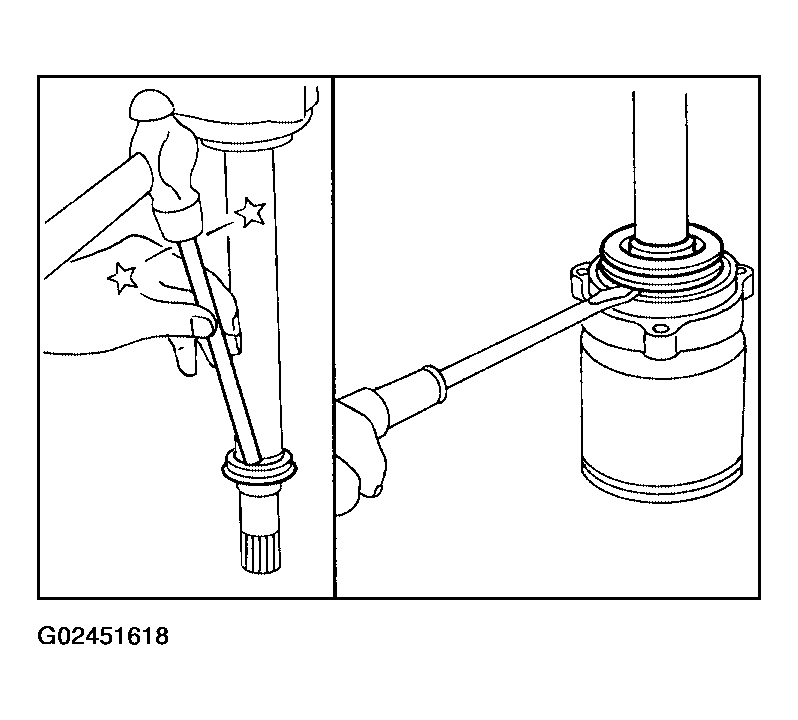

    Fig 1: Removing Dust Shield
    G02451618Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove snap ring.
    Fig 2: Removing Snap Ring
    G02451619Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Press support bearing assembly off drive shaft.
    Fig 3: Pressing Support Bearing Assembly Off Drive Shaft
    G02451620Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove snap ring.
  5. Remove dust shield.
  6. Separate support bearing from retainer.
    Fig 4: Separating Support Bearing From Retainer
    G02451621Courtesy of NISSAN MOTOR CO., U.S.A.
