Control Valve Upper Body: Assembly: Notes

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Lay control valve body down when installing valves. Do not stand the control valve body upright.

Fig 1: Installing Valves
Courtesy of NISSAN MOTOR CO., U.S.A.

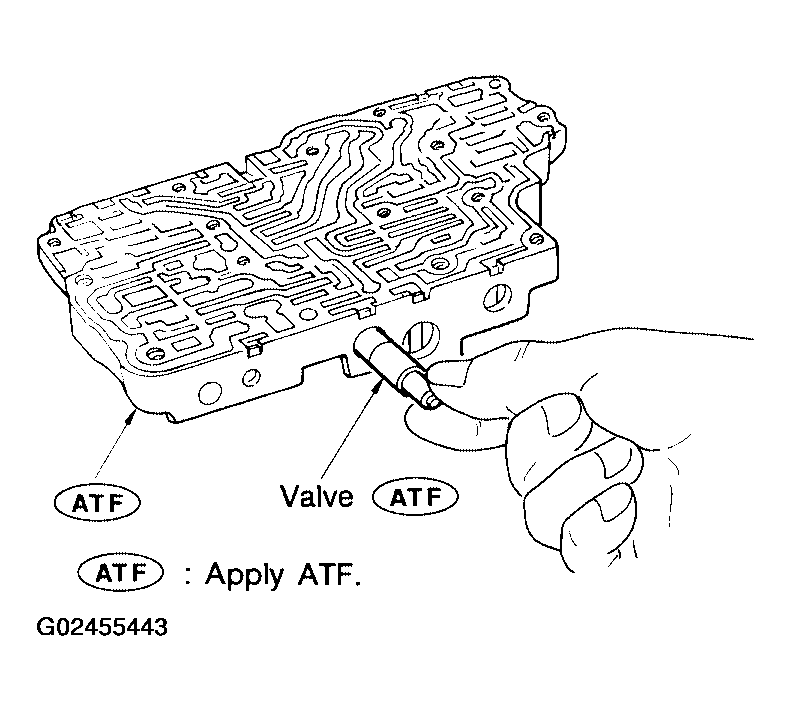

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.

Fig 2: Lubricating Control Valve Body
Courtesy of NISSAN MOTOR CO., U.S.A.
- Be careful not to scratch or damage valve body.

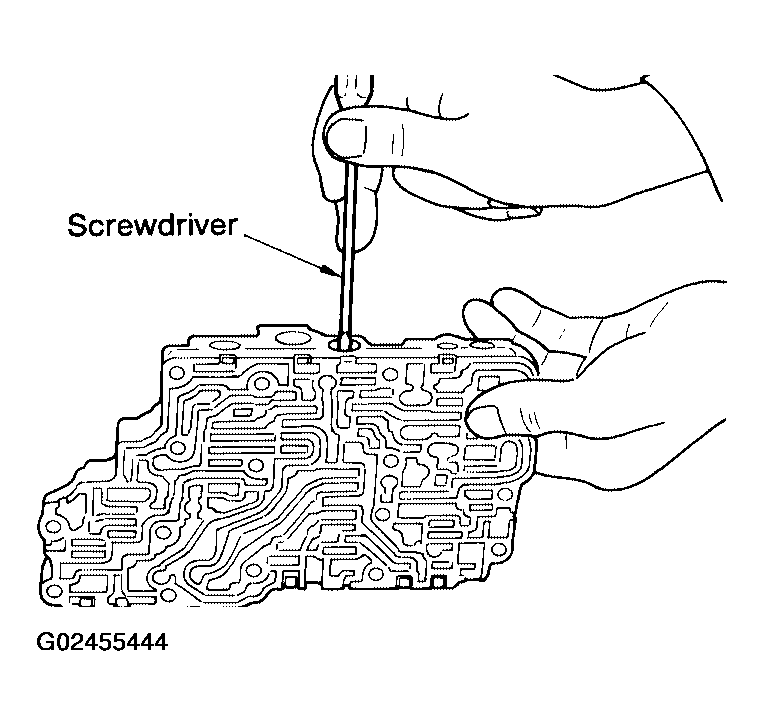

- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.
Fig 3: Inserting Valves Into Proper Positions
