Worksheet Sample

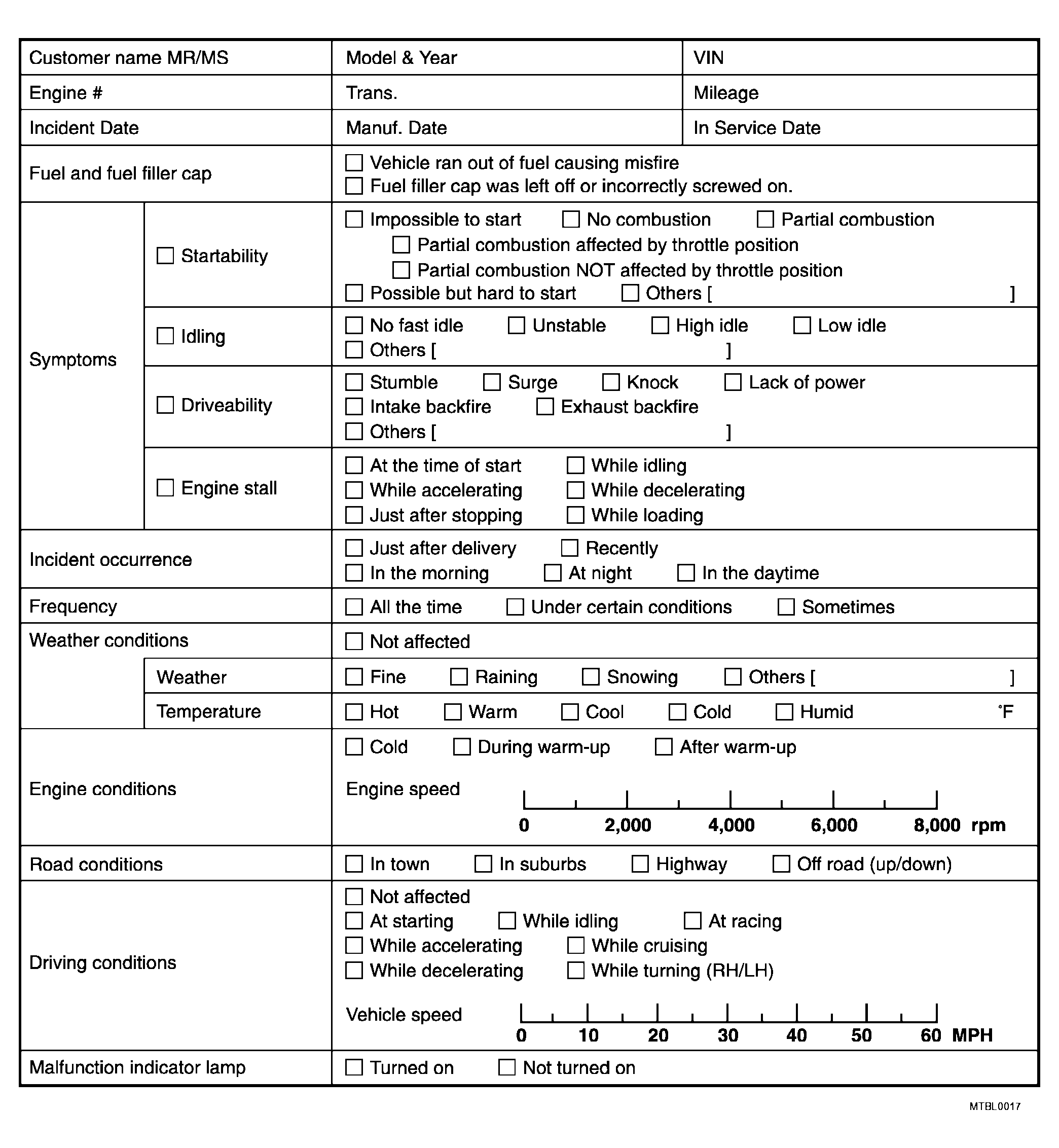

Fig 1: Identifying Worksheet Sample

G04191612

Courtesy of NISSAN MOTOR CO., U.S.A.
