Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten engine two screws on the body.

      Refer to "GROUND INSPECTION ".

    Fig 1: Locating M28 & M54 Body Ground Screws
    G04166617Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  2.

    NG: Repair or replace ground connections.

  2. RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

    Loosen and retighten the air fuel ratio (A/F) sensor 1.

    Tightening torque: 40 - 60 N-m (4.1 - 6.1 kg-m, 30 - 44 ft-lb)

    : GO TO  3.

    Fig 2: Identifying Air Fuel Ratio (A/F) Sensor
    G04192221Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK FOR INTAKE AIR LEAK
    1. Start engine and run it at idle.
    2. Listen for an intake air leak after the mass air flow sensor.

    OK or NG

    OK: GO TO  4.

    NG: Repair or replace.

  4. CLEAR THE SELF-LEARNING DATA.

With CONSULT-II

  1. Start engine and warm it up to normal operating temperature.
  2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.
  3. Clear the self-learning control coefficient by touching "CLEAR".
  4. Run engine for at least 10 minutes at idle speed.

    Is the 1st trip DTC P0171 or P0172 detected? Is it difficult to start engine?

    Fig 3: Consult-II WORK SUPPORT Display Screen
    G04147281Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor harness connector, and restart and run engine for at least 5 seconds at idle speed.
    4. Fig 4: Disconnecting Mass Air Flow Sensor Harness Connector
      G04192223Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Stop engine and reconnect mass air flow sensor harness connector.
    6. Make sure DTC P0102 is displayed.
    7. Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ".
    8. Make sure DTC P0000 is displayed.
    9. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0171 or P0172 detected? Is it difficult to start engine?

    Yes or No

    Yes: Perform trouble diagnosis for DTC P0171 or P0172. Refer to "DTC P0171 FUEL INJECTION SYSTEM FUNCTION " or "DTC P0172 FUEL INJECTION SYSTEM FUNCTION ".

    No: GO TO  5.

  5. CHECK HARNESS CONNECTOR
    1. Turn ignition switch OFF.
    2. Disconnect A/F sensor 1 harness connector.
    3. Fig 5: Disconnecting A/F Sensor 1 Harness Connector
      G04192224Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check harness connector for water.

      Water should not exit.

    OK or NG

    OK: GO TO  6.

    NG: Repair or replace harness connector.

  6. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect A/F sensor 1 harness connector.
    3. Turn ignition switch ON.

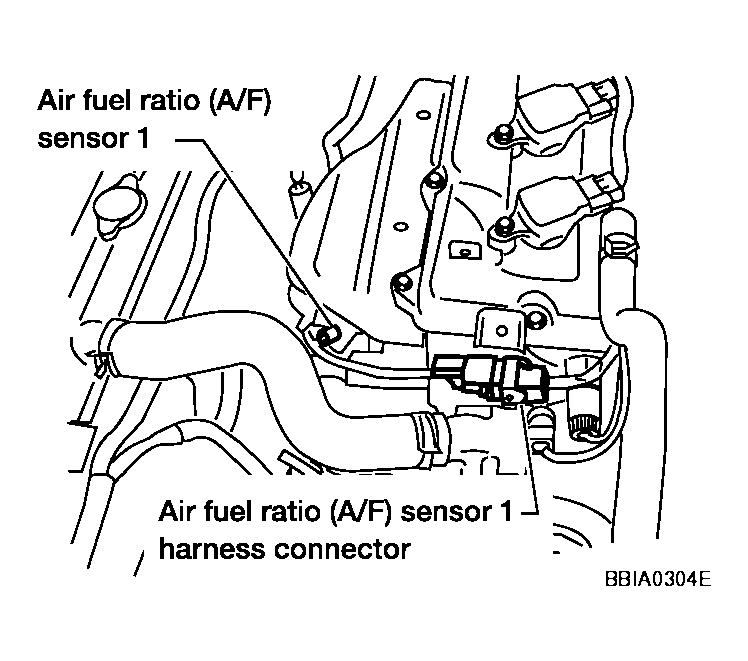

      Fig 6: Disconnecting A/F Sensor 1 Harness Connector
      G04192225Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    5. Fig 7: Checking Voltage Between Connector Terminal 3 and Ground
      G04080486Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  8.

    NG: GO TO  7.

  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M19, E108
    • Harness connectors E10, F48
    • Fuse block (J/B) connector M1
    • 15A fuse
    • Harness for open or short between A/F sensor 1 and fuse

      : Repair or replace harness or connectors.

  8. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .
      A/F SENSOR 1 & ECM TERMINAL SPECIFICATION

      A/F sensor 1 terminal ECM terminal
      1 16
      5 35
      6 56
      2 75

      Continuity should exist.

    4. Check harness continuity between ECM terminals 16, 35, 56, 75 or A/F sensor 1 terminals 1, 2, 5, 6 and ground. Refer to WIRING DIAGRAM .

      Continuity should not exist.

    5. Also check harness for short to power.

    OK or NG

    OK: GO TO  9.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK A/F SENSOR 1 HEATER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  10.

    NG: GO TO  11.

  10. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    OK: GO TO  11.

    NG: Repair or replace.

  11. REPLACE AIR FUEL RATIO (A/F) SENSOR 1

    Replace air fuel ratio (A/F) sensor 1.

    CAUTION:
    • Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
    • Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

      : INSPECTION END
