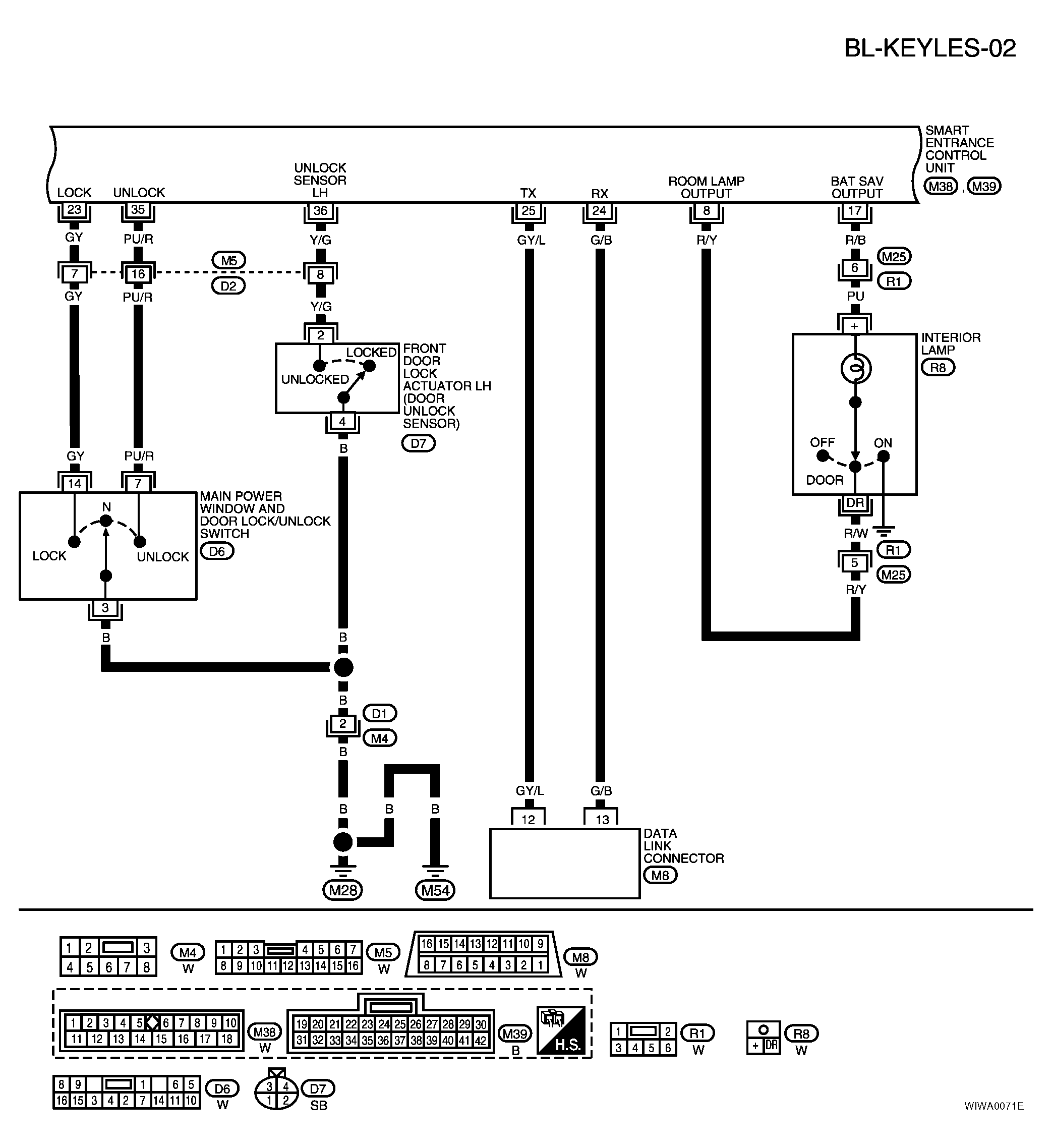

Fig. 2
SMART ENTRANCE CONTROL UNIT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND
TERMINALS SPECIFICATION CHART
| TERMINAL | WIRE COLOR | ITEM | CONDITION | DATA (DC) |
|---|---|---|---|---|
| 8 | R/Y | INTERIOR LAMP | LAMP SWITCH IN DOOR POSITION | 12V |
| 17 | R/B | BATTERY SAVER (INTERIOR LAMP) | BATTERY SAVER DOES NOT OPERATE | 12V |
| BATTERY SAVER OPERATES | 0V | |||
| 23 | GY | DOOR LOCK & UNLOCK SWITCHES | NEUTRAL | 5V |
| LOCKS | 0V | |||
| 35 | PU/R | DOOR LOCK & UNLOCK SWITCHES | NEUTRAL | 5V |
| UNLOCKS | 0V | |||
| 36 | Y/G | DOOR UNLOCK SENSOR LH | DRIVER DOOR: LOCKED | 5V |
| DRIVER DOOR: UNLOCKED | 0V |
