Removal and Installation: Notes

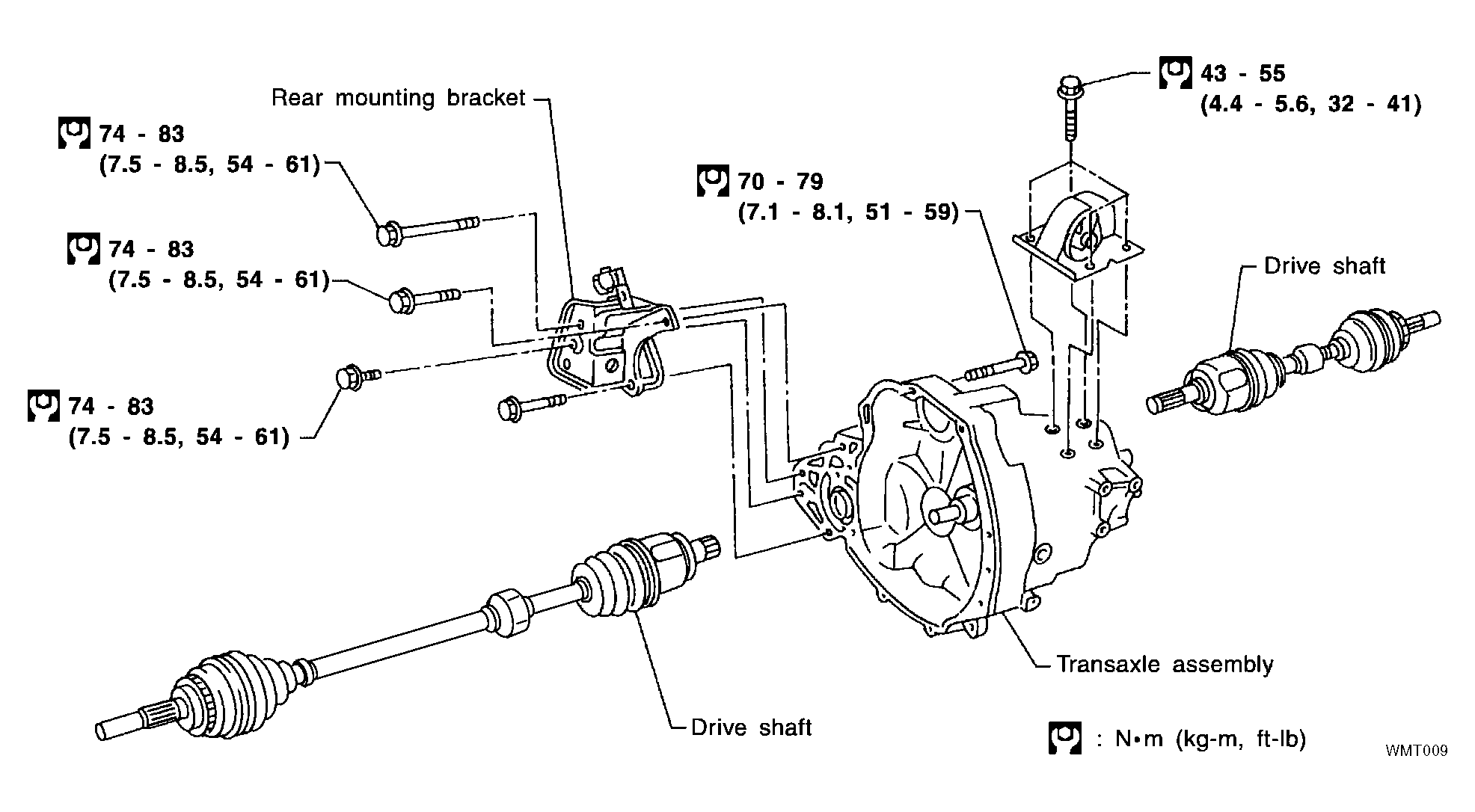

Fig 1: Transaxle Assembly With Torque Specifications
G04192440Courtesy of NISSAN MOTOR CO., U.S.A.
