Gear Components

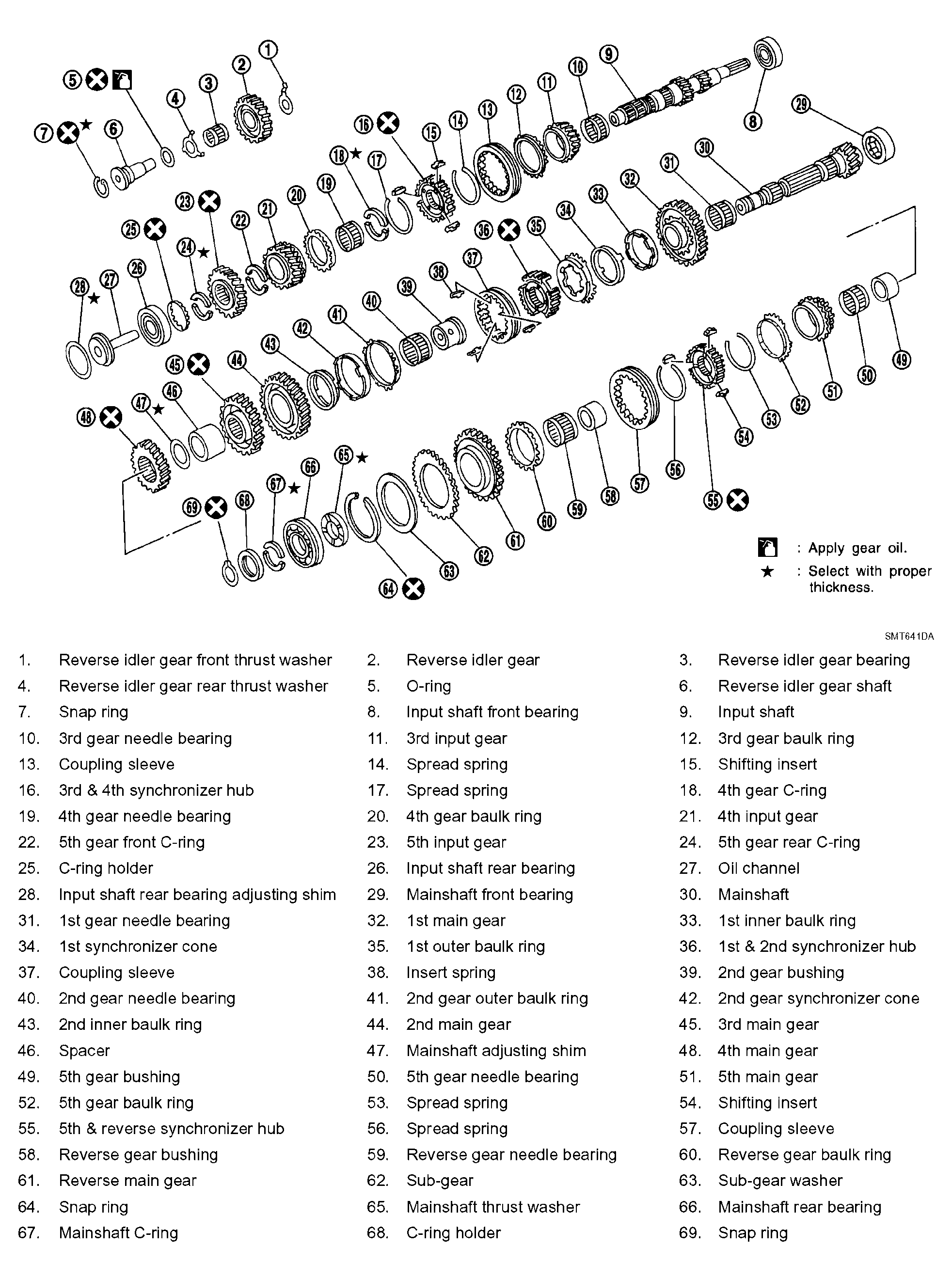

Fig 1: Exploded View Of Gear Components

G04192451

Courtesy of NISSAN MOTOR CO., U.S.A.
