Engine Control System - Introduction
>>
Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Sequence

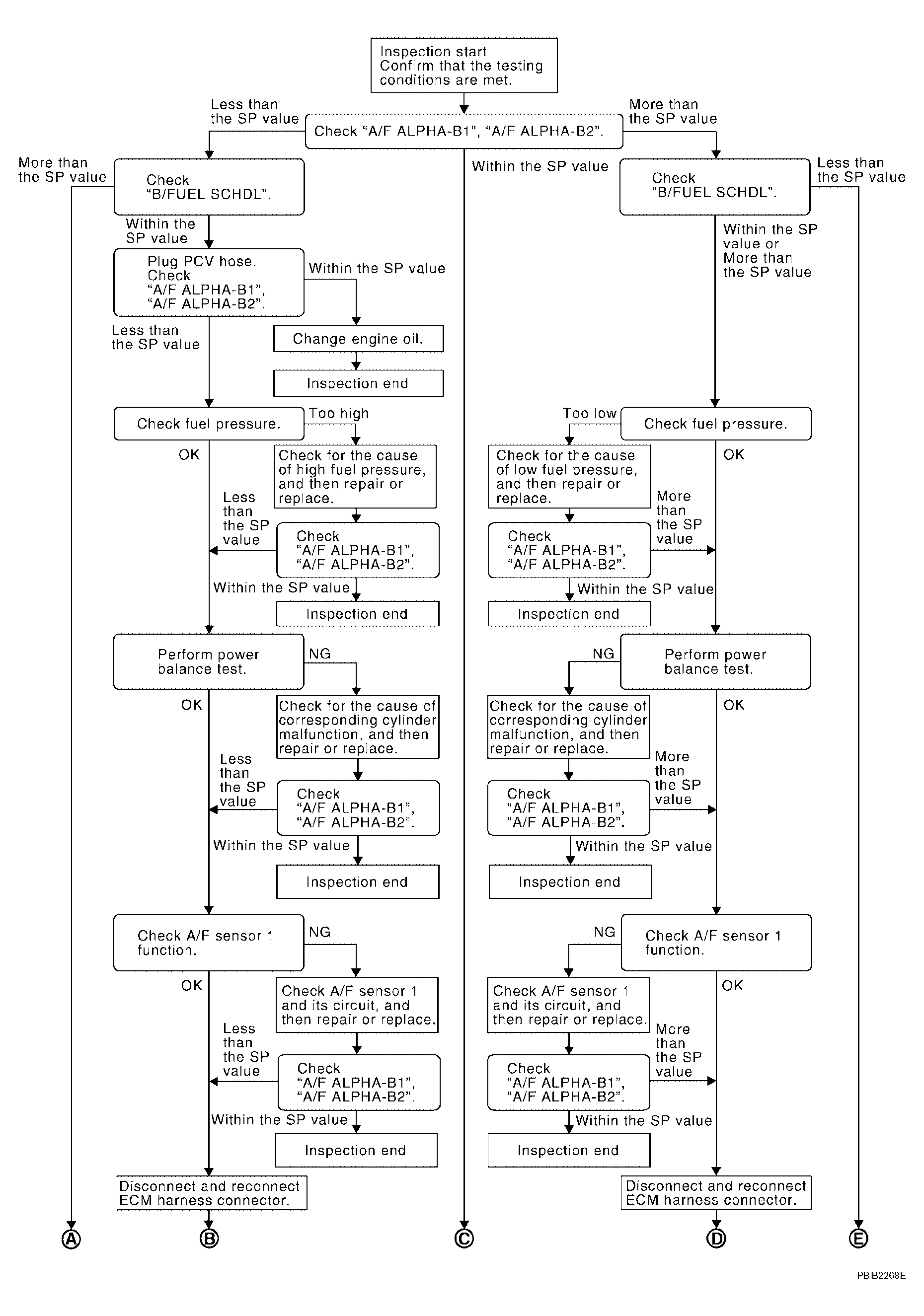

Fig 1: Overall Sequence Diagnostic Flow Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

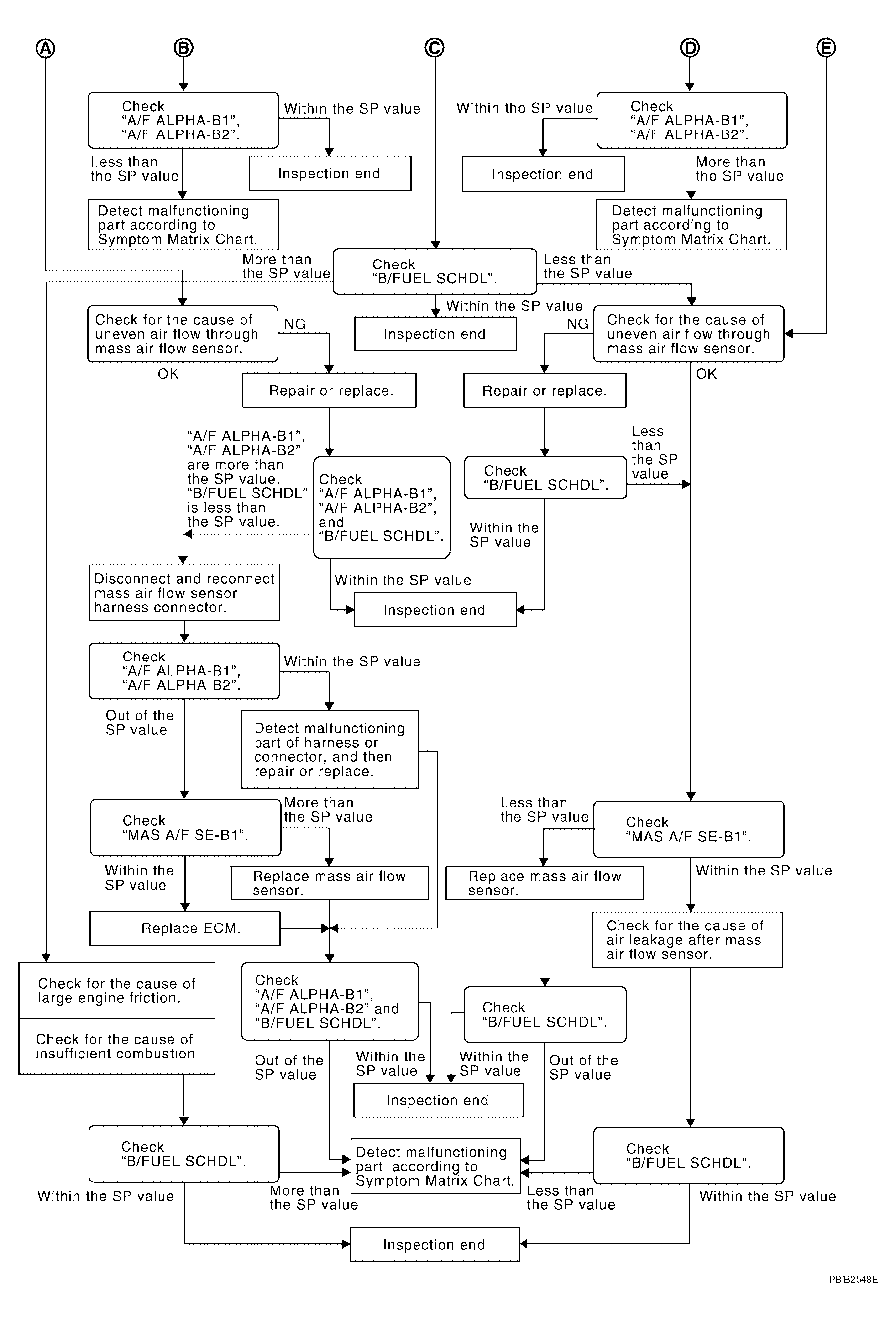

Fig 2: Overall Sequence Diagnostic Flow Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
