ASCD Indicator: Wiring Diagram

For PG, go to SYSTEM WIRING DIAGRAMS .

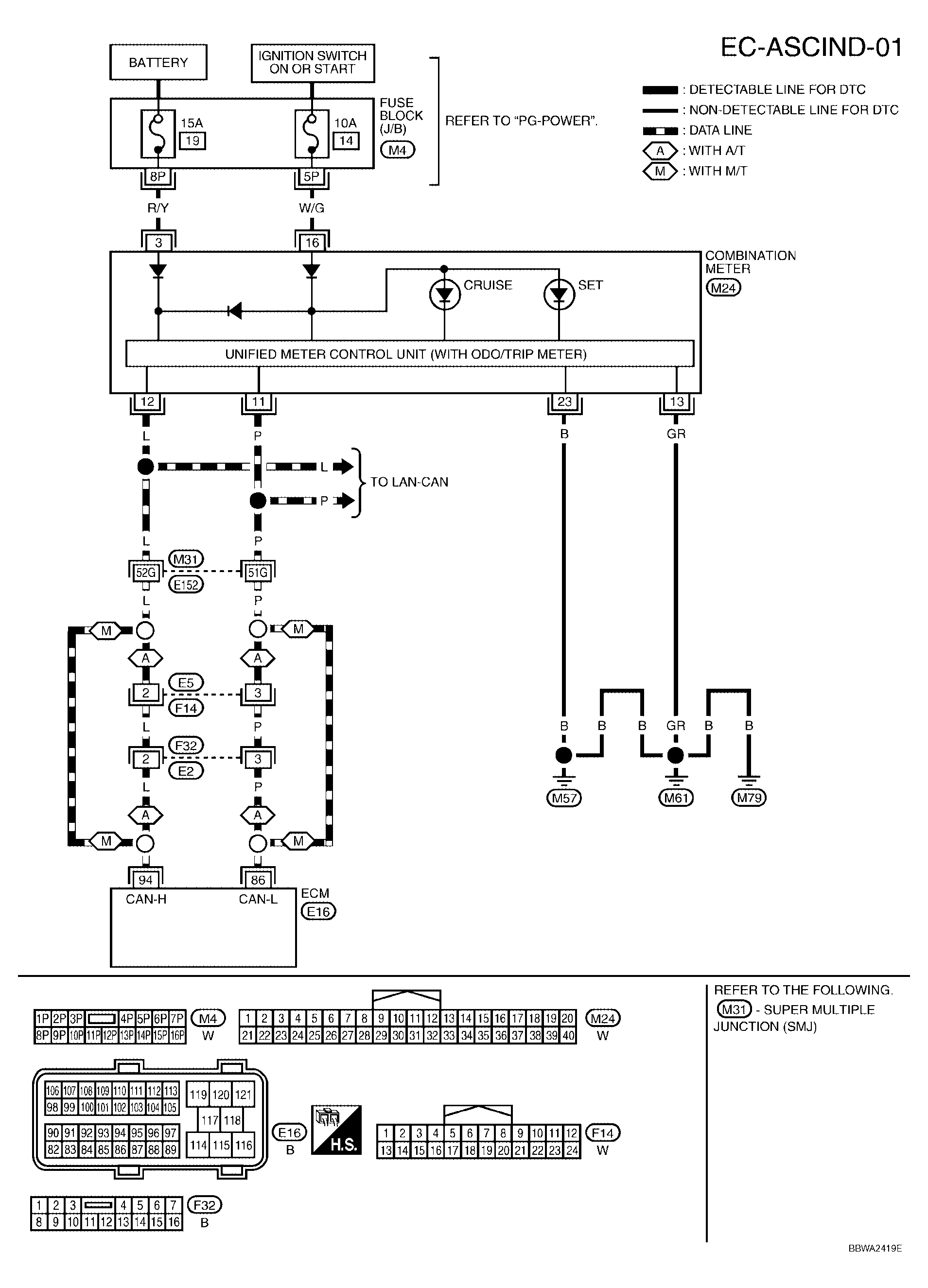

Fig 1: EC-ASCIND-01 - Wiring Diagram
G04147751Courtesy of NISSAN MOTOR CO., U.S.A.
