Fluid Leakage And Fluid Level

  1. Check for any fluid leaks from the transfer assembly or around it and correct as necessary.
  2. Remove the filler plug to check the fluid level at the filler plug hole as shown.
    CAUTION: Do not start the engine while checking the fluid level.
  3. Install the new gasket on the filler plug and install the filler plug in the transfer. Tighten the filler plug to specification.

    Filler plug : Refer to " COMPONENTS  "  .

    CAUTION: Do not reuse the gasket.

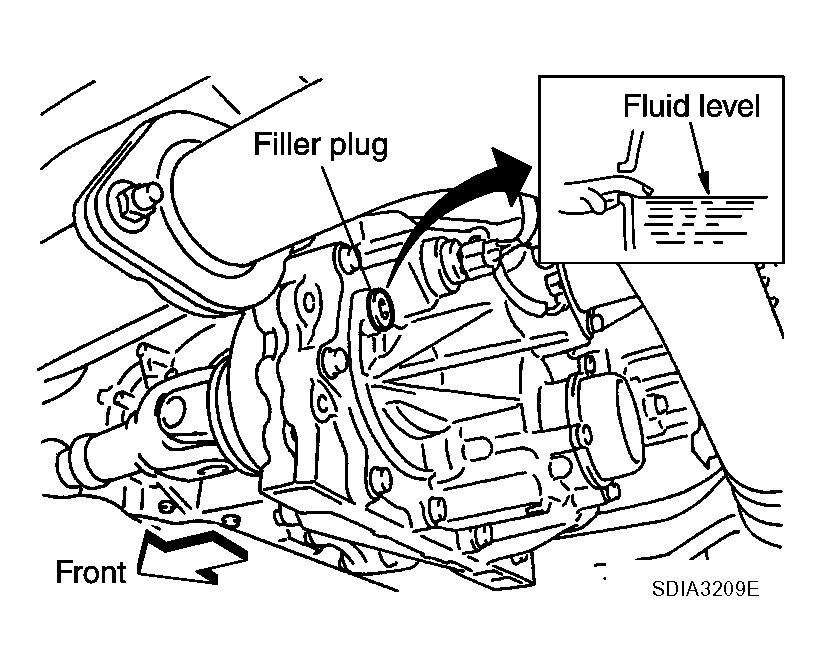

    Fig 1: Identifying Filler Plug & Checking Fluid Level
    G04210854Courtesy of NISSAN MOTOR CO., U.S.A.
