Triple-Cone Synchronizer

Triple cone synchronizer is adopted for 2nd gear to reduce operating force of the shift lever.

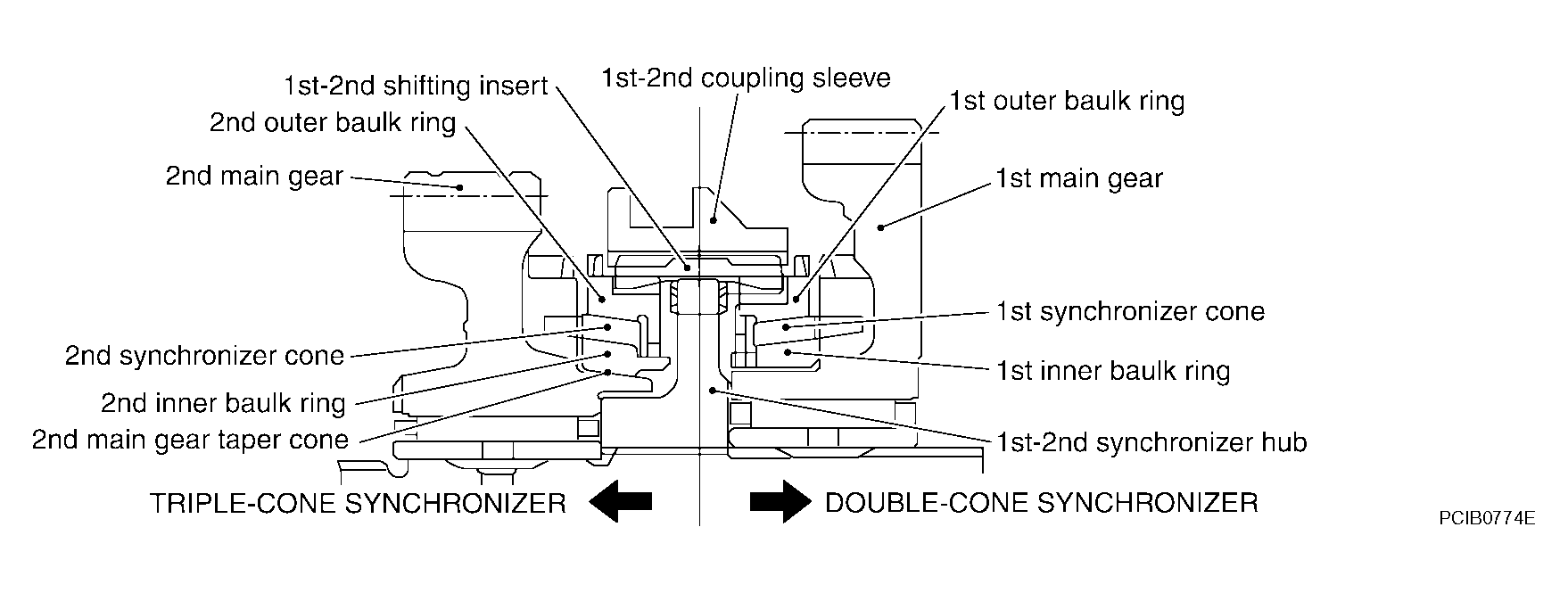

Fig 1: Identifying Triple-Cone Synchronizer
G04167735Courtesy of NISSAN MOTOR CO., U.S.A.
