Cross-sectional View: Notes

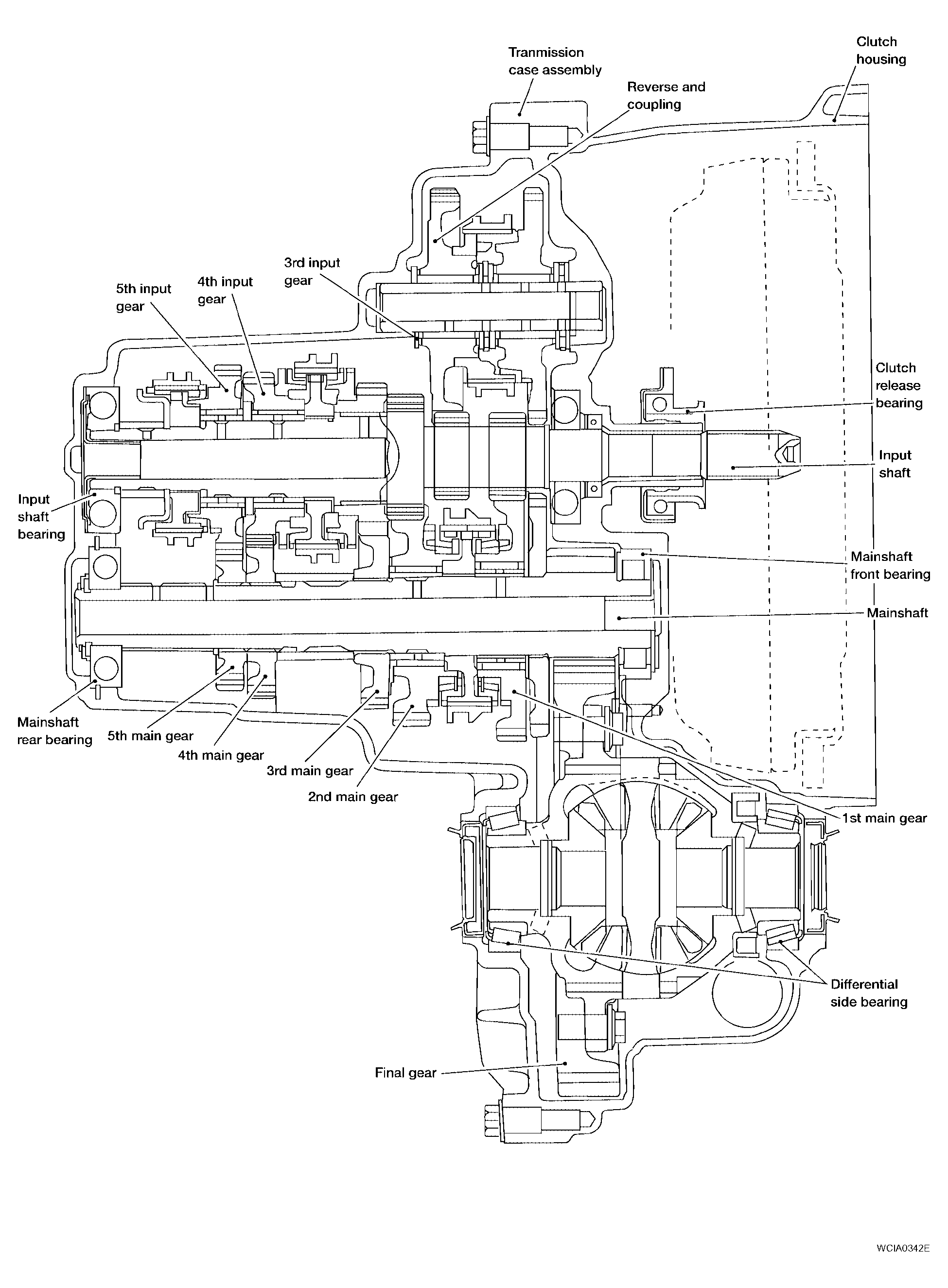

Fig 1: Cross-Sectional View - Manual Transaxle
G04167734Courtesy of NISSAN MOTOR CO., U.S.A.
