Disassembly and Assembly: Notes

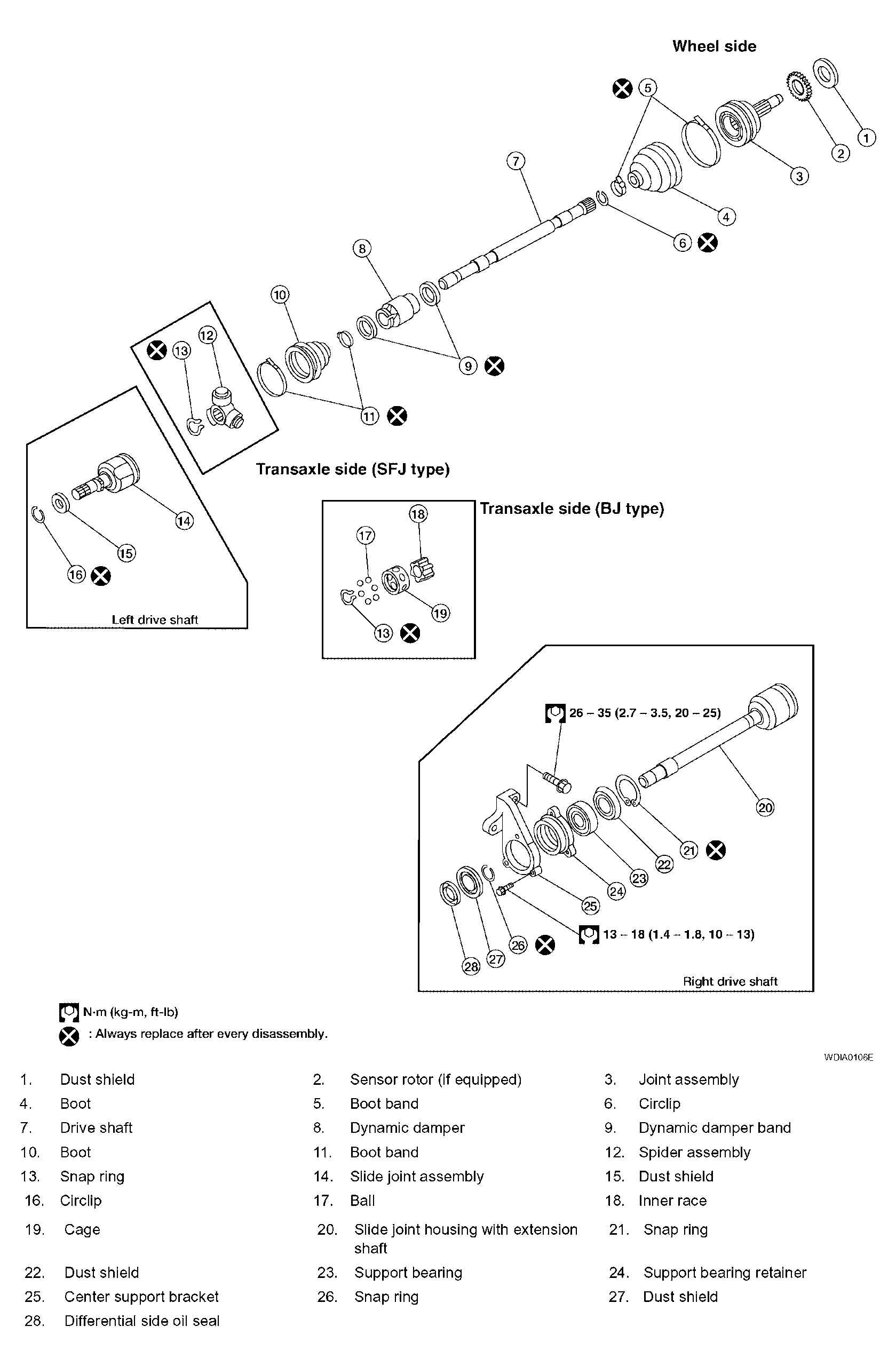

Fig 1: Disassembling/Assembling Front Drive Shaft (With Specifications)
G04169554Courtesy of NISSAN MOTOR CO., U.S.A.
