Can Communication: Schematic

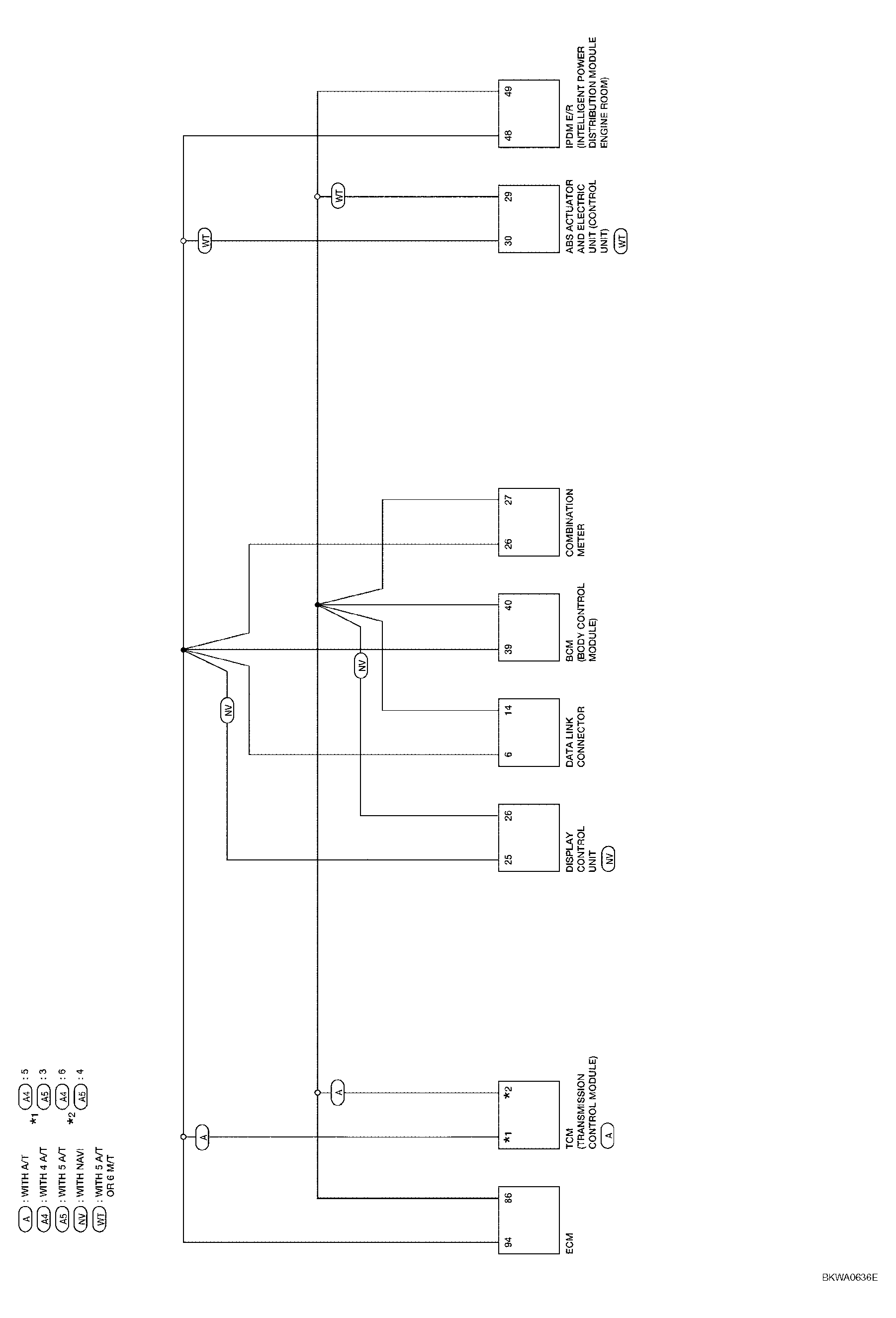

Fig 1: CAN Communication Schematic Diagram

G04171304

Courtesy of NISSAN MOTOR CO., U.S.A.
