Final Drive: Components

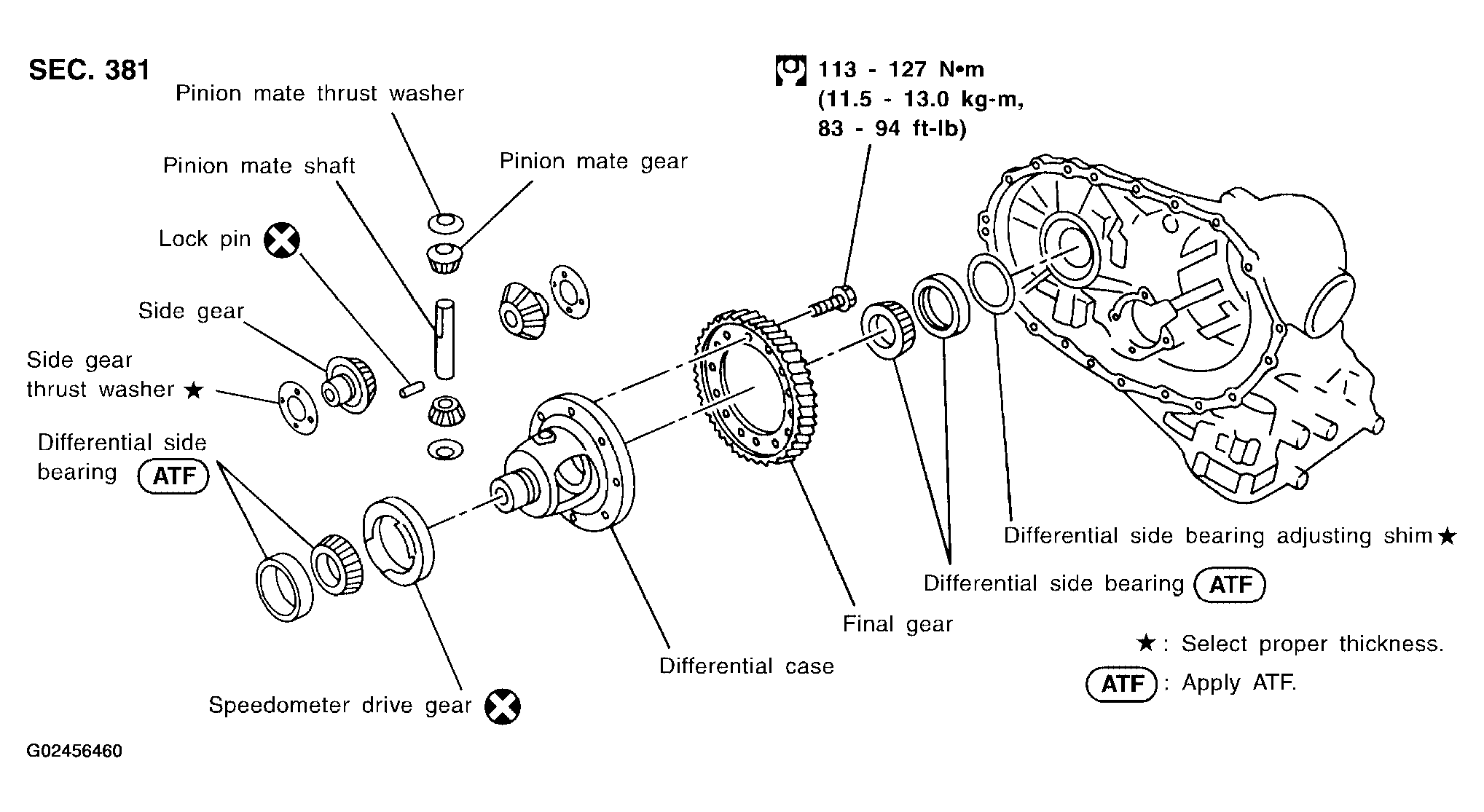

Fig 1: Removing Differential Components With Torque Specifications
G02456460Courtesy of NISSAN MOTOR CO., U.S.A.
