Control Valve Assembly: Components

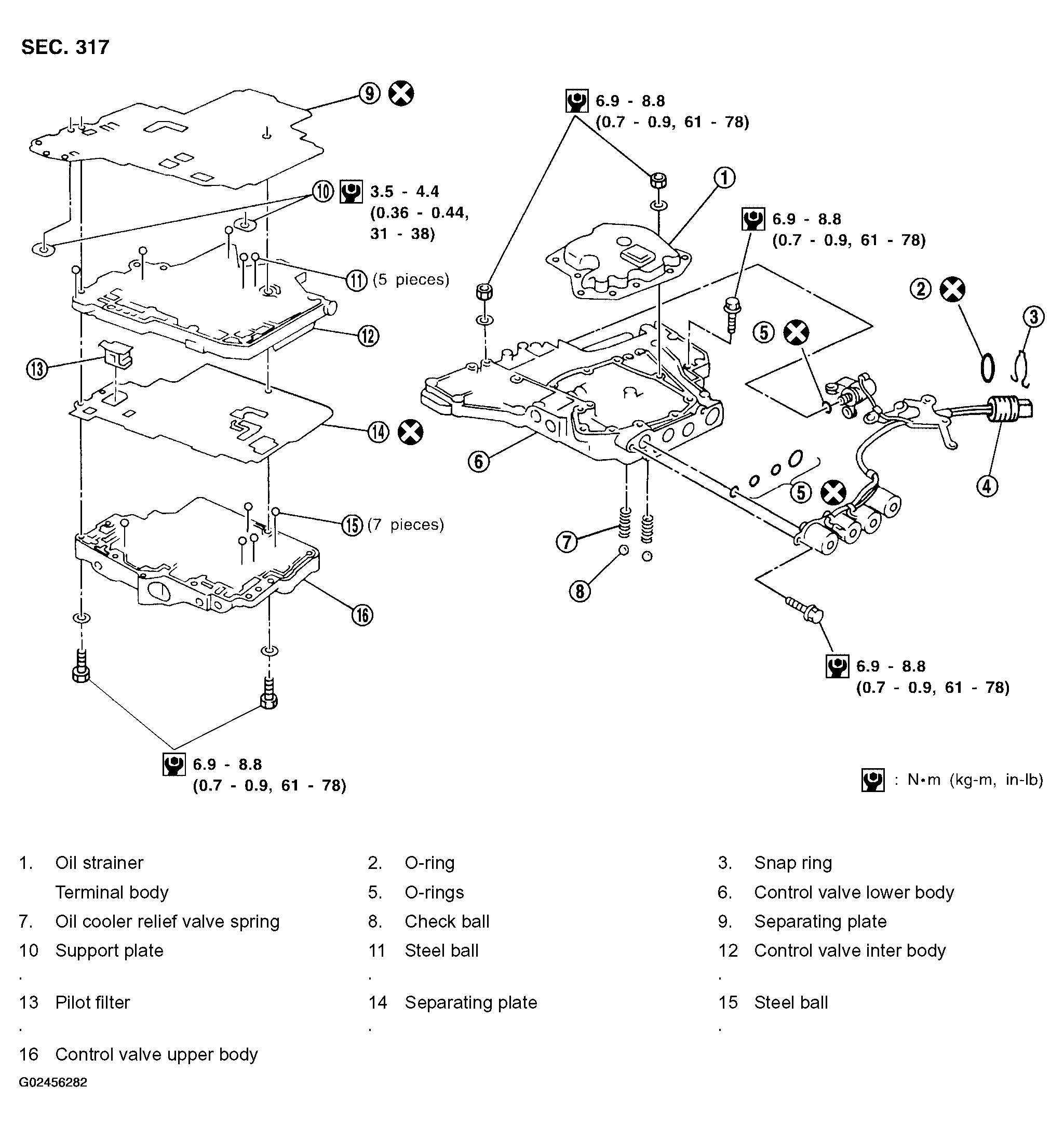

Fig 1: Exploded View Of Control Valve Assembly With Torque Specifications
G02456282Courtesy of NISSAN MOTOR CO., U.S.A.
