Control Valve Assembly and Accumulators: Installation
Set manual shaft in Neutral, then align manual plate with groove in manual valve.
After installing control valve assembly, make sure that selector lever can be moved to all positions.

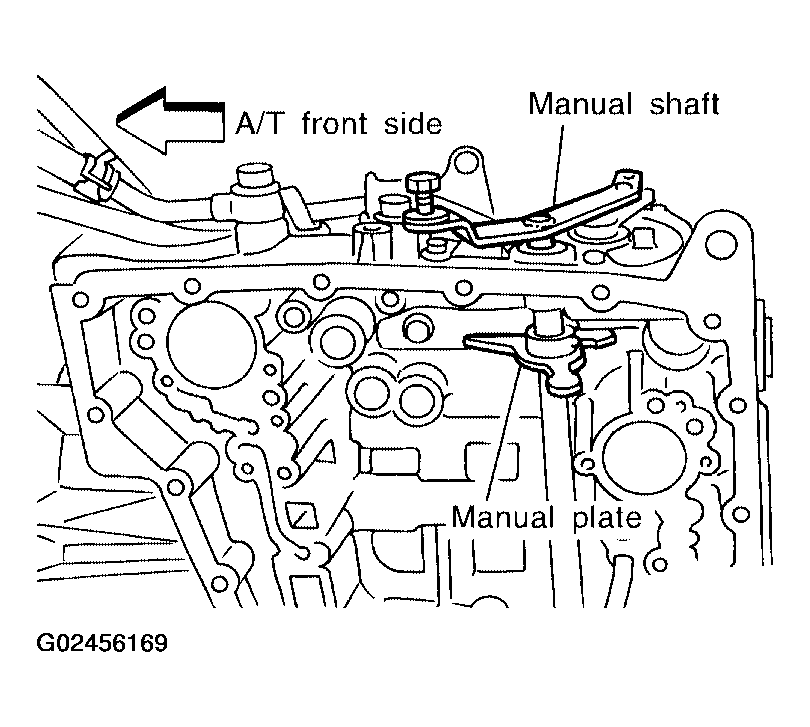

Fig 1: Aligning Manual Plate With Groove In Manual Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
