DTC P0507: ISC System
>>
On Board Diagnosis Logic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
On Board Diagnosis Logic

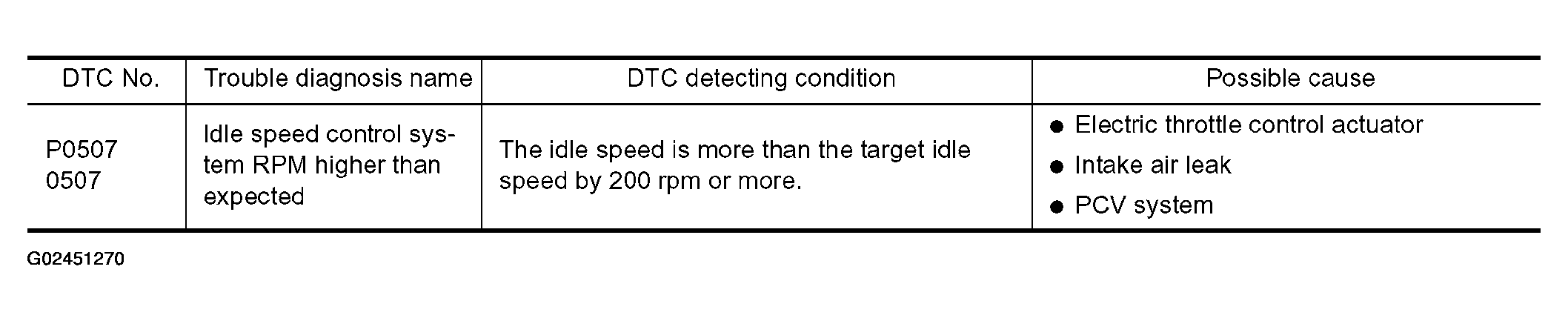

Fig 1: DTC P0507: Condition Detecting Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
