Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Driver Information System
>>
Warning Lamps
>>
Schematic
>>
With Tachometer
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With Tachometer

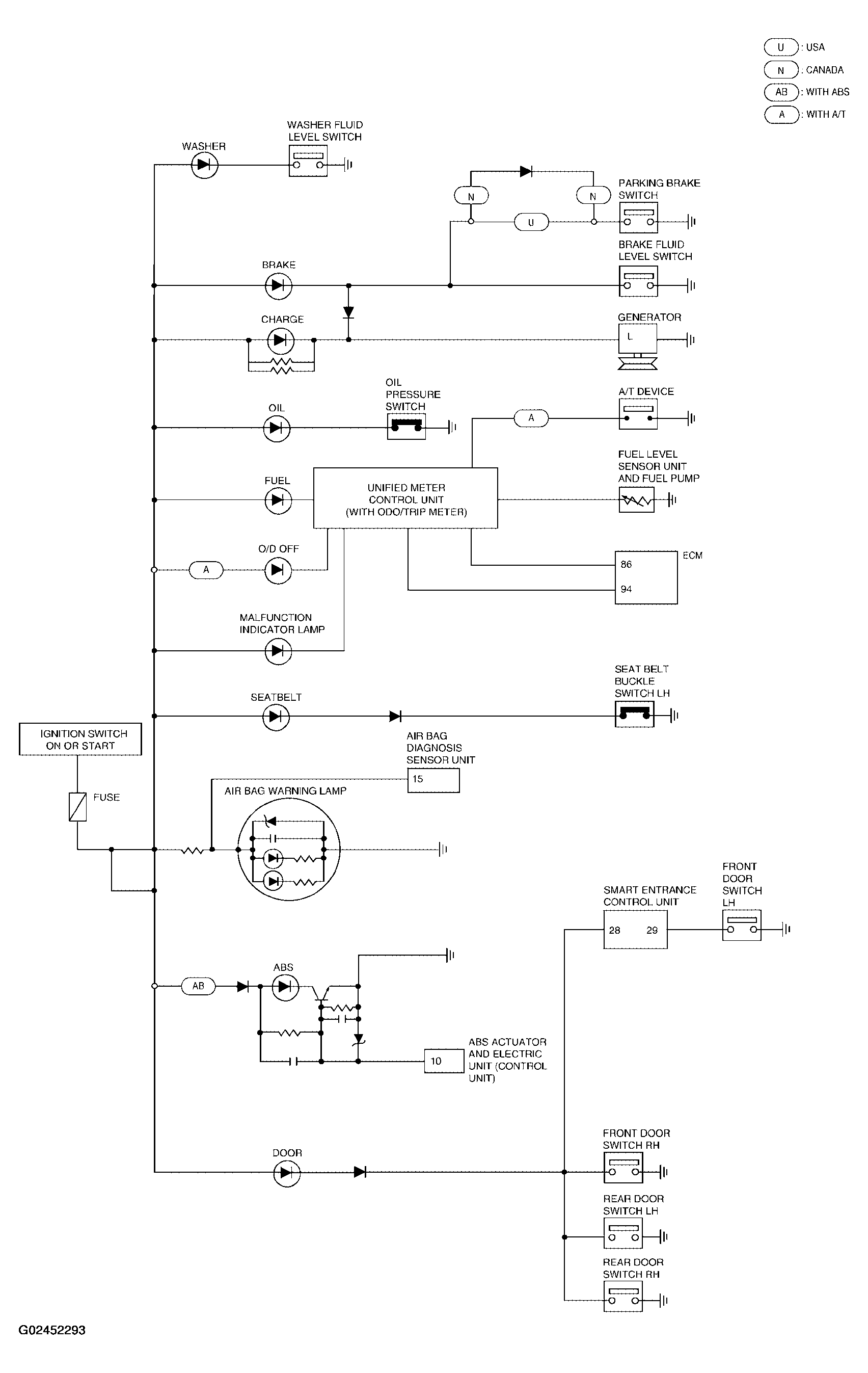

Fig 1: Warning Lamps - Schematic Diagram (With Tachometer)
Courtesy of NISSAN MOTOR CO., U.S.A.
