Nissan-Datsun
>>
2005
>>
Sentra SE-R
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Driver Information System
>>
Board Computer
>>
Wiring Diagram - B/COMP -
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagram - B/COMP -

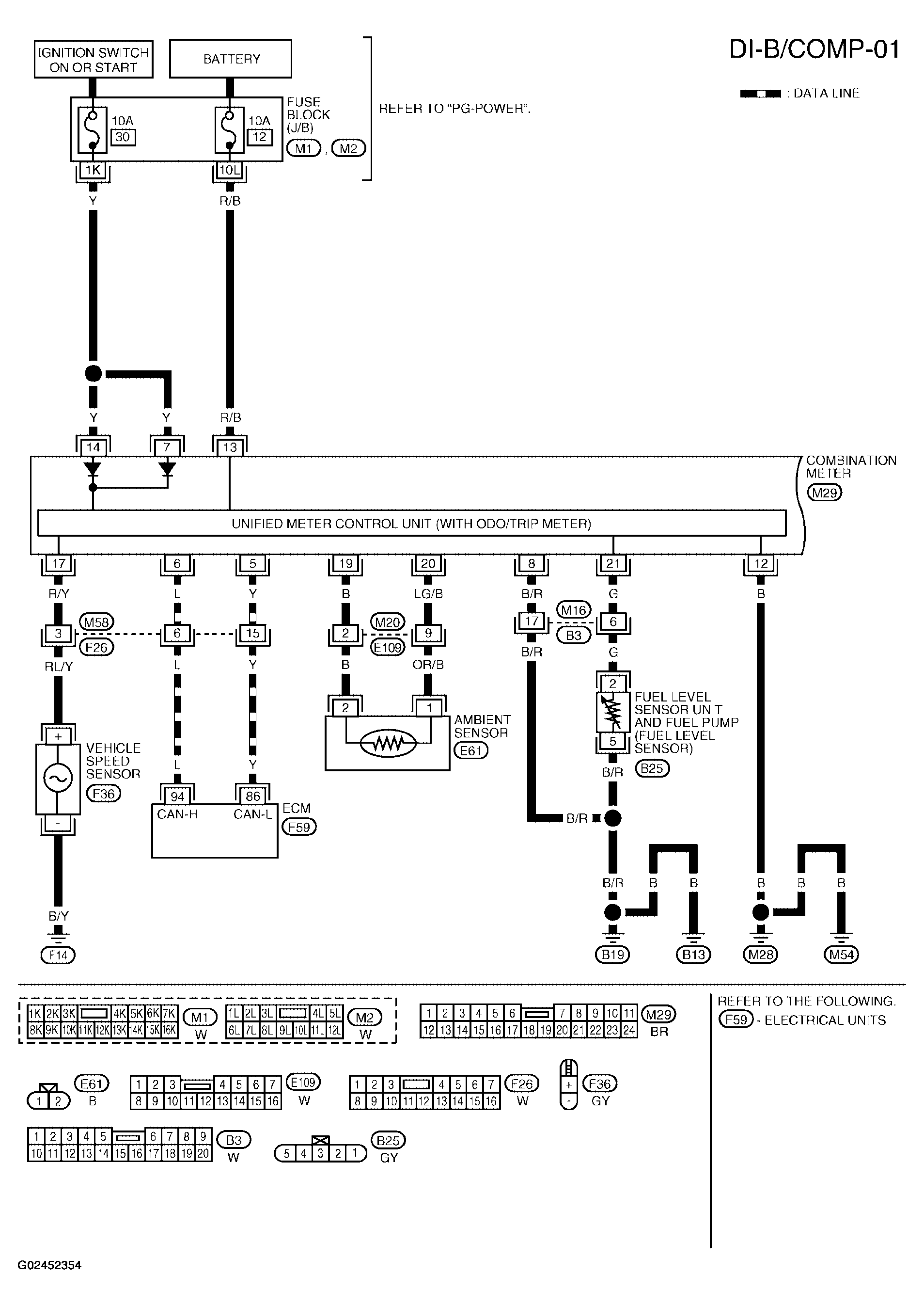

Fig 1: Wiring Diagram - DI-B/COMP-01
Courtesy of NISSAN MOTOR CO., U.S.A.
