Steering Wheel

  1. Remove air bag module. Refer to REMOVAL AND INSTALLATION .
  2. Remove steering wheel mounting nut.
  3. Remove steering wheel using Tool.
    • Tool number: ST27180001 (J25726-B)
  4. Installation is in the reverse order of removal.

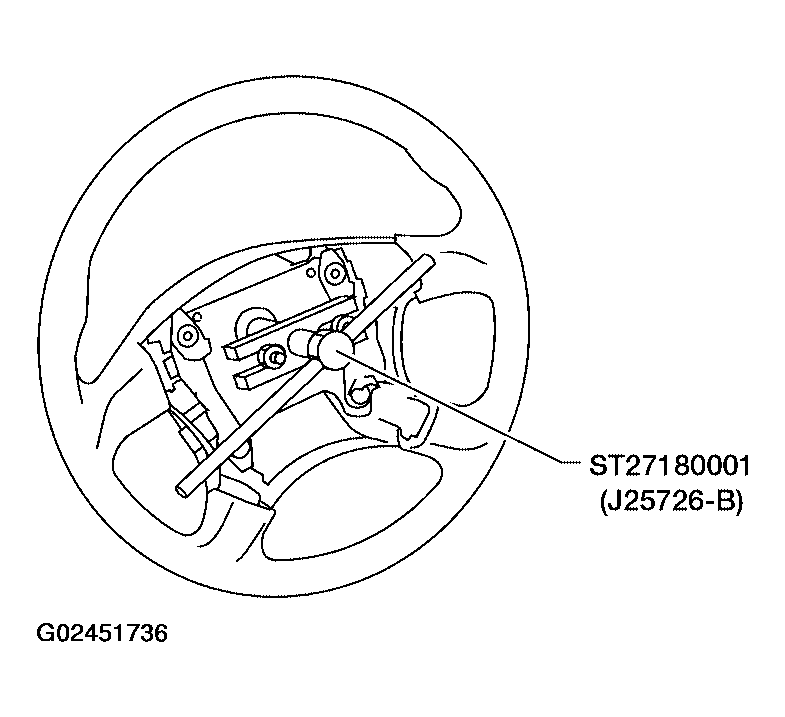

    Fig 1: Removing Steering Wheel
    G02451736Courtesy of NISSAN MOTOR CO., U.S.A.
