Engine Control System - Introduction (Qr25DE)
>>
On Board Diagnostic (OBD) System
>>
Emission-related Diagnostic Information
>>
Driving Pattern
>>
A/T Models ULEV And M/T Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/T Models ULEV And M/T Models
Driving pattern (Drive Cycle)
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.

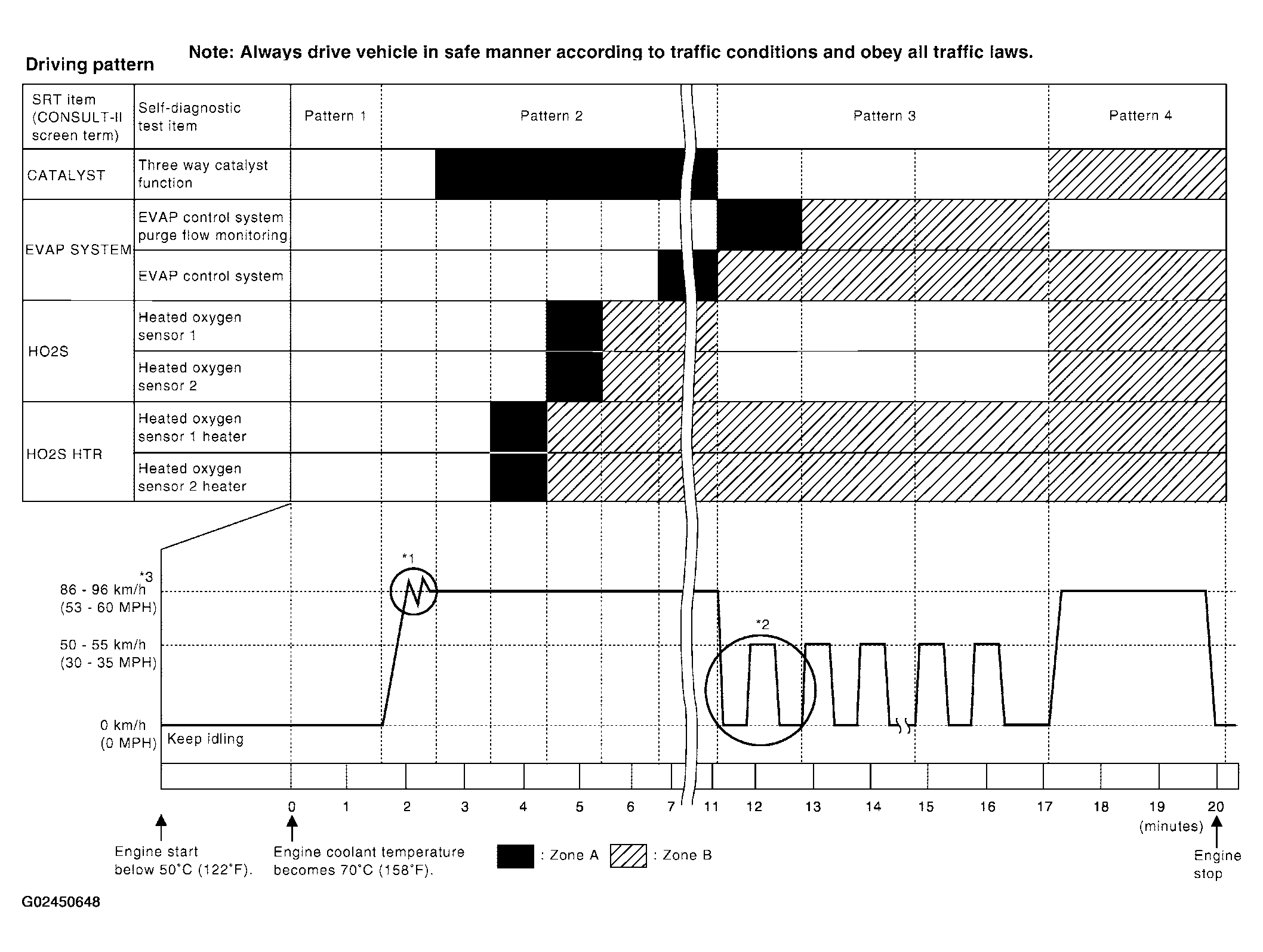

Fig 1: Driving Pattern (Drive Cycle) - A/T Models ULEV And M/T Models
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
