Test Item

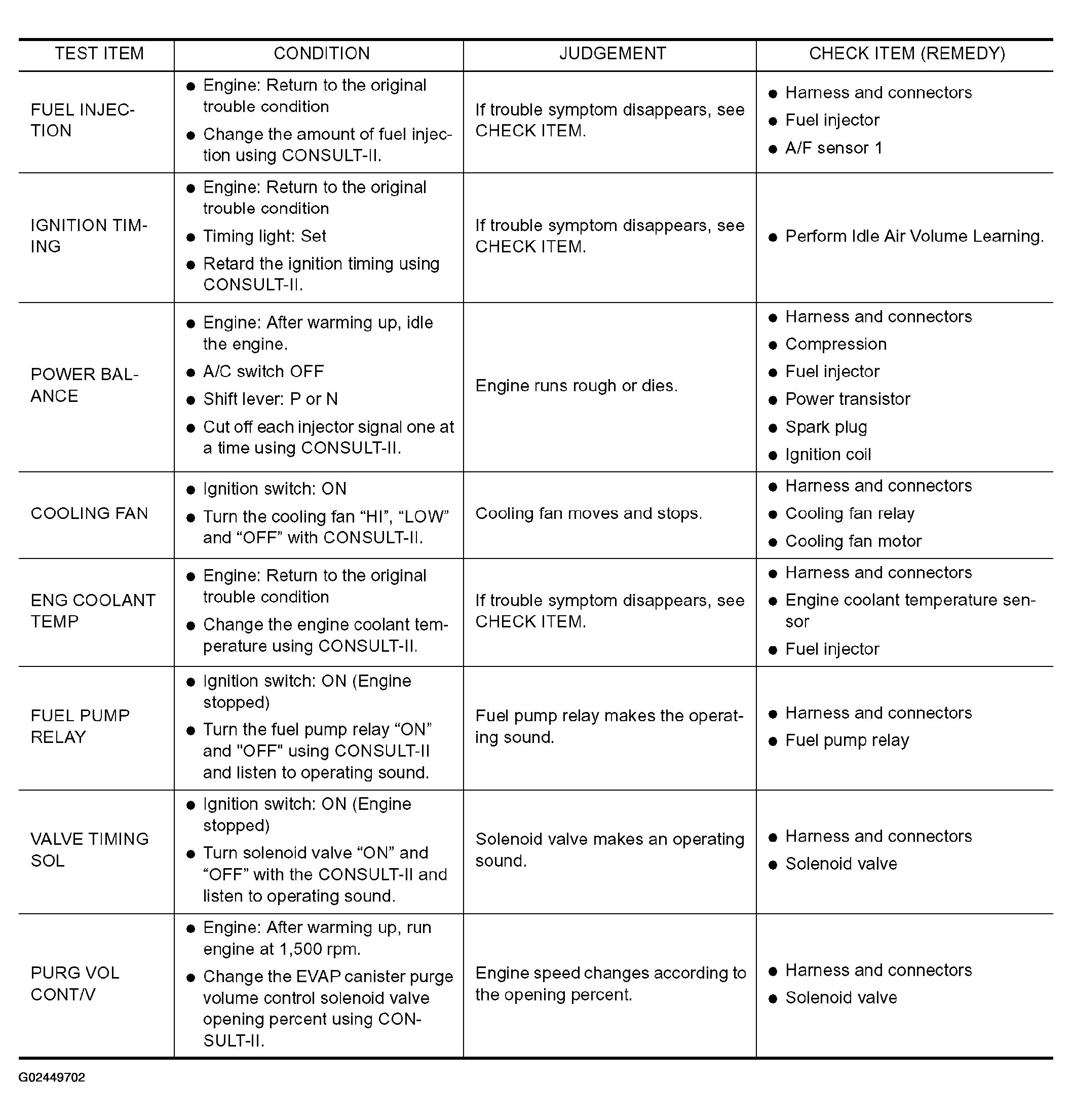

Fig 1: Active Test Mode - Test Item Condition Chart (1 Of 2)
G02449702Courtesy of NISSAN MOTOR CO., U.S.A.

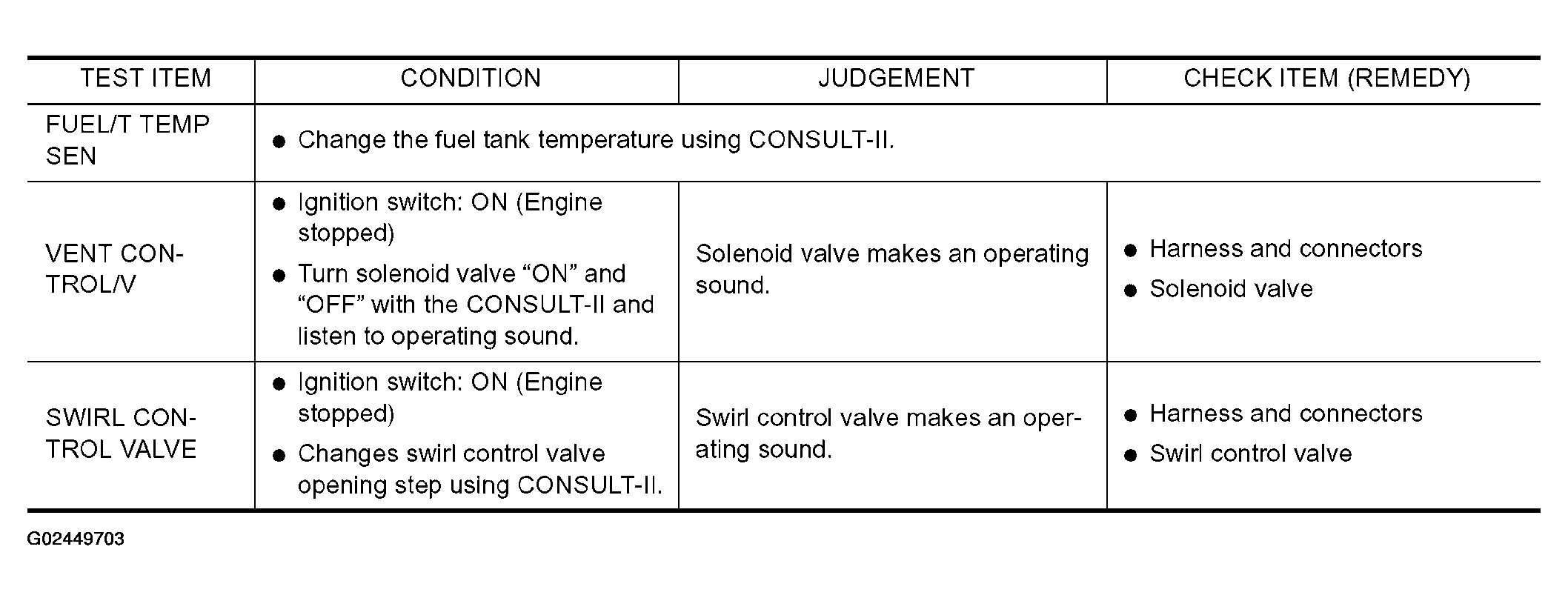

Fig 2: Active Test Mode - Test Item Condition Chart (2 Of 2)
G02449703Courtesy of NISSAN MOTOR CO., U.S.A.
