Idle Speed and Ignition Timing

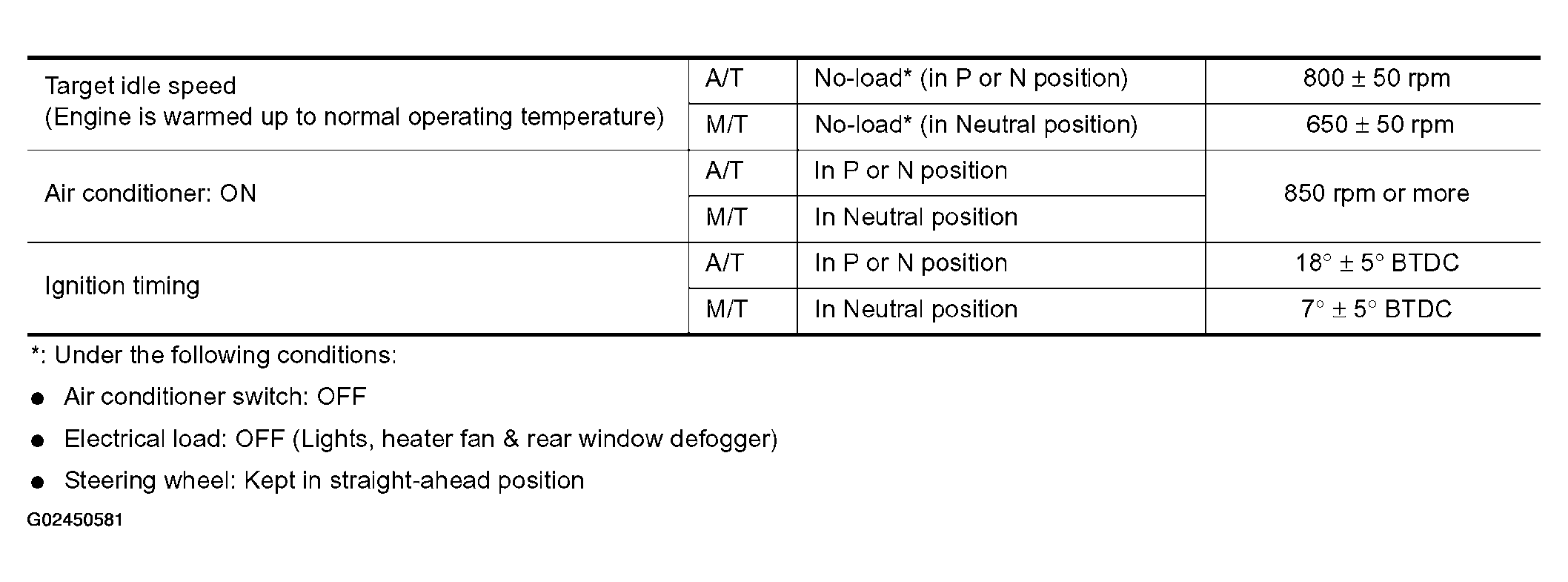

Fig 1: Idle Speed And Ignition Timing Specifications Chart
G02450581Courtesy of NISSAN MOTOR CO., U.S.A.
