System Description: Operation

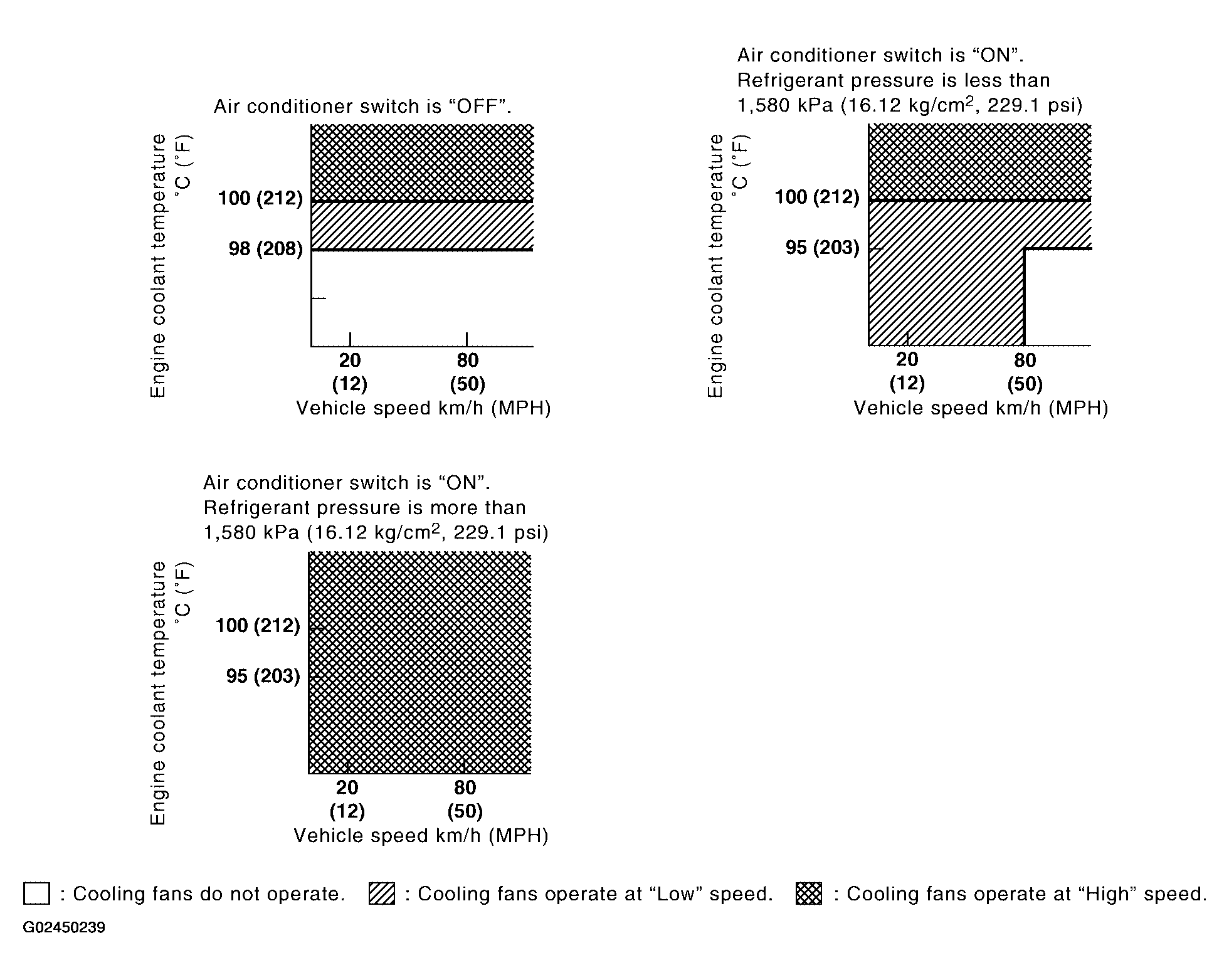

Fig 1: Engine Coolant Fan Control Based On Coolant Temperature, Vehicle Speed & A/C Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
