ASCD Indicator: Wiring Diagram

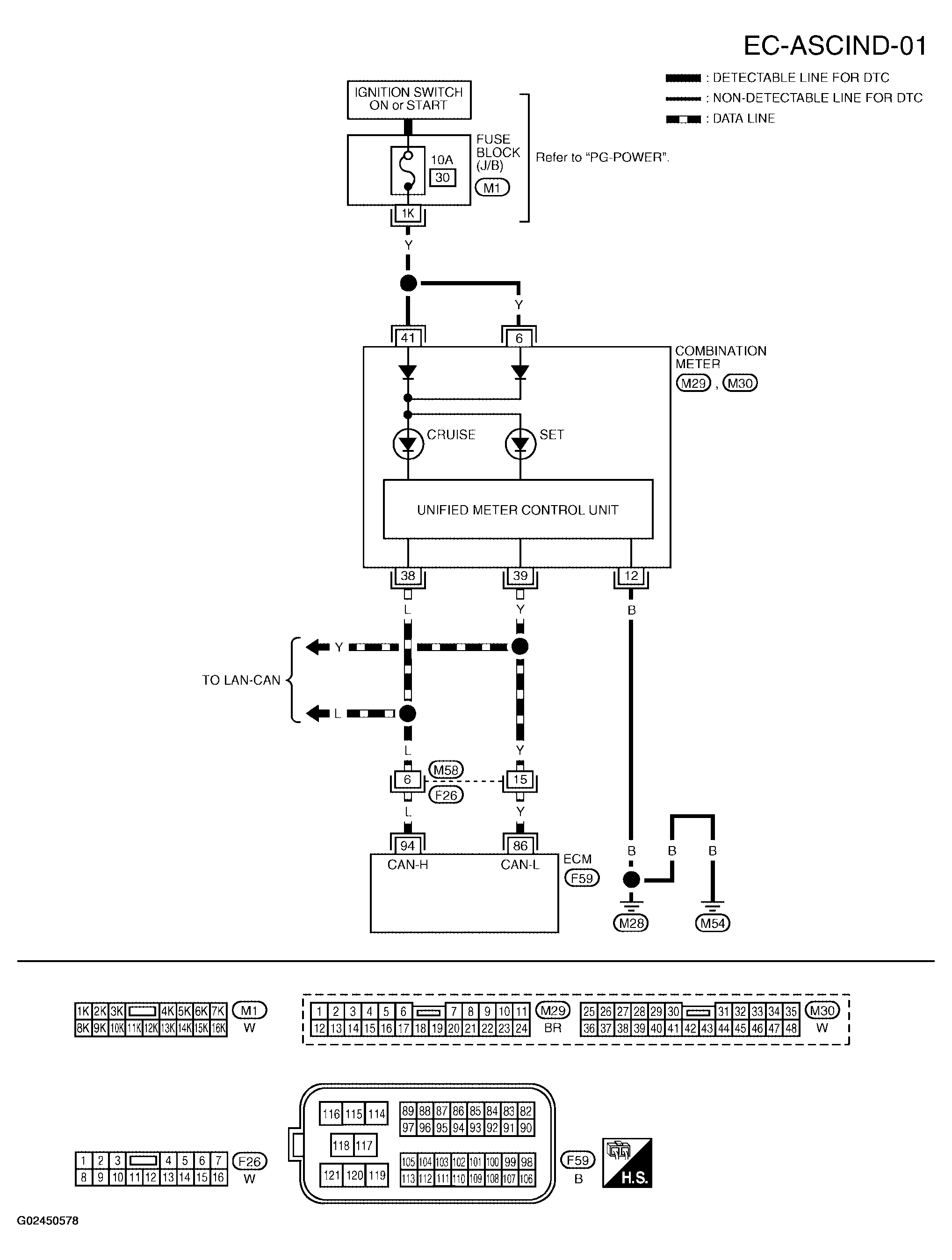

Fig 1: Wiring Diagram - ASCD (Cruise Control) Indicator (EC-ASCIND-01)
G02450578Courtesy of NISSAN MOTOR CO., U.S.A.
