DTC P0112, P0113: IAT Sensor: Wiring Diagram

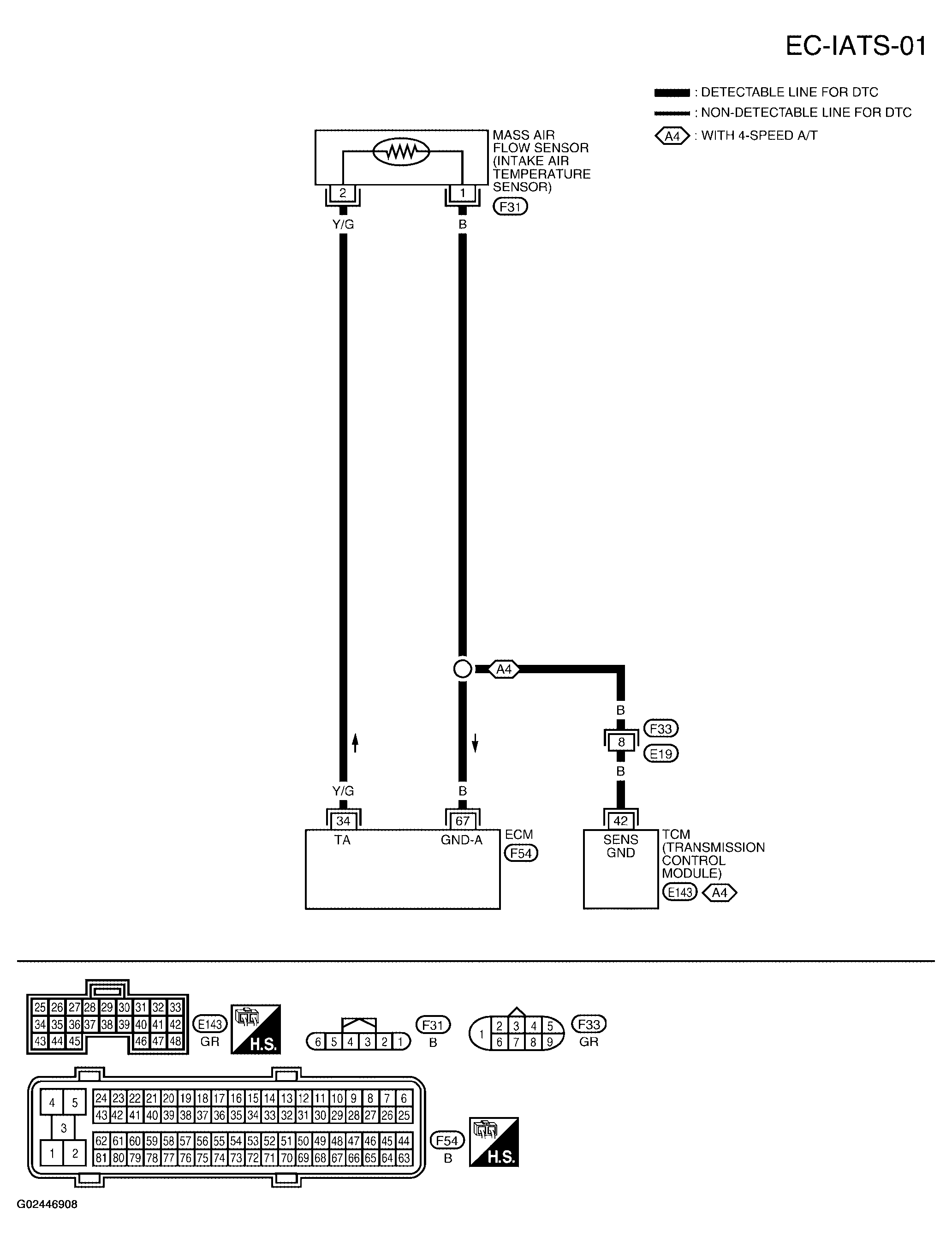

Fig 1: Wiring Diagram - IAT Sensor - EC-IATS-01
G02446908Courtesy of NISSAN MOTOR CO., U.S.A.
