System - Engine Mechanical & Other

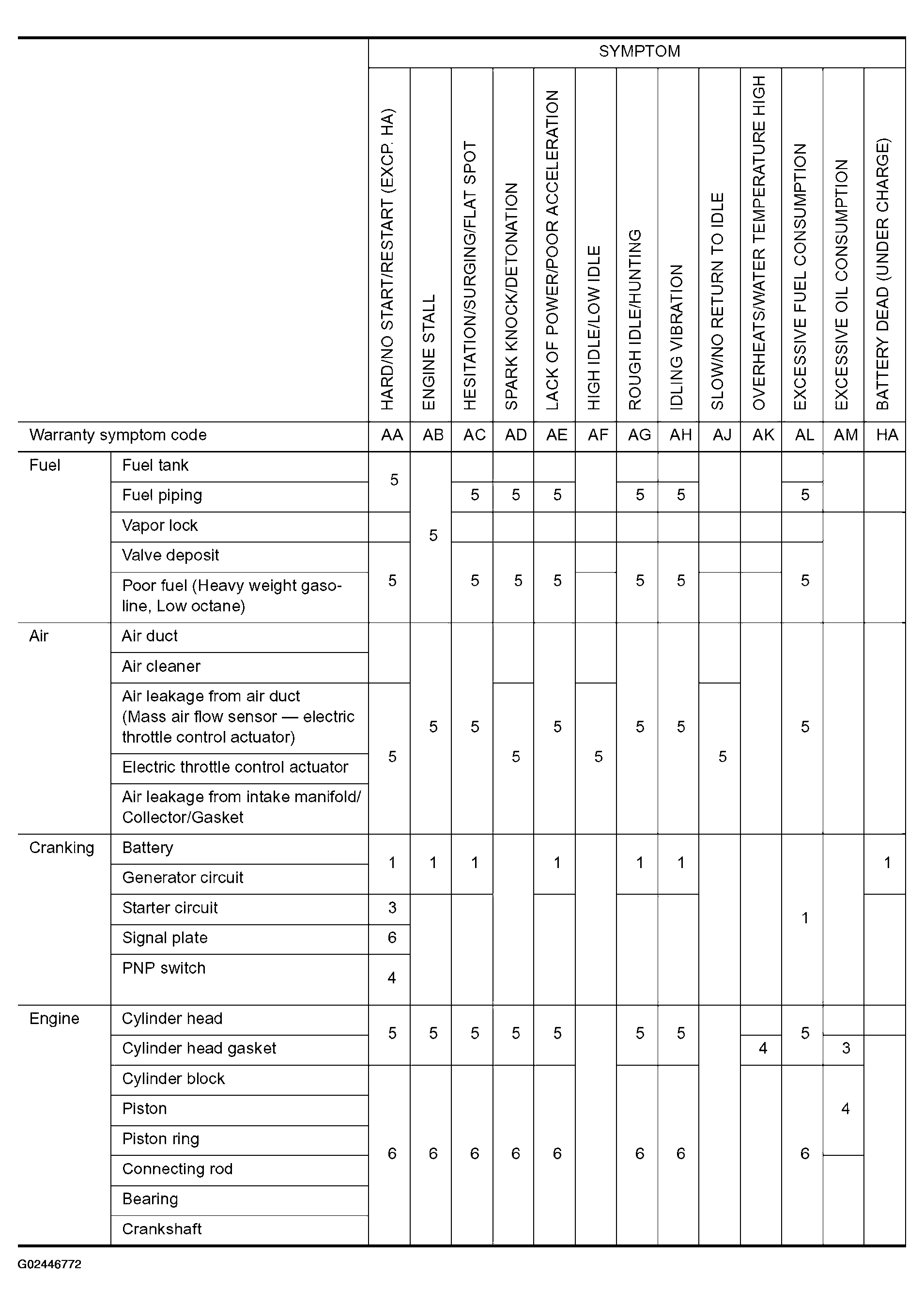

Fig 1: Symptom Matrix Chart - System - Engine Mechanical & Other (1 Of 2)
G02446772Courtesy of NISSAN MOTOR CO., U.S.A.

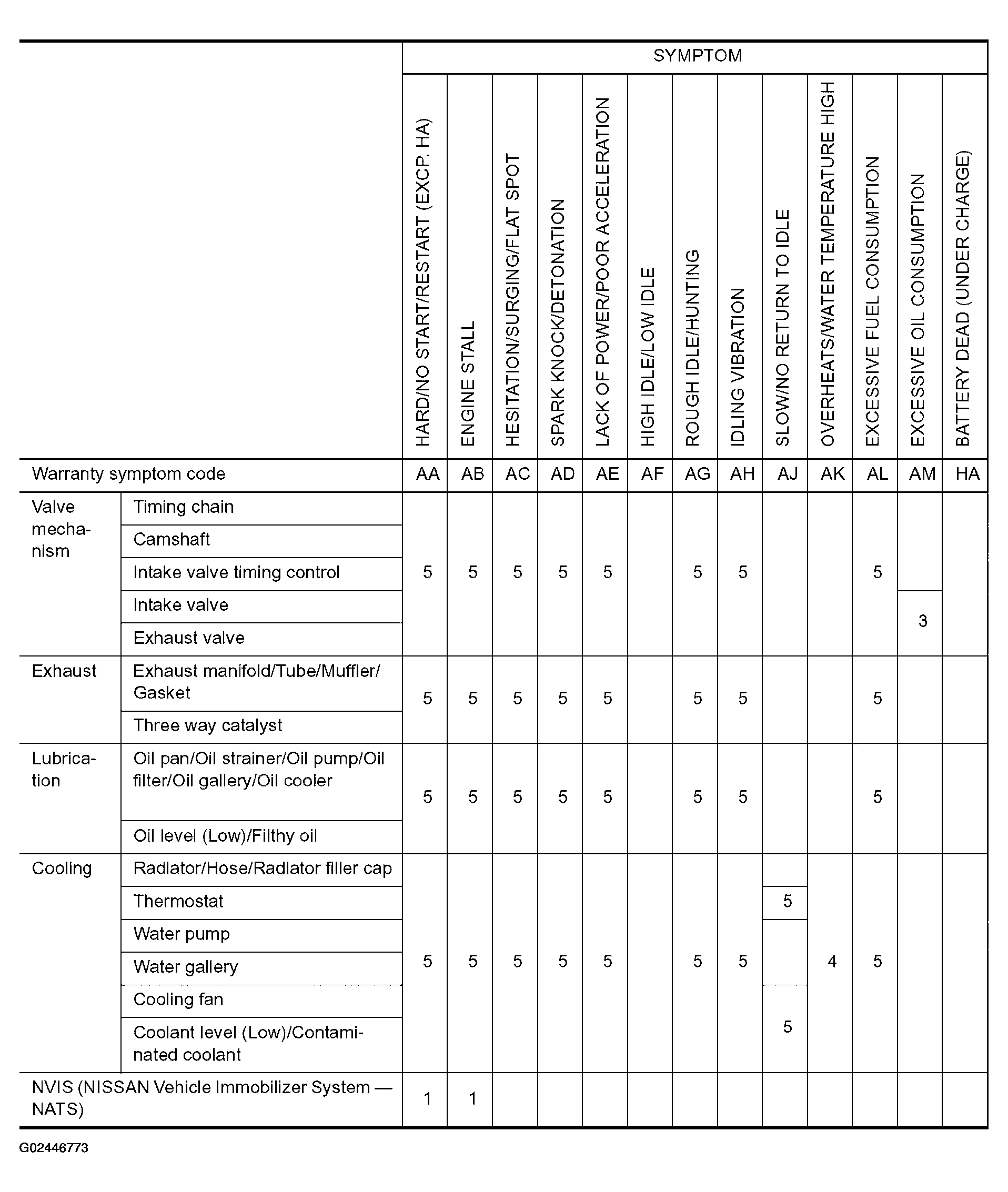

Fig 2: Symptom Matrix Chart - System - Engine Mechanical & Other (2 Of 2)
G02446773Courtesy of NISSAN MOTOR CO., U.S.A.
