Circuit Diagram

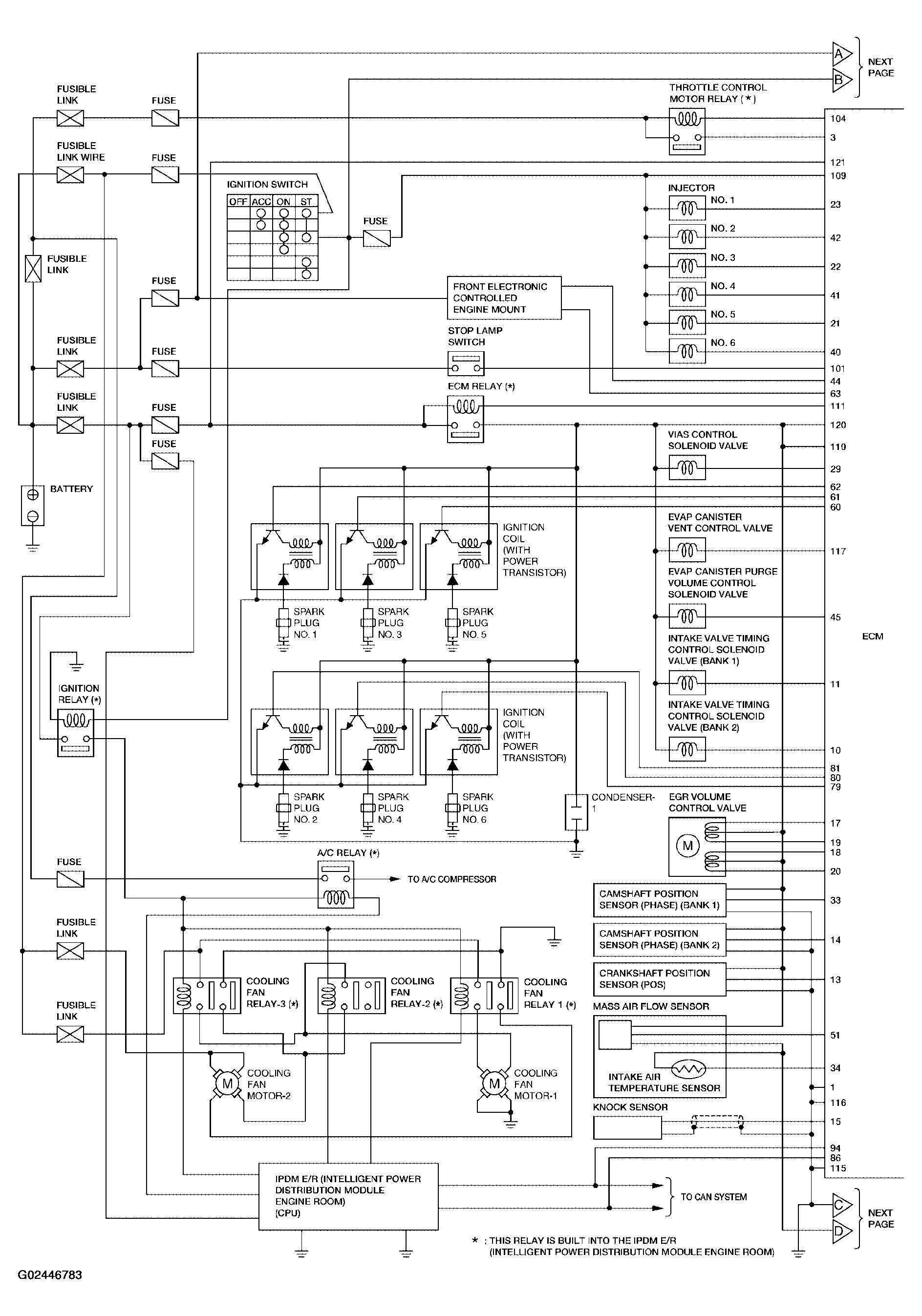

Fig 1: Circuit Diagram (1 Of 2)
G02446783Courtesy of NISSAN MOTOR CO., U.S.A.

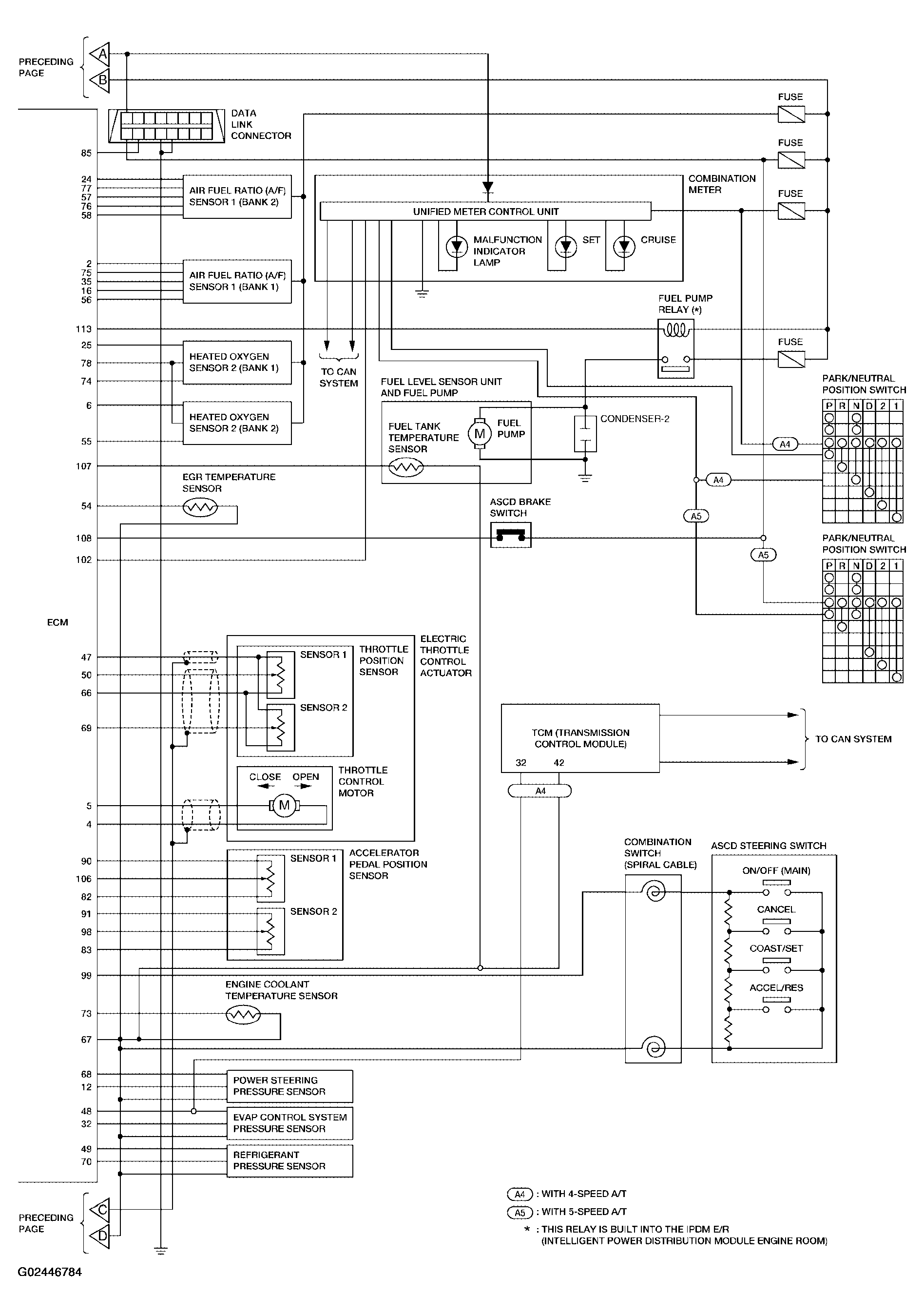

Fig 2: Circuit Diagram (2 Of 2)
G02446784Courtesy of NISSAN MOTOR CO., U.S.A.
