Input/Output Signal Chart

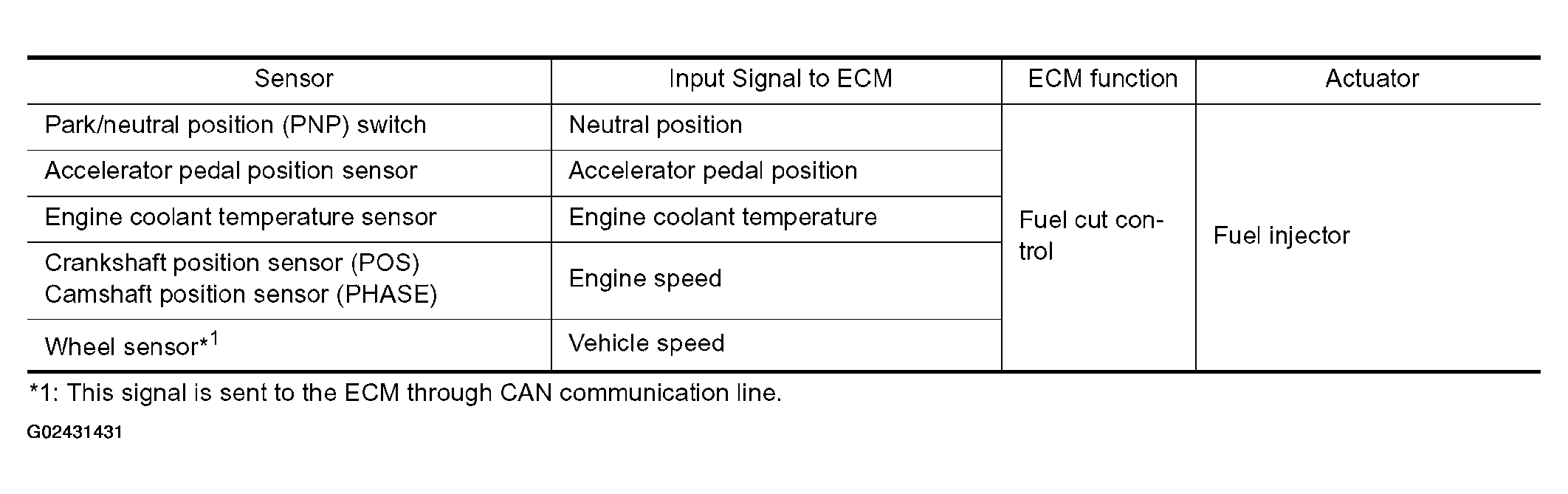

Fig 1: Input/Output Signal Chart - Fuel Cut Control (At No Load And High Engine Speed)
G02431431Courtesy of NISSAN MOTOR CO., U.S.A.
