DIAGNOSTIC TROUBLE CODES No. Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

NOTE: Refer to Fig 4 for explanation of asterisk (*) footnotes.

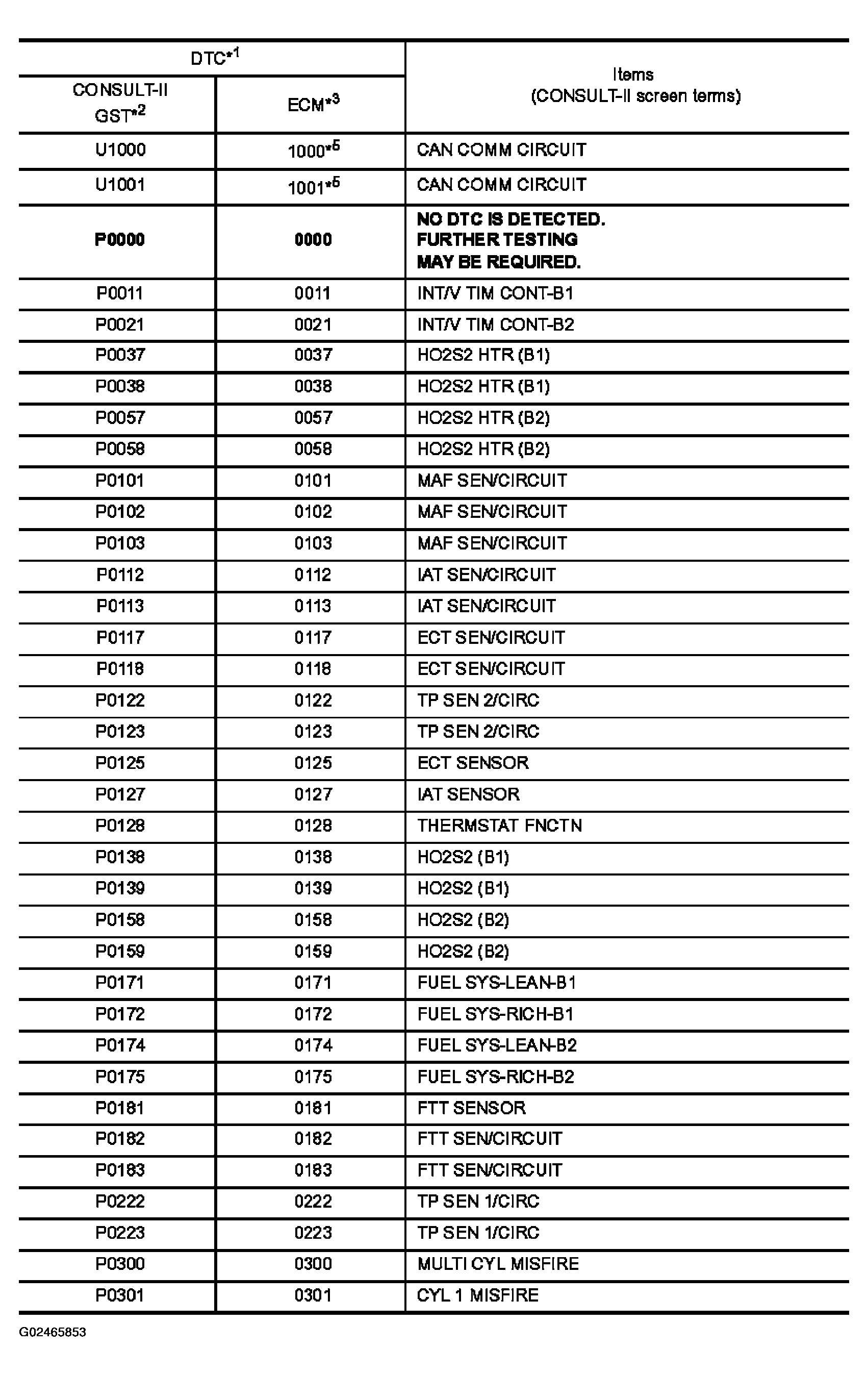

Fig 1: Nissan & SAE "P" Code Explanation Chart - Indexed By "P" Code (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

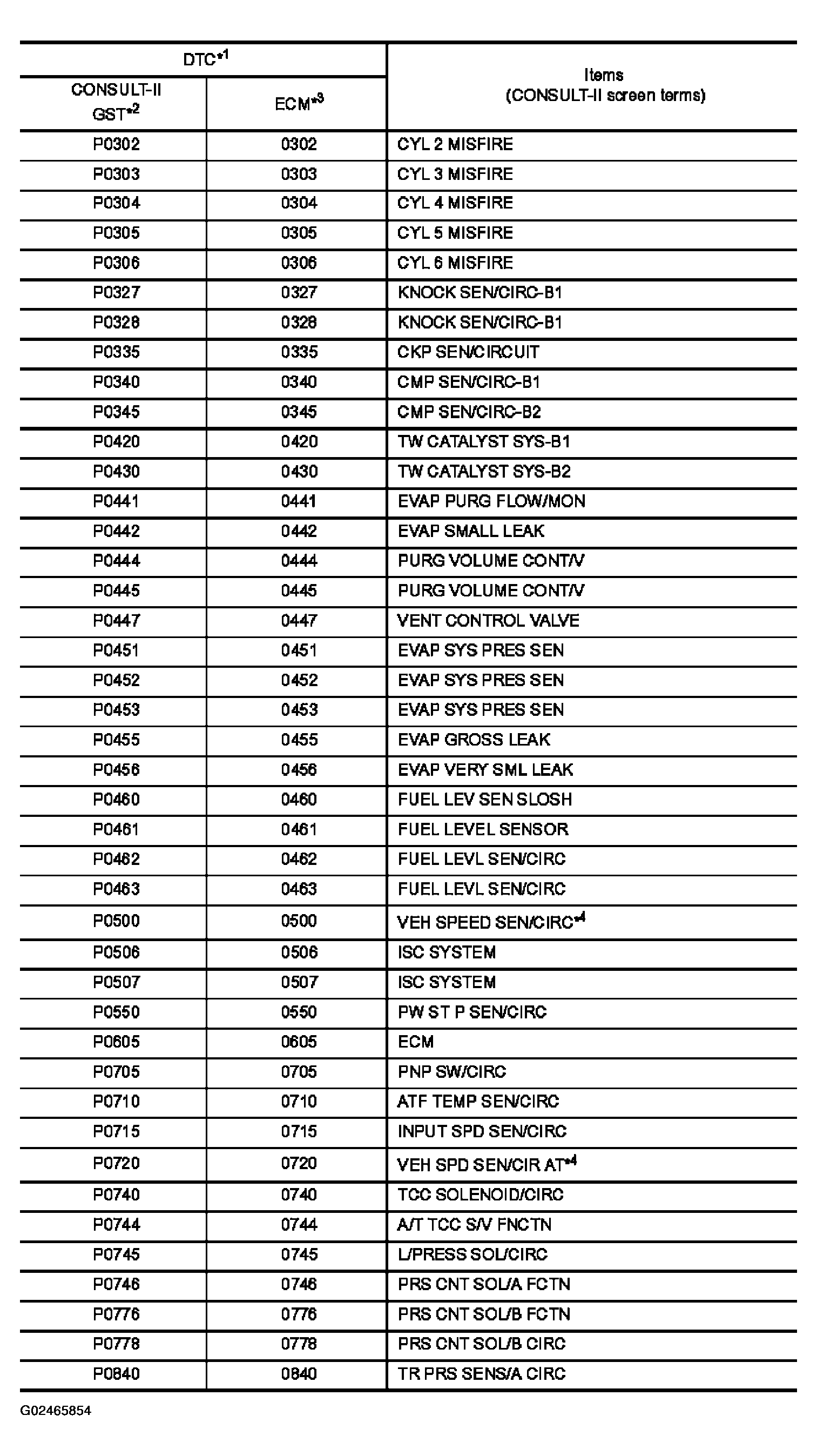

Fig 2: Nissan & SAE "P" Code Explanation Chart - Indexed By "P" Code (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

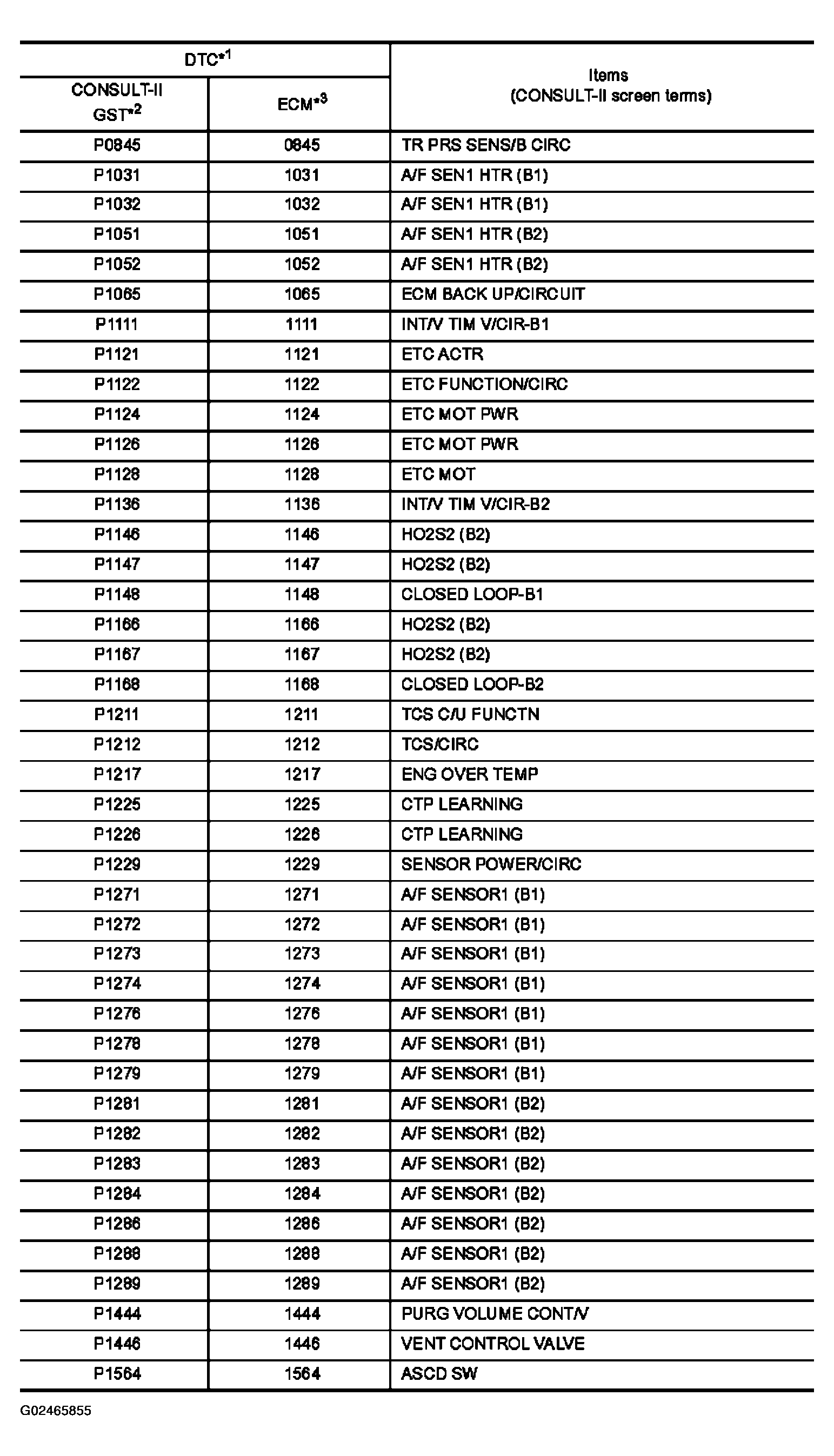

Fig 3: Nissan & SAE "P" Code Explanation Chart - Indexed By "P" Code (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

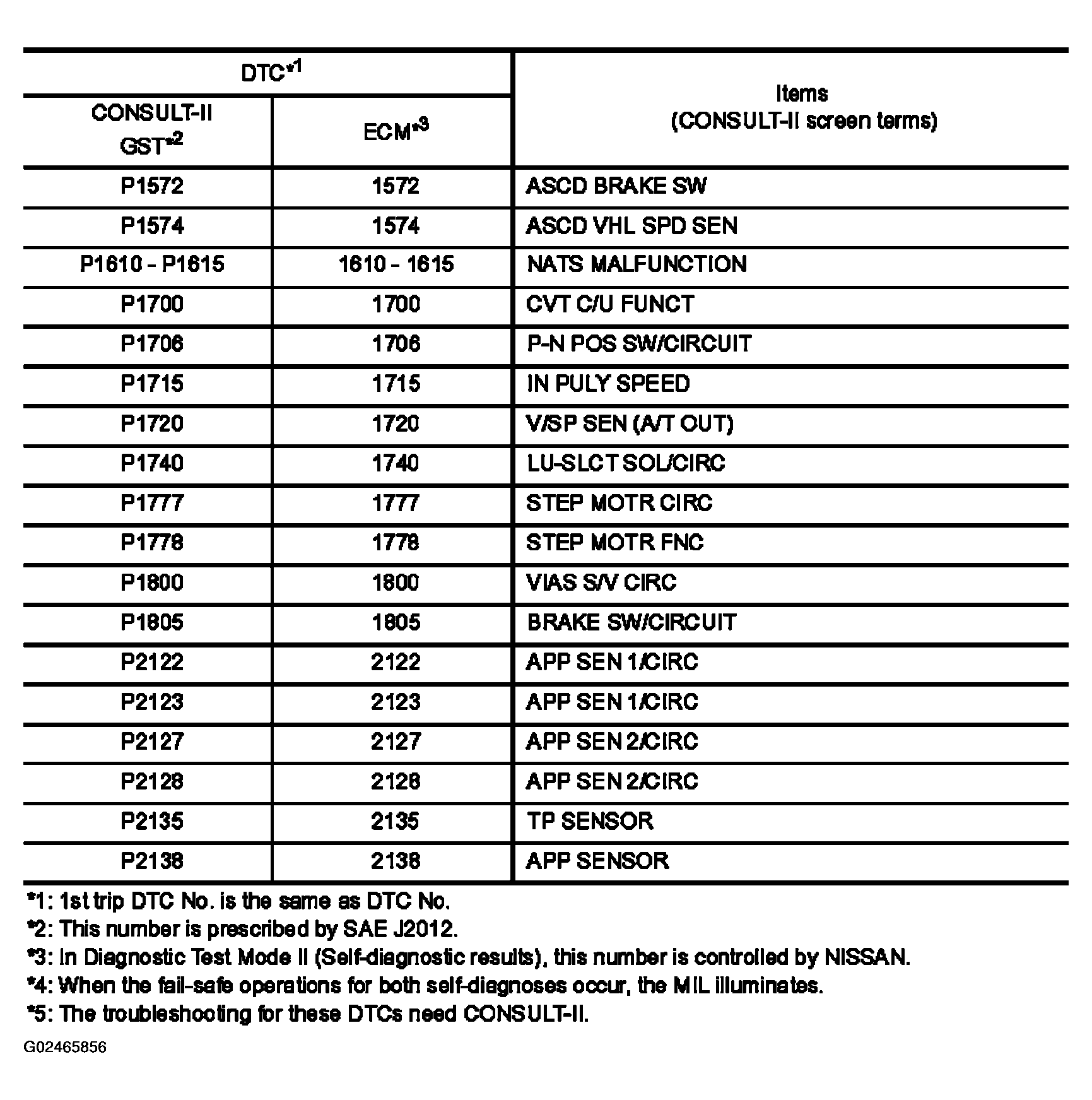

Fig 4: Nissan & SAE "P" Code Explanation Chart - Indexed By "P" Code (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
