DTC P0117, P0118: ECT Sensor: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

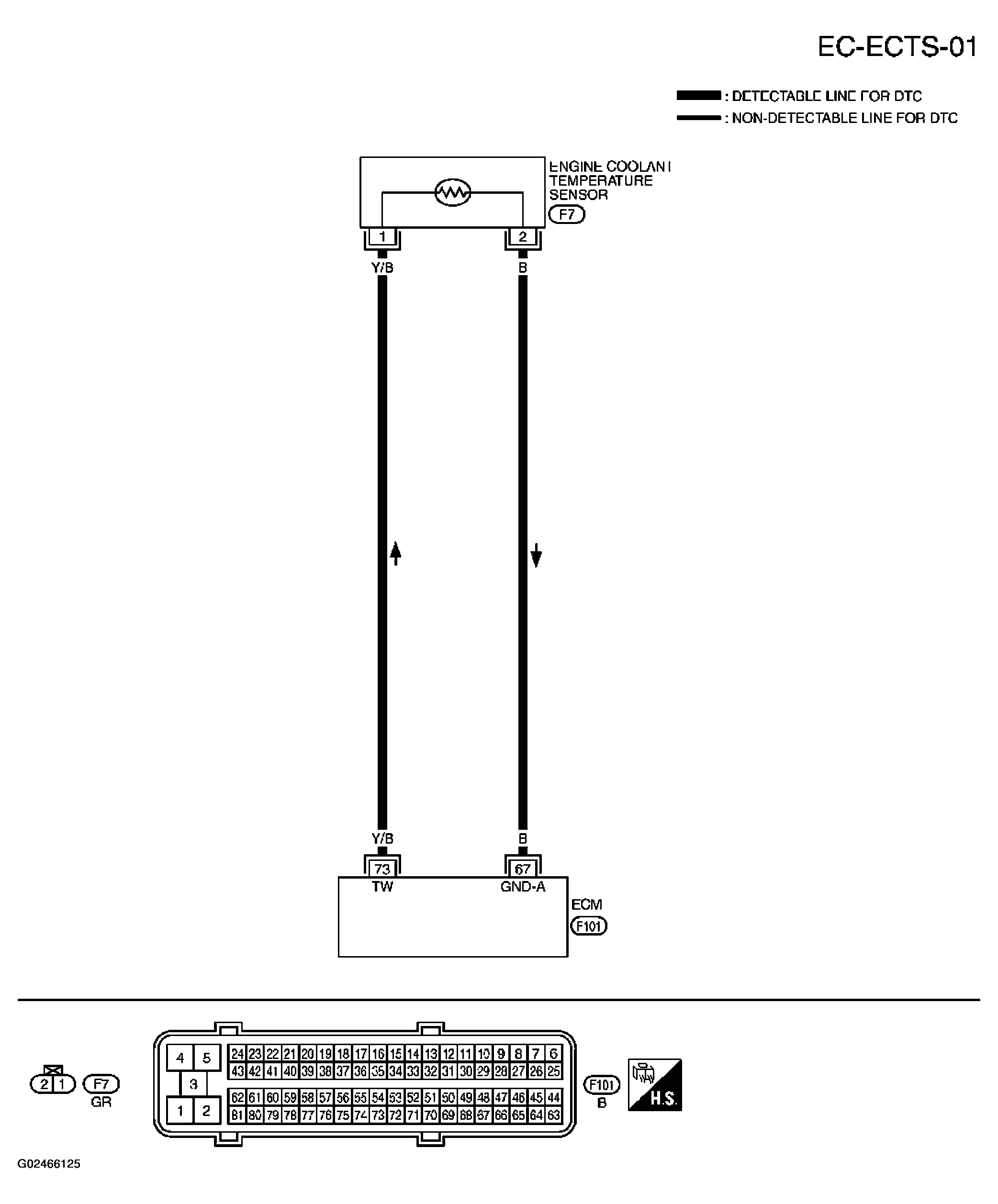

Fig 1: Wiring Diagram - Engine Coolant Temperature Sensor (EC-ECTS-01)
G02466125Courtesy of NISSAN MOTOR CO., U.S.A.
