Overall Sequence

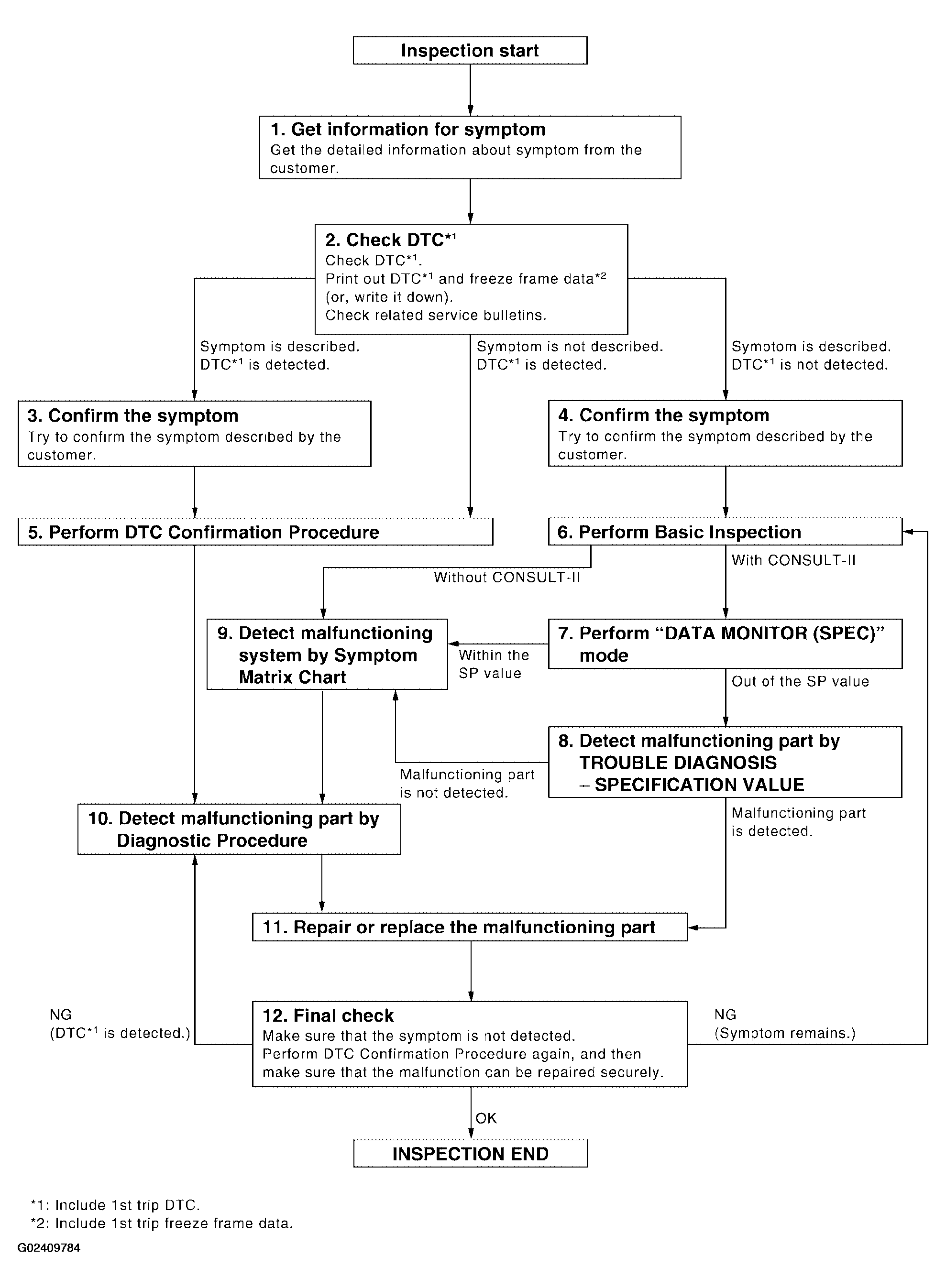

Fig 1: Troubleshooting Work Flow Chart

G02409784

Courtesy of NISSAN MOTOR CO., U.S.A.
