System - Engine Mechanical & Other

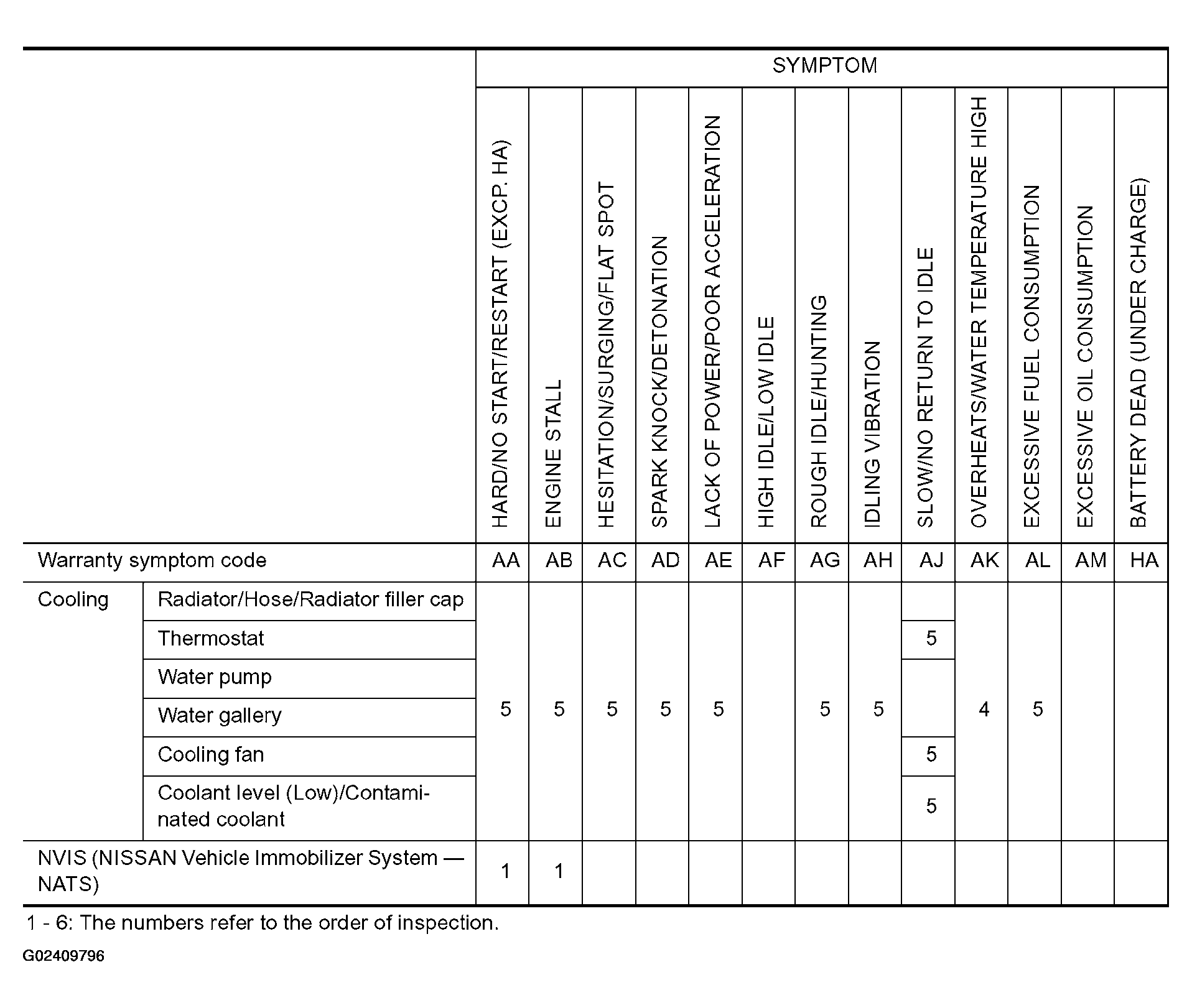

Fig 1: Engine Mechanical Symptom Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

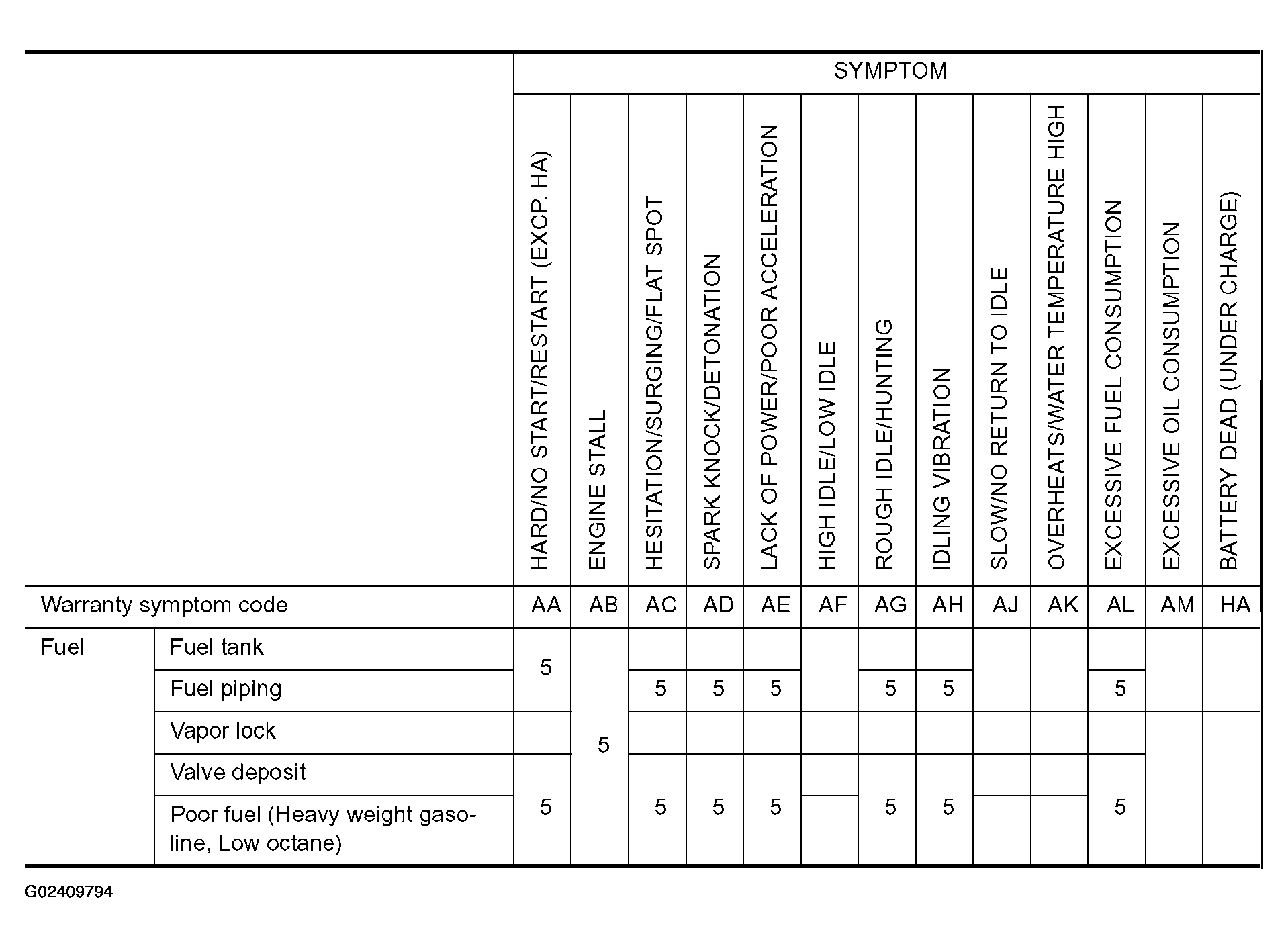

Fig 2: Engine Mechanical Symptom Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

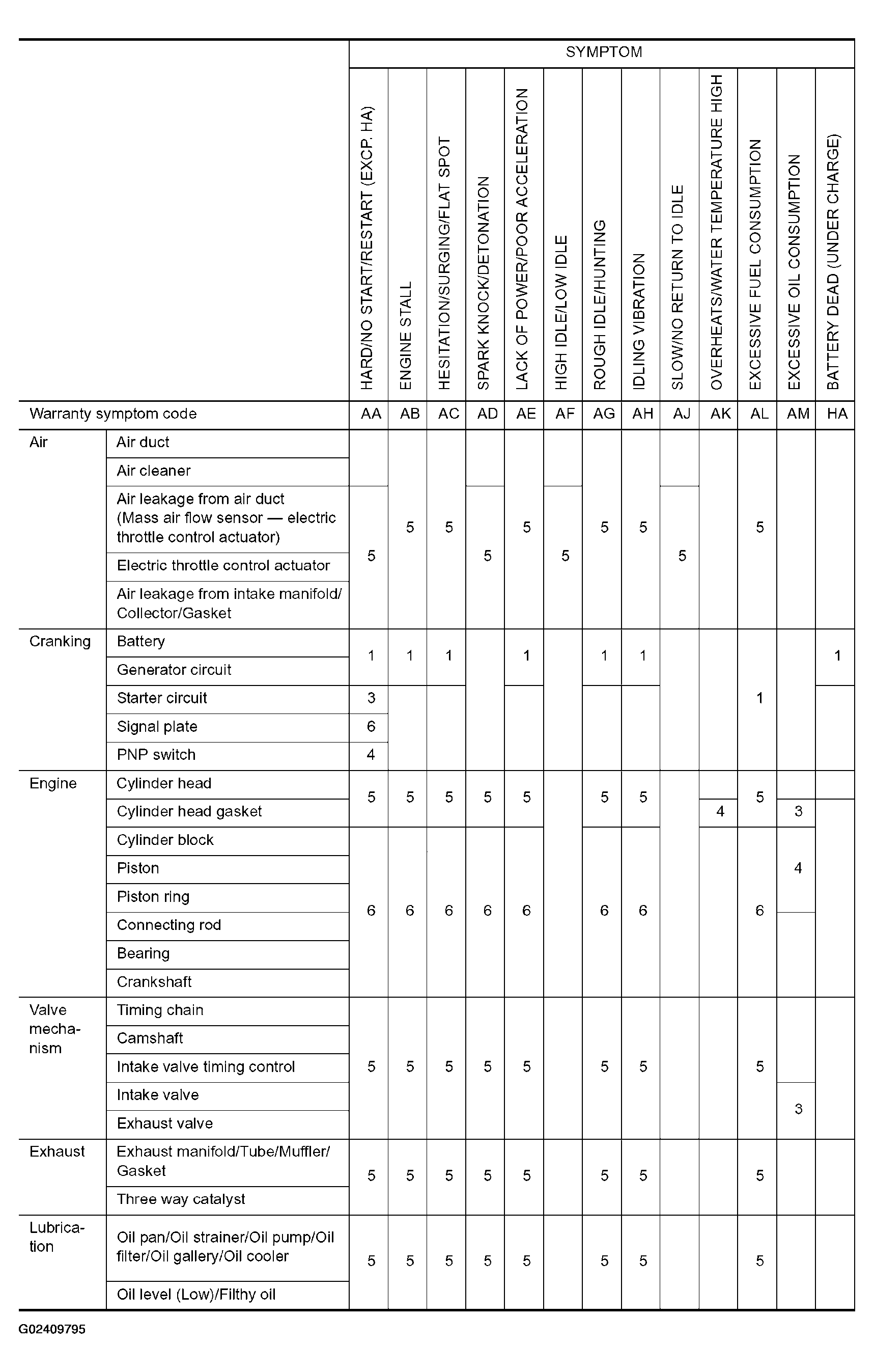

Fig 3: Engine Mechanical Symptom Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

1-6: The numbers refer to the order of inspection
