Wiring Diagram - ASCIND

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

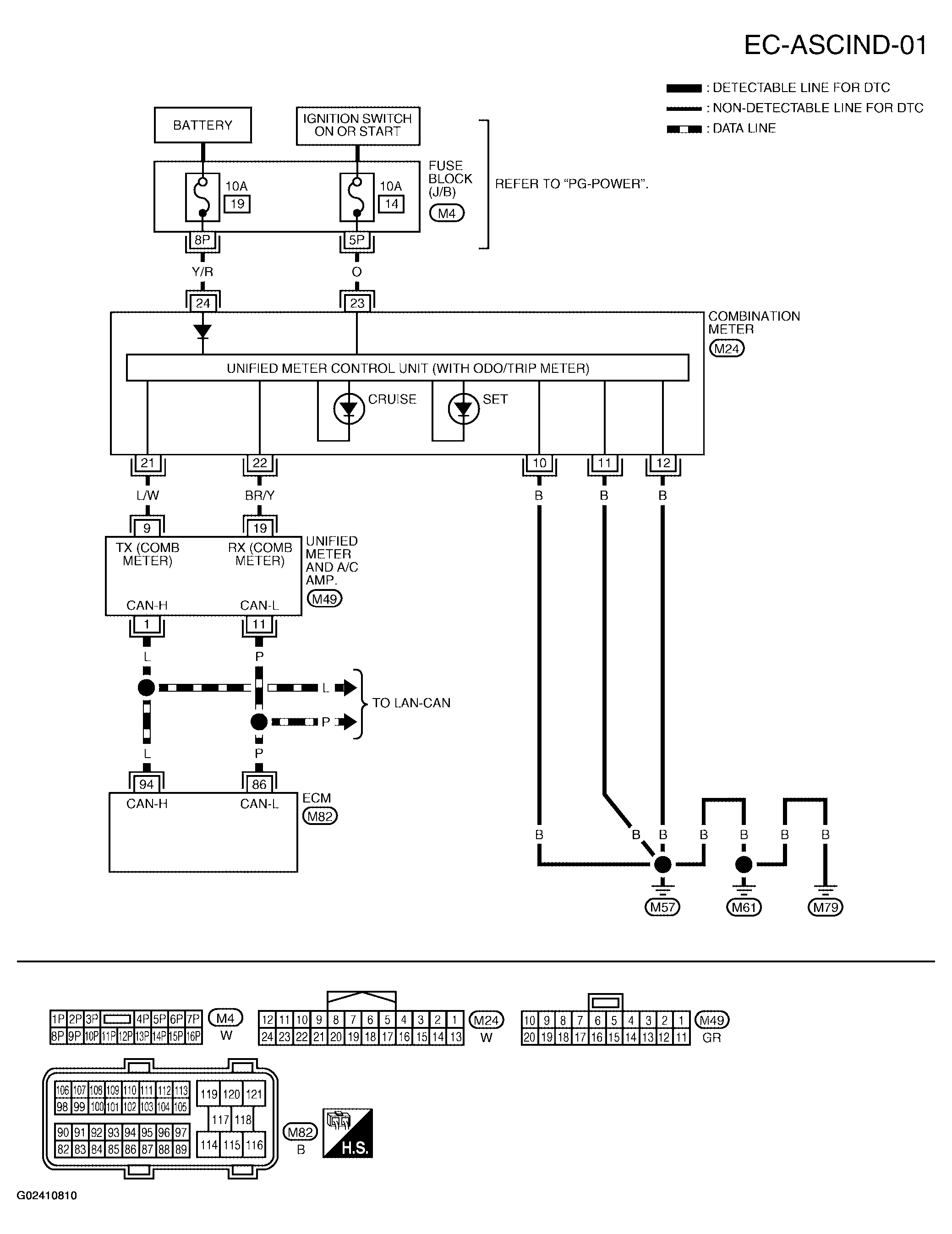

Fig 1: Wiring Diagram - (EC-ASCIND-01)
G02410810Courtesy of NISSAN MOTOR CO., U.S.A.
