Keyfob Battery and Function Check

CHECK KEYFOB BATTERY
Remove battery and measure voltage across battery positive and negative terminals, (+) and (-).

Voltage: 2.5V - 3.0V

NOTE: Keyfob does not function if battery is not installed correctly.

OK or NG
- OK: GO TO 2.
- NG: Replace battery. Refer to KEYFOB BATTERY REPLACEMENT .

  Fig 1: Measuring Voltage Across Key Fob Battery Positive & Negative Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of keyfob, the corresponding monitor item should be turned as follows.

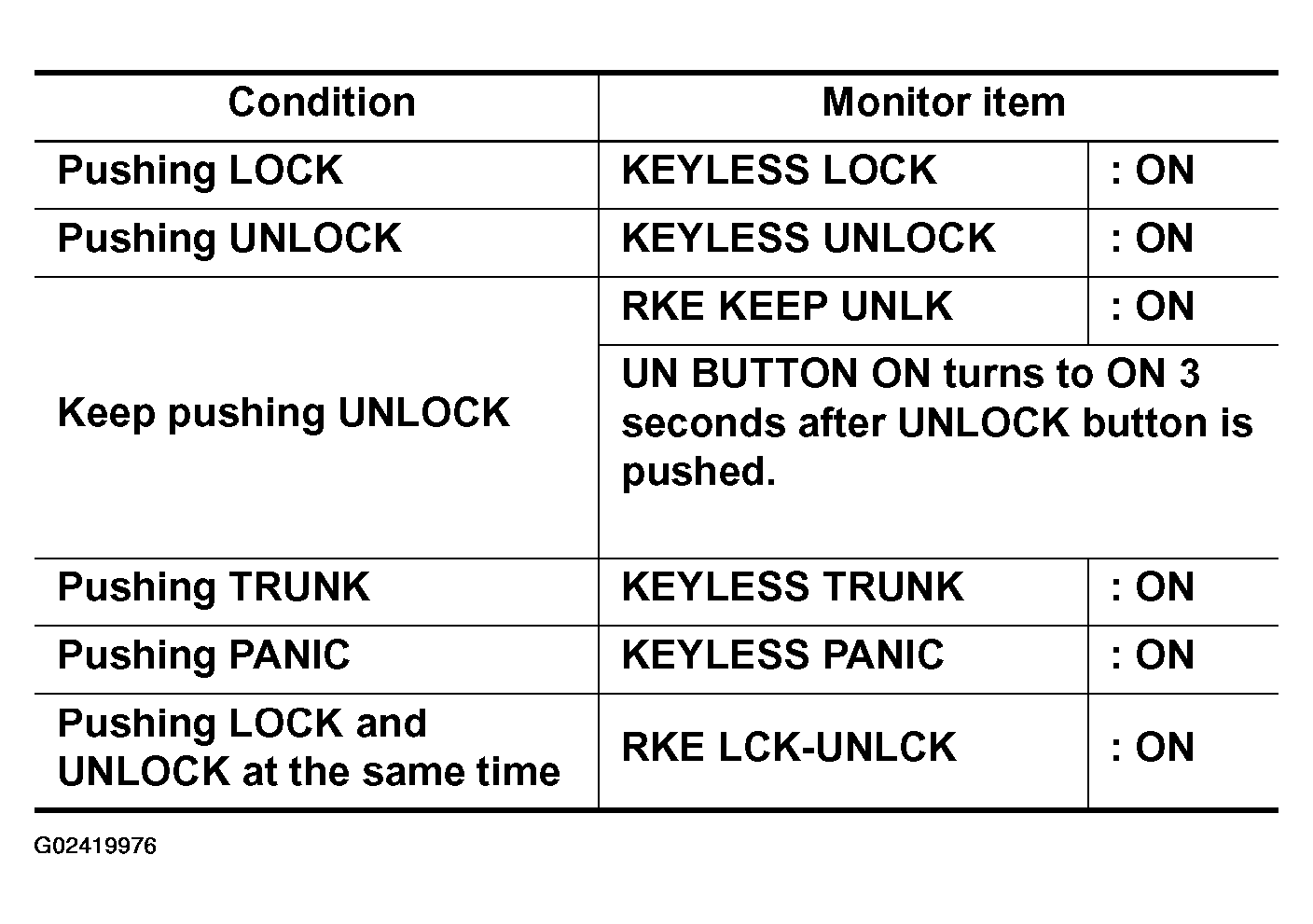

Fig 2: Key Fob Function Check Using DATA MONITOR Mode With CONSULT-II.
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: CONSULT-II Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Keyfob is OK. Further inspection is necessary. Refer to SYMPTOM CHART .
- NG: Replace keyfob.
