Frontier XE, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Qr) - Introduction
>>
Trouble Diagnosis
>>
Engine Control Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Control Component Parts Location

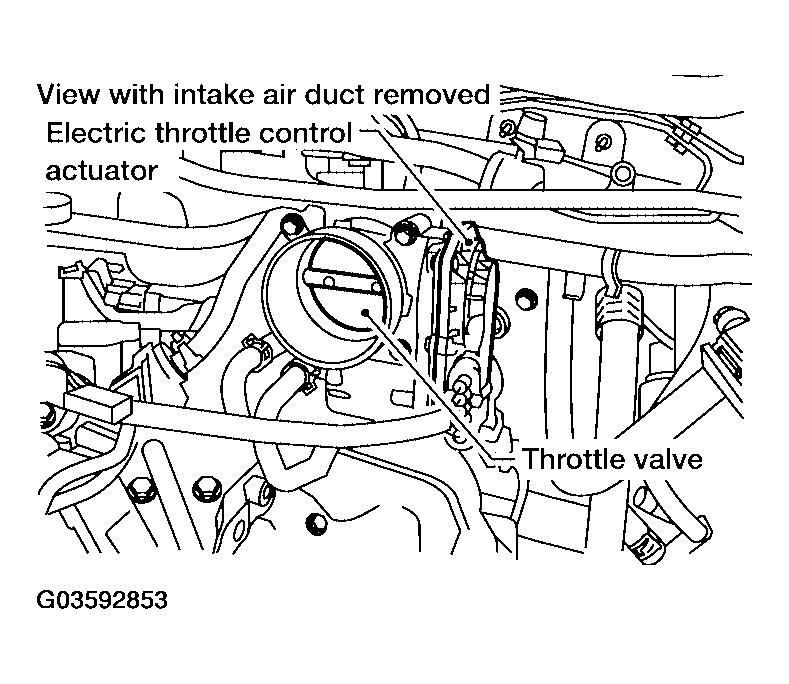

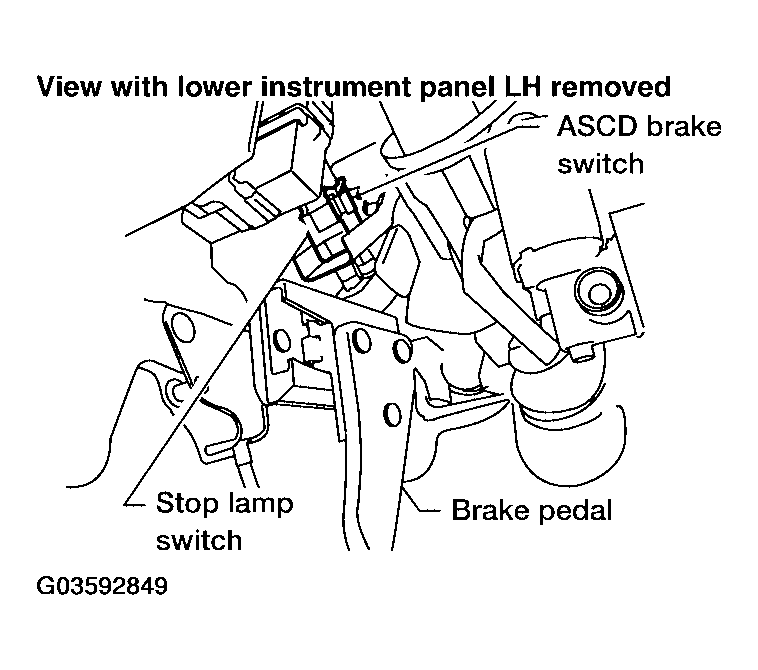

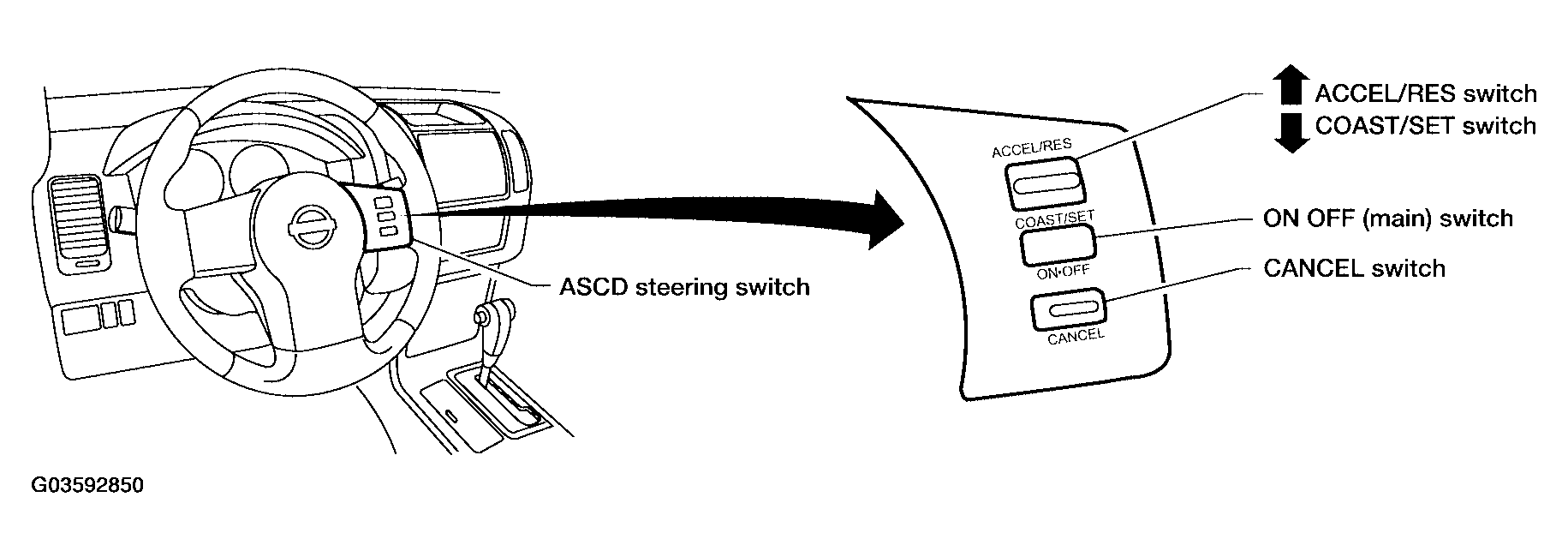

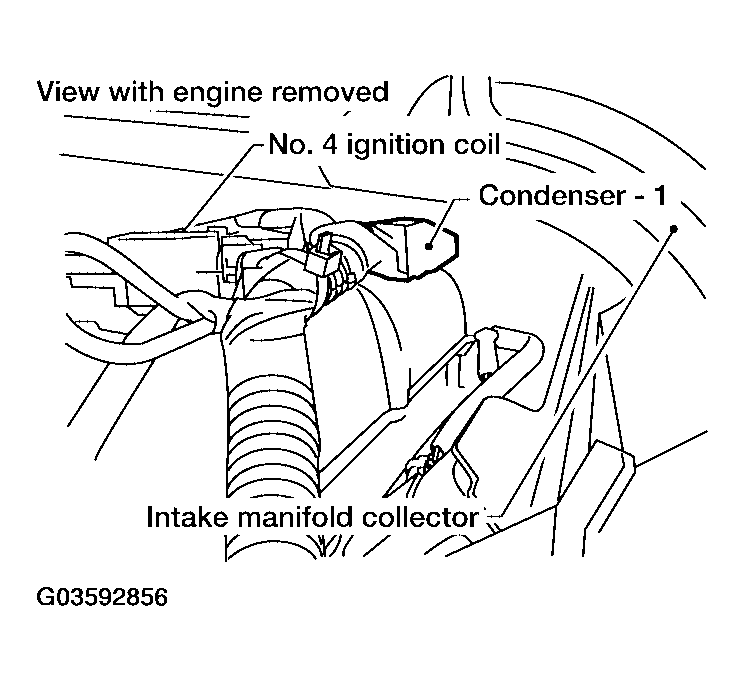

Fig 1: Identifying Engine Control Component Parts Location (1 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

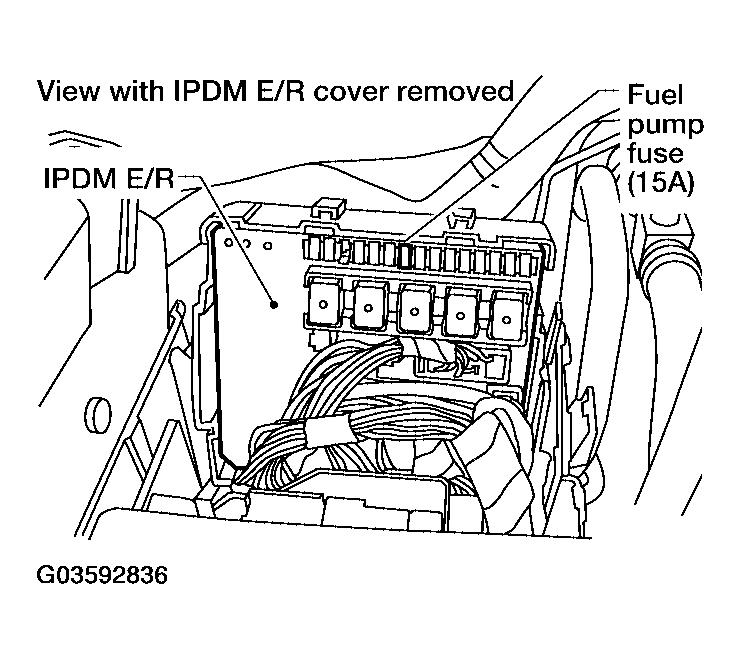

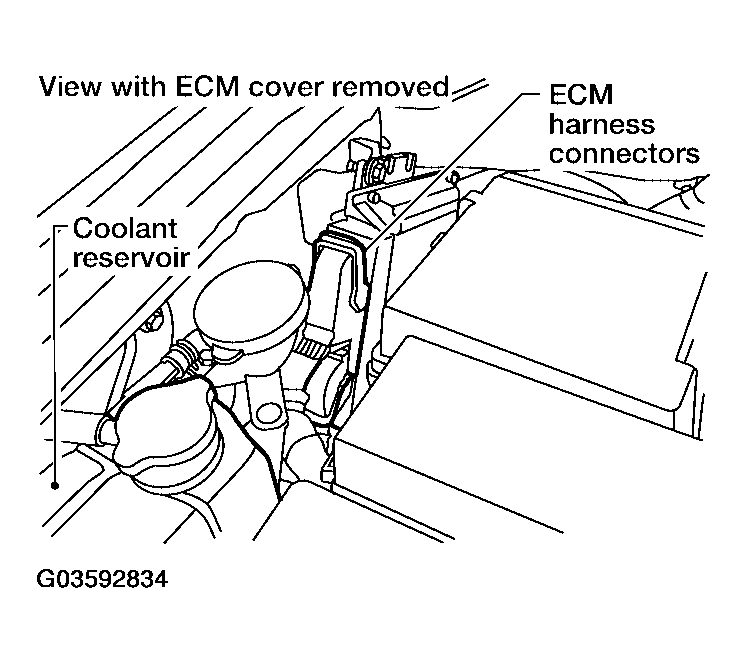

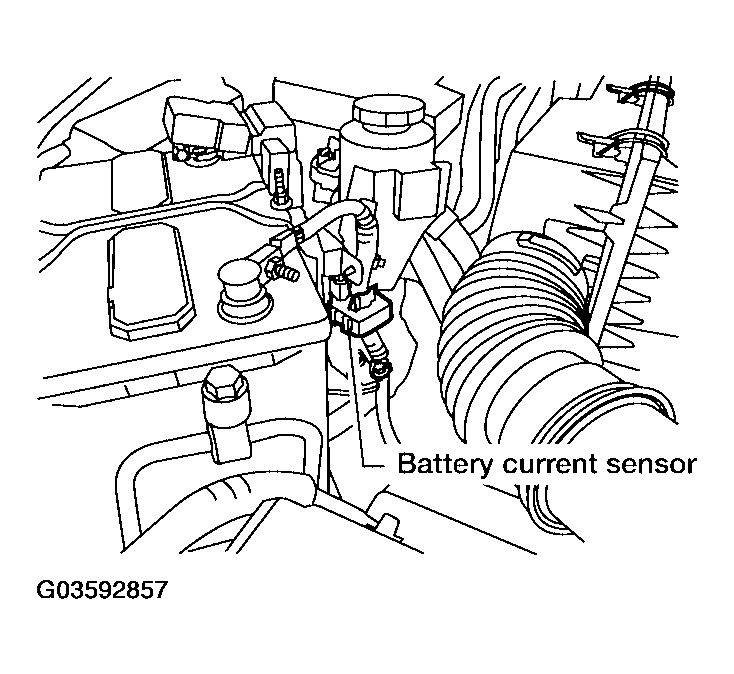

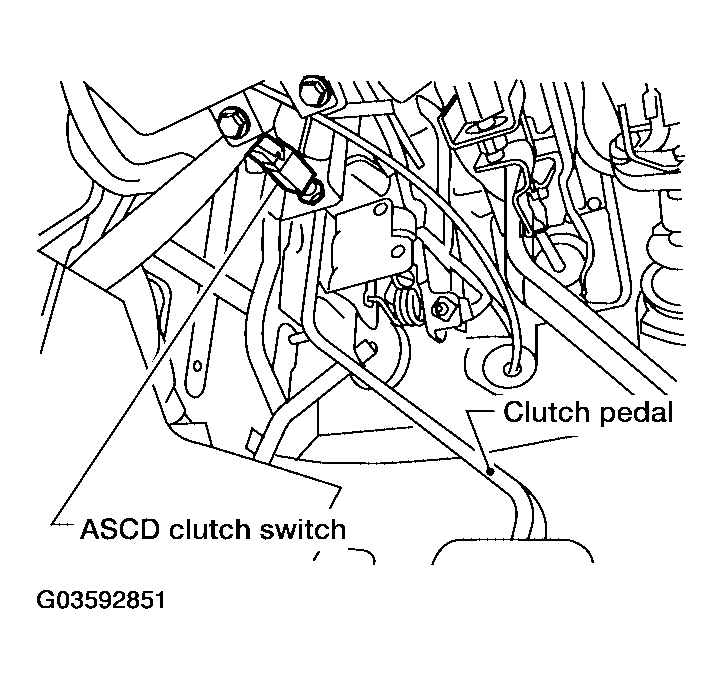

Fig 2: Identifying Engine Control Component Parts Location (2 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

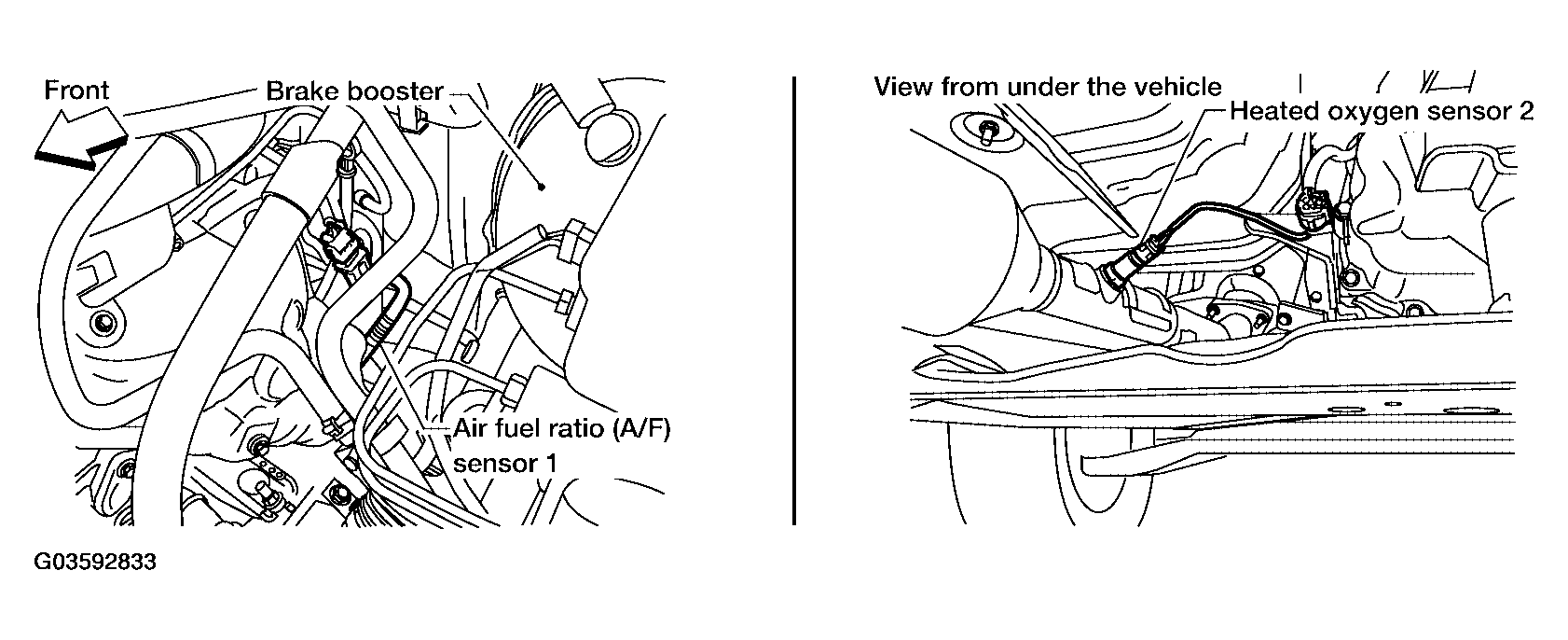

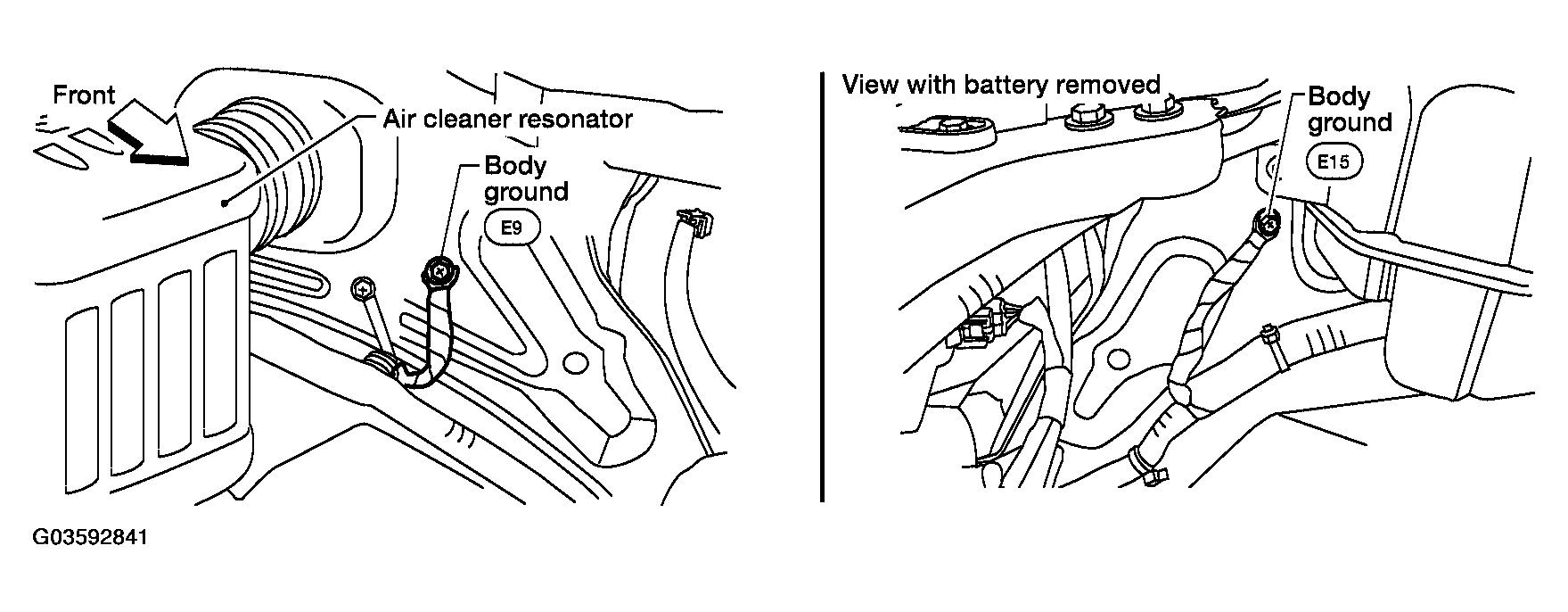

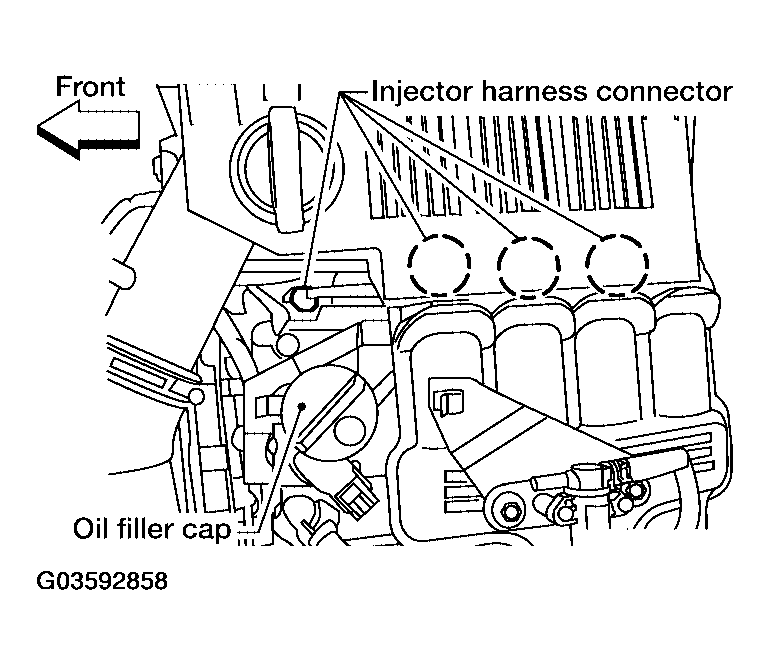

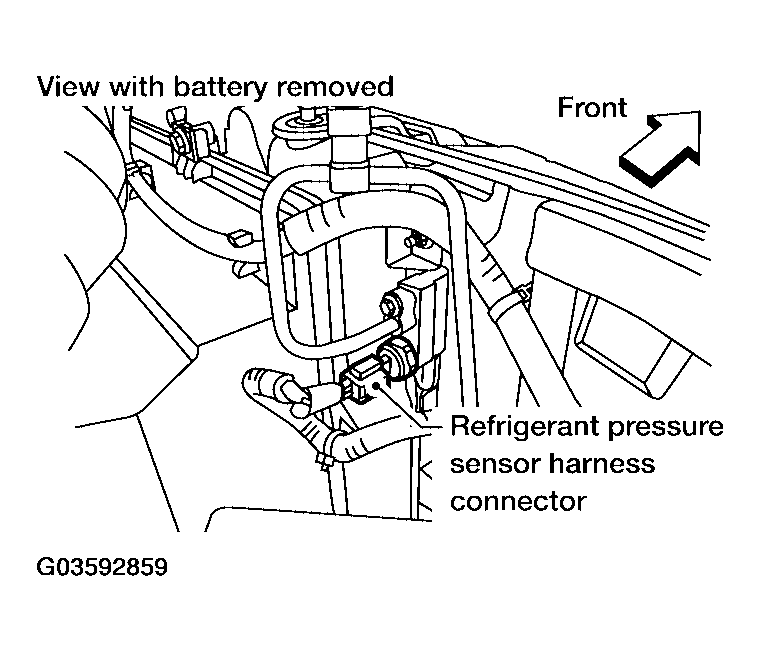

Fig 3: Identifying Engine Control Component Parts Location (3 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

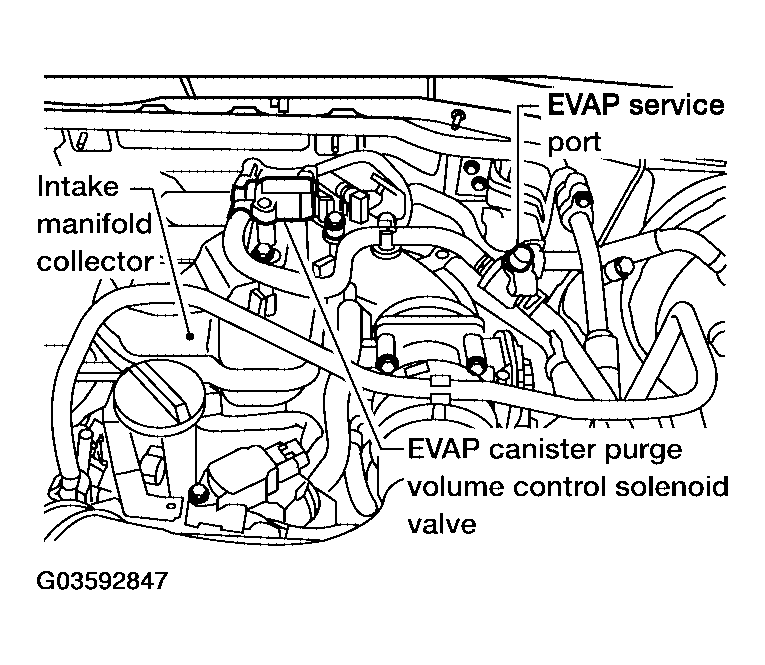

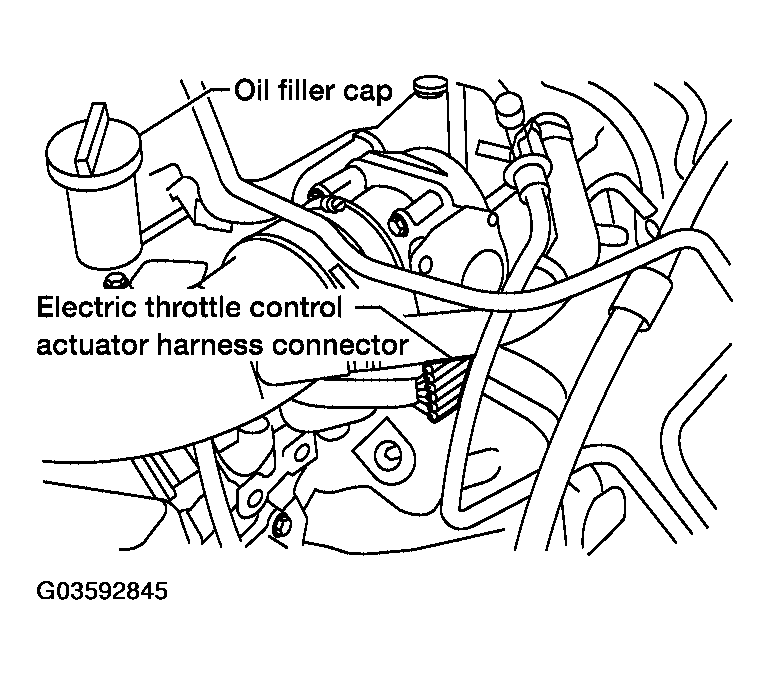

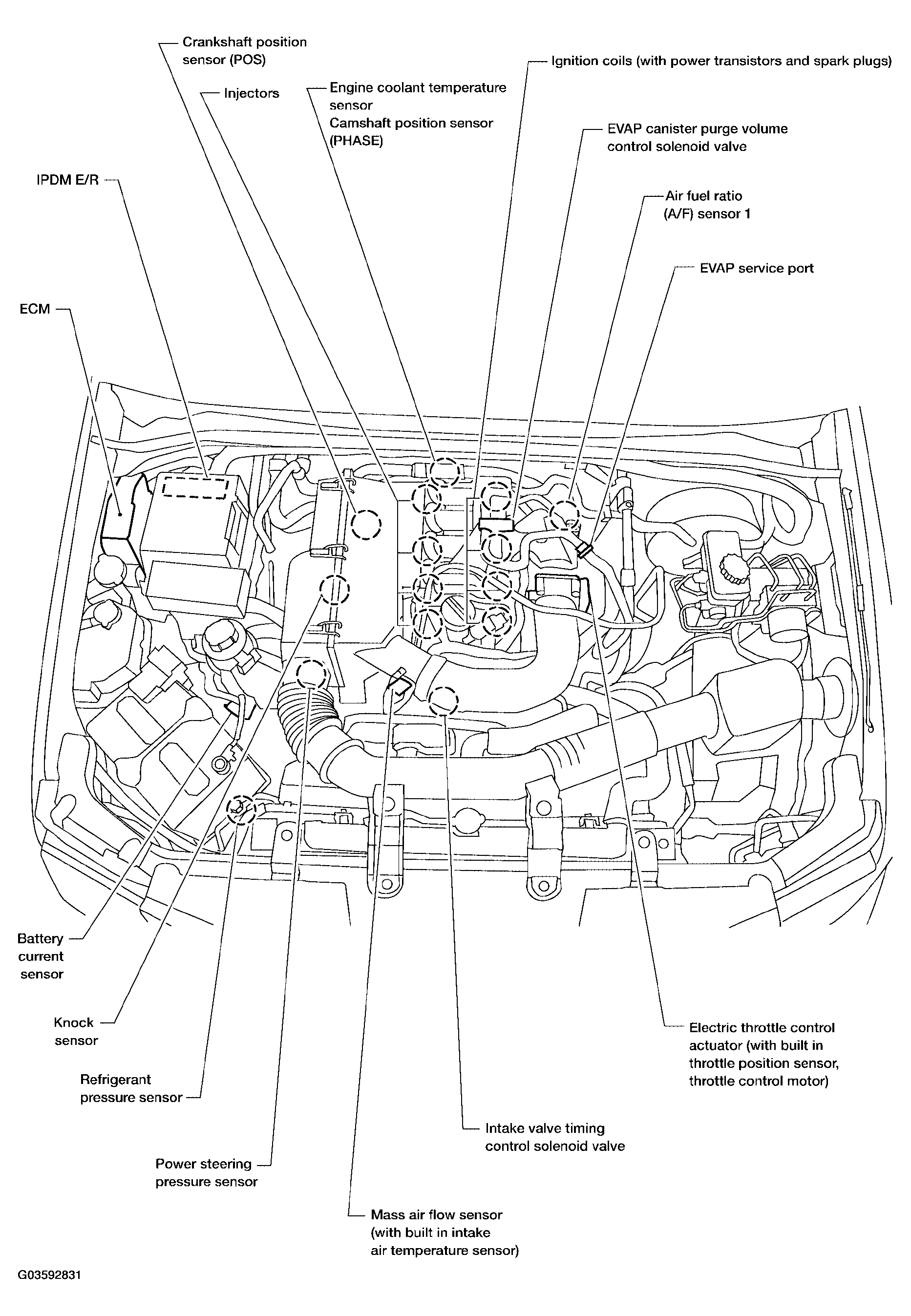

Fig 4: Identifying Engine Control Component Parts Location (4 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

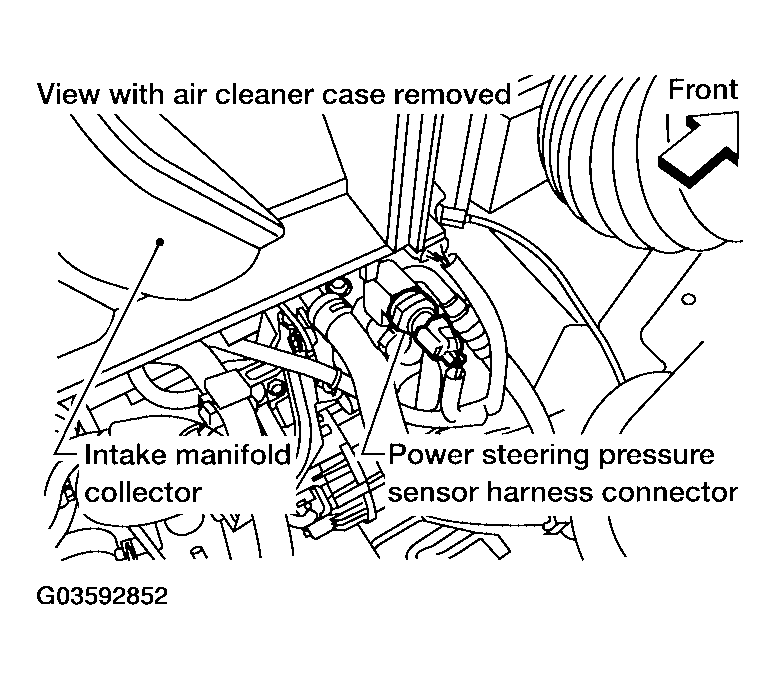

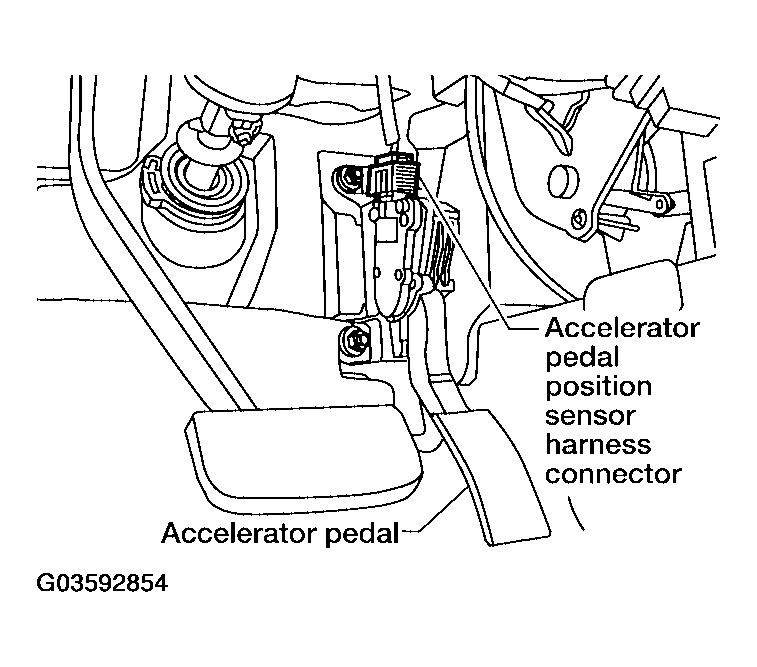

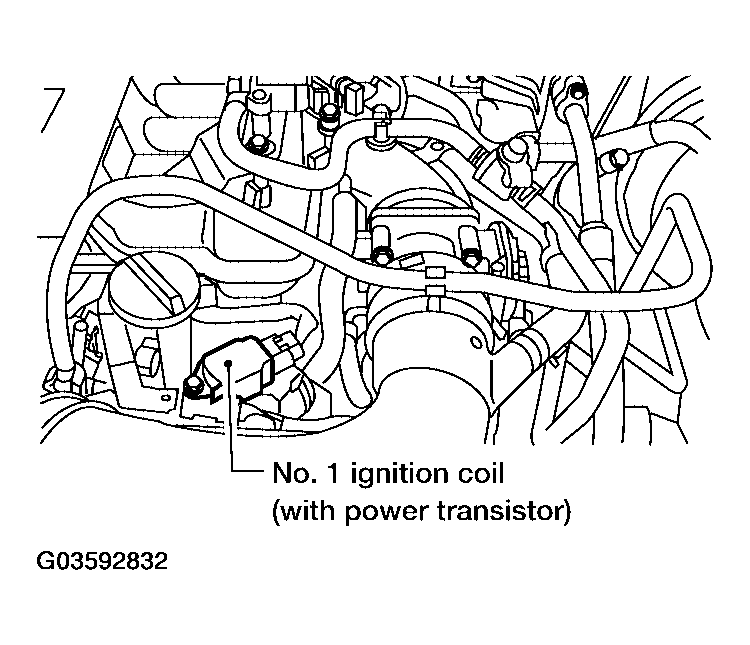

Fig 5: Identifying Engine Control Component Parts Location (5 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

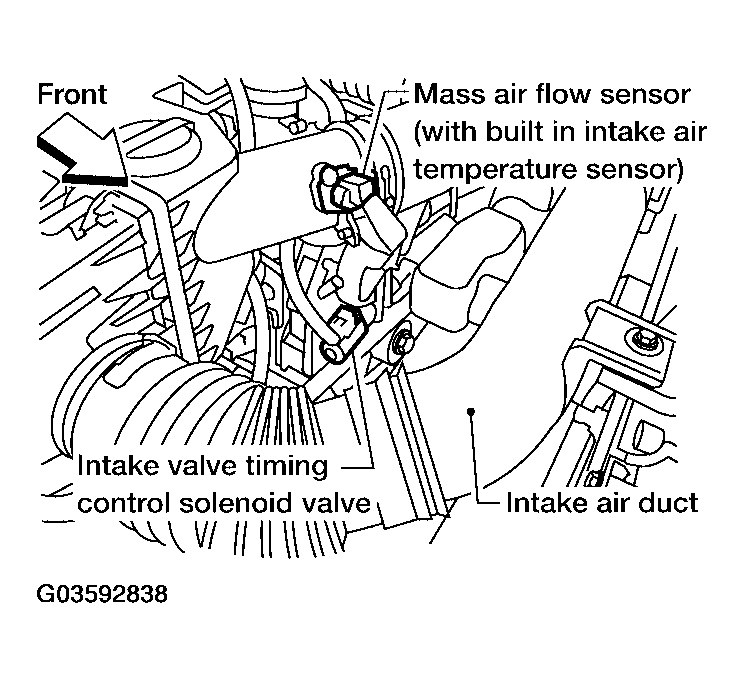

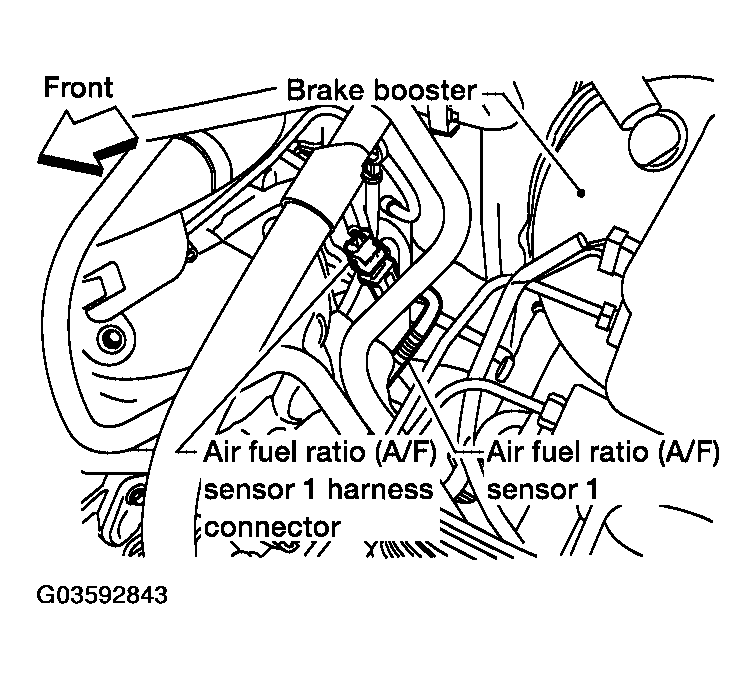

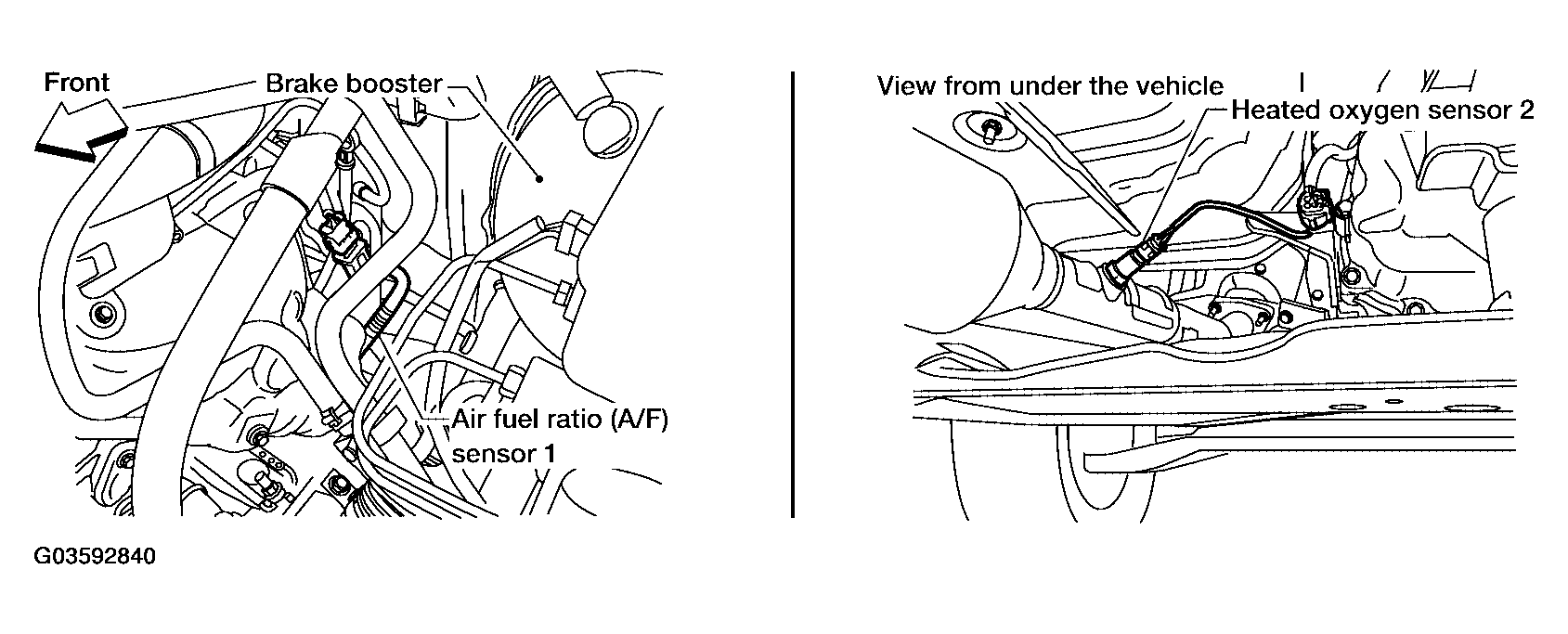

Fig 6: Identifying Engine Control Component Parts Location (6 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

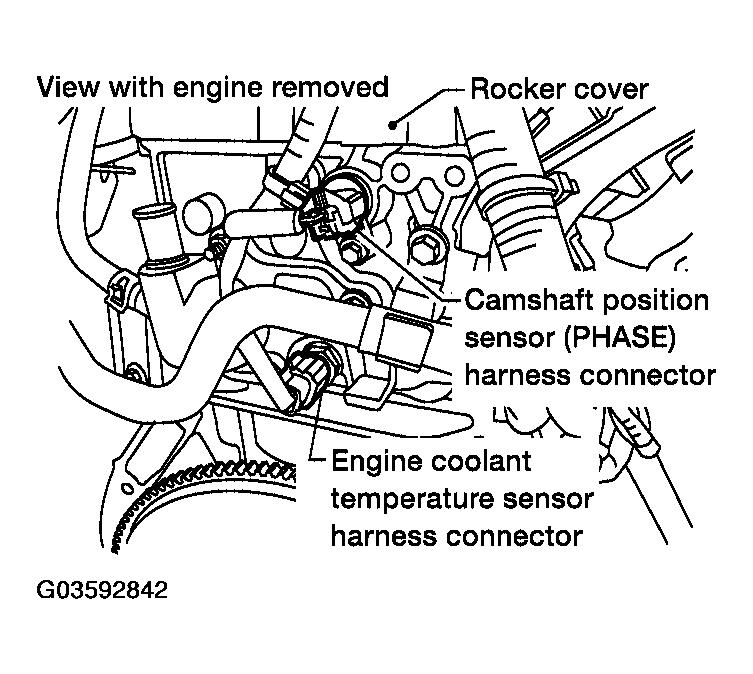

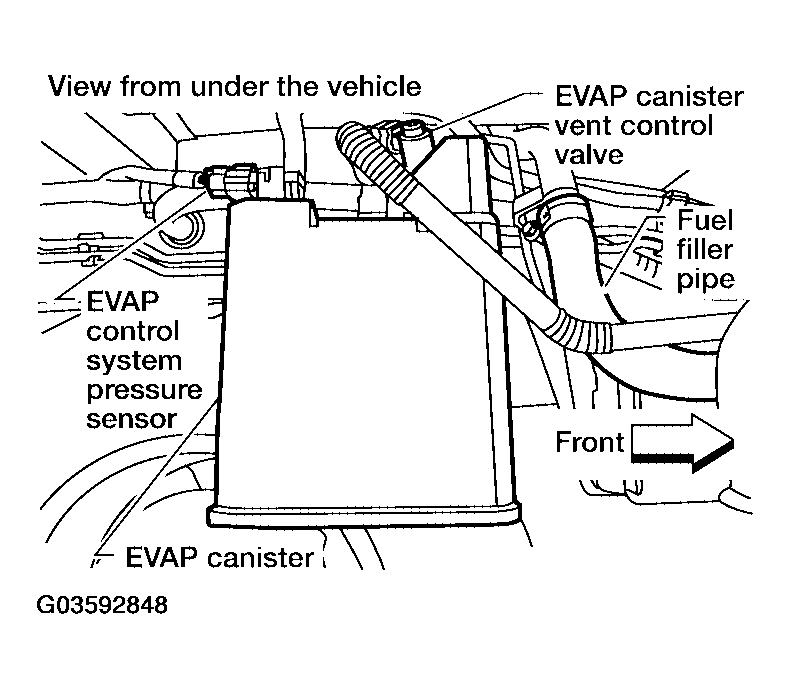

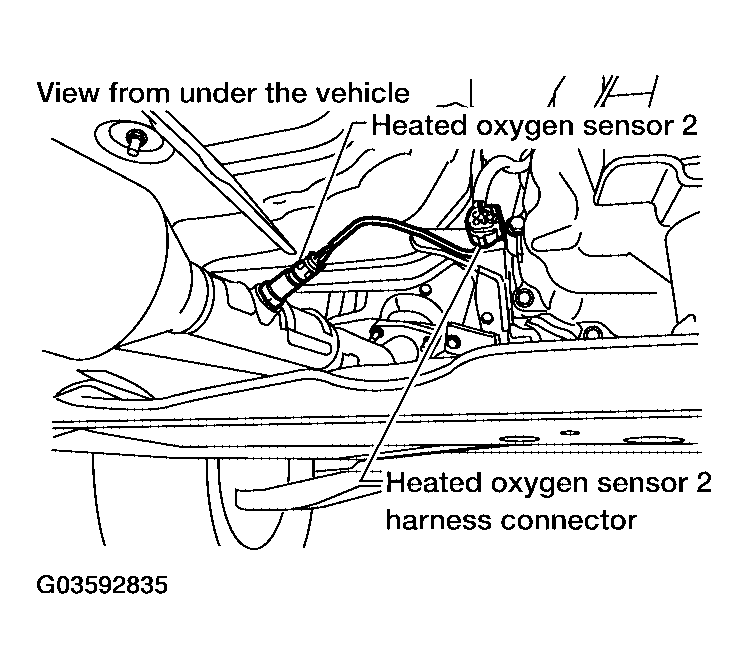

Fig 7: Identifying Engine Control Component Parts Location (7 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.

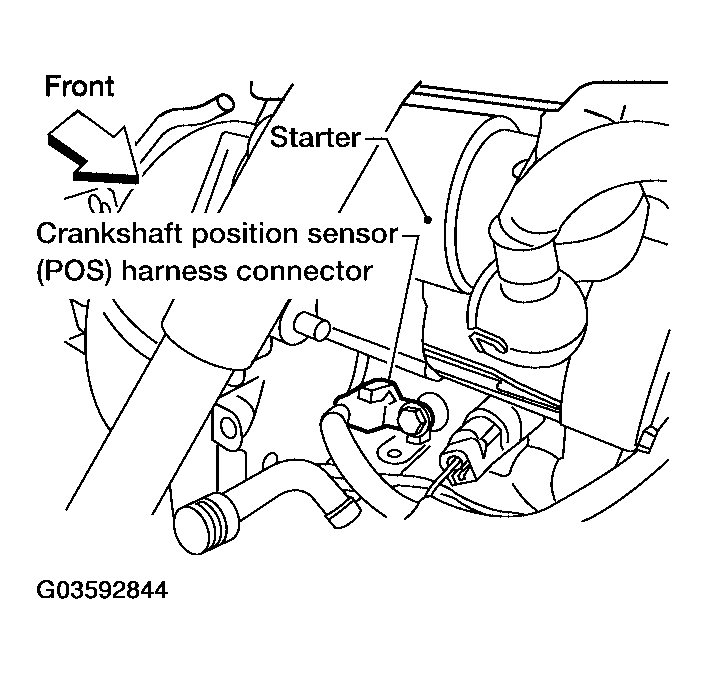

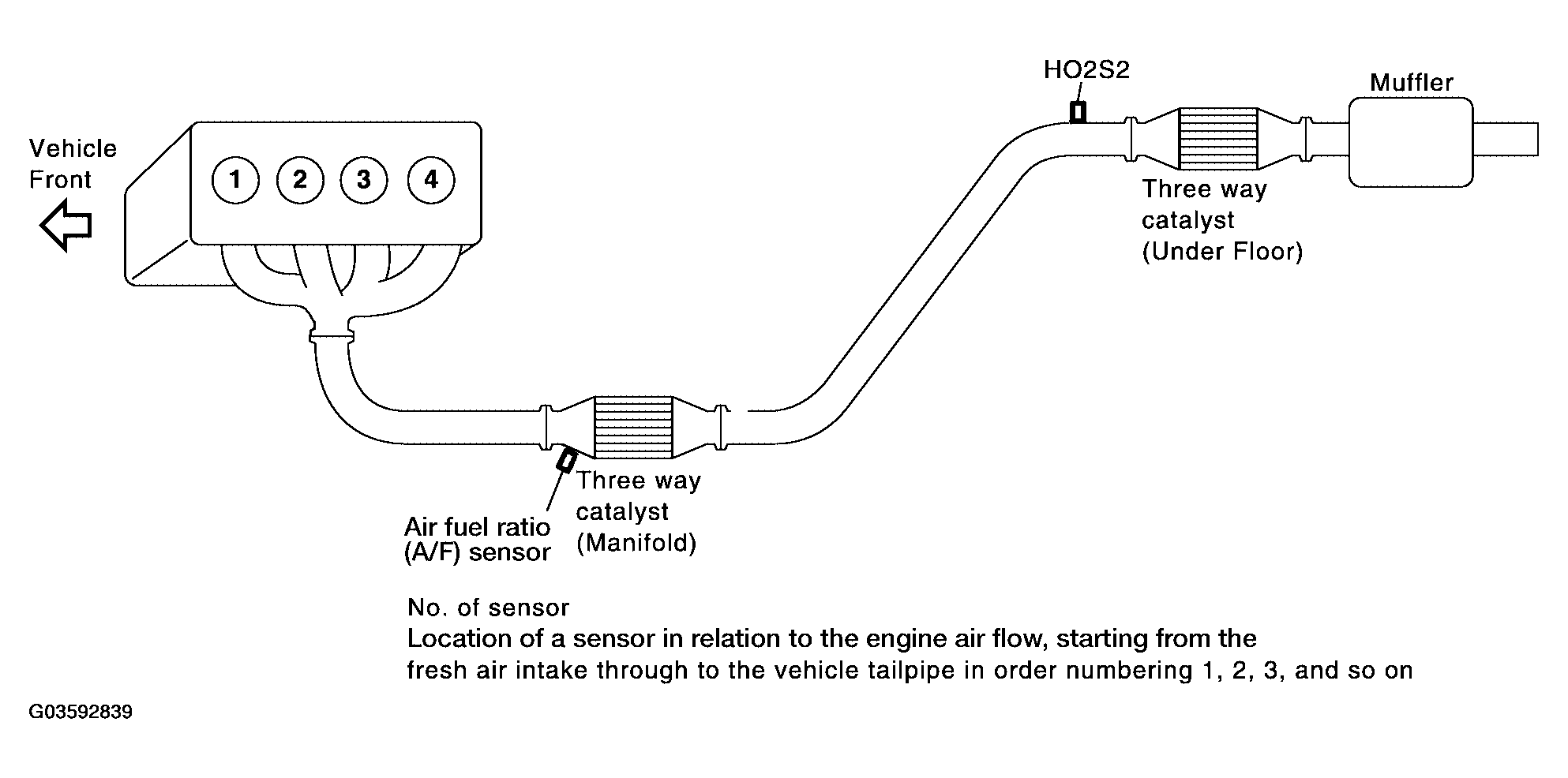

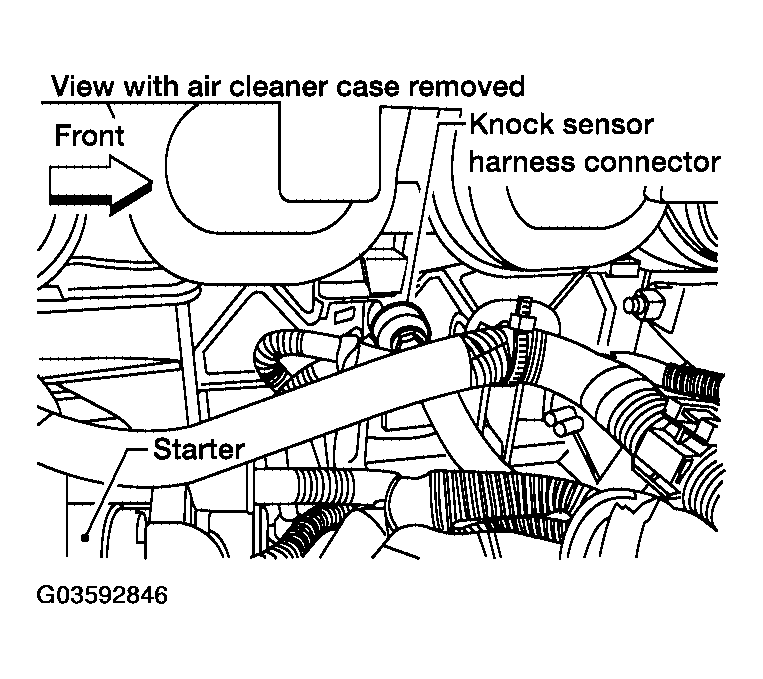

Fig 8: Identifying Engine Control Component Parts Location (8 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Identifying Engine Control Component Parts Location (9 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Identifying Engine Control Component Parts Location (10 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Identifying Engine Control Component Parts Location (11 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Identifying Engine Control Component Parts Location (12 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 13: Identifying Engine Control Component Parts Location (13 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Identifying Engine Control Component Parts Location (14 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 15: Identifying Engine Control Component Parts Location (15 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 16: Identifying Engine Control Component Parts Location (16 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 17: Identifying Engine Control Component Parts Location (17 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying Engine Control Component Parts Location (18 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying Engine Control Component Parts Location (19 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 20: Identifying Engine Control Component Parts Location (20 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 21: Identifying Engine Control Component Parts Location (21 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 22: Identifying Engine Control Component Parts Location (22 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 23: Identifying Engine Control Component Parts Location (23 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 24: Identifying Engine Control Component Parts Location (24 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 25: Identifying Engine Control Component Parts Location (25 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 26: Identifying Engine Control Component Parts Location (26 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 27: Identifying Engine Control Component Parts Location (27 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 28: Identifying Engine Control Component Parts Location (28 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 29: Identifying Engine Control Component Parts Location (29 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 30: Identifying Engine Control Component Parts Location (30 Of 30)
Courtesy of NISSAN MOTOR CO., U.S.A.
