Mil And Data Link Connector: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

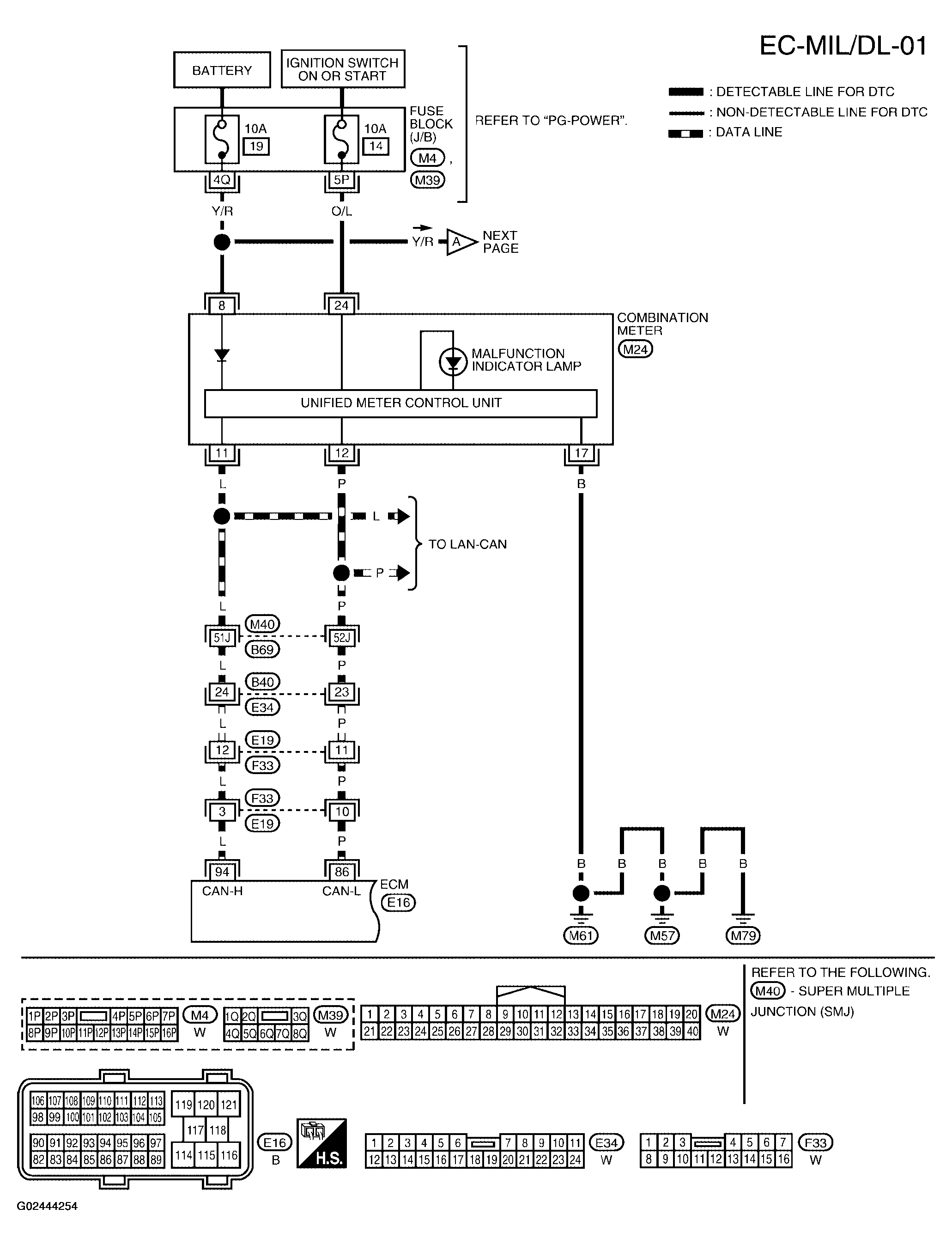

Fig 1: Wiring Diagram (EC-MIL/DL-01)
G02444254Courtesy of NISSAN MOTOR CO., U.S.A.

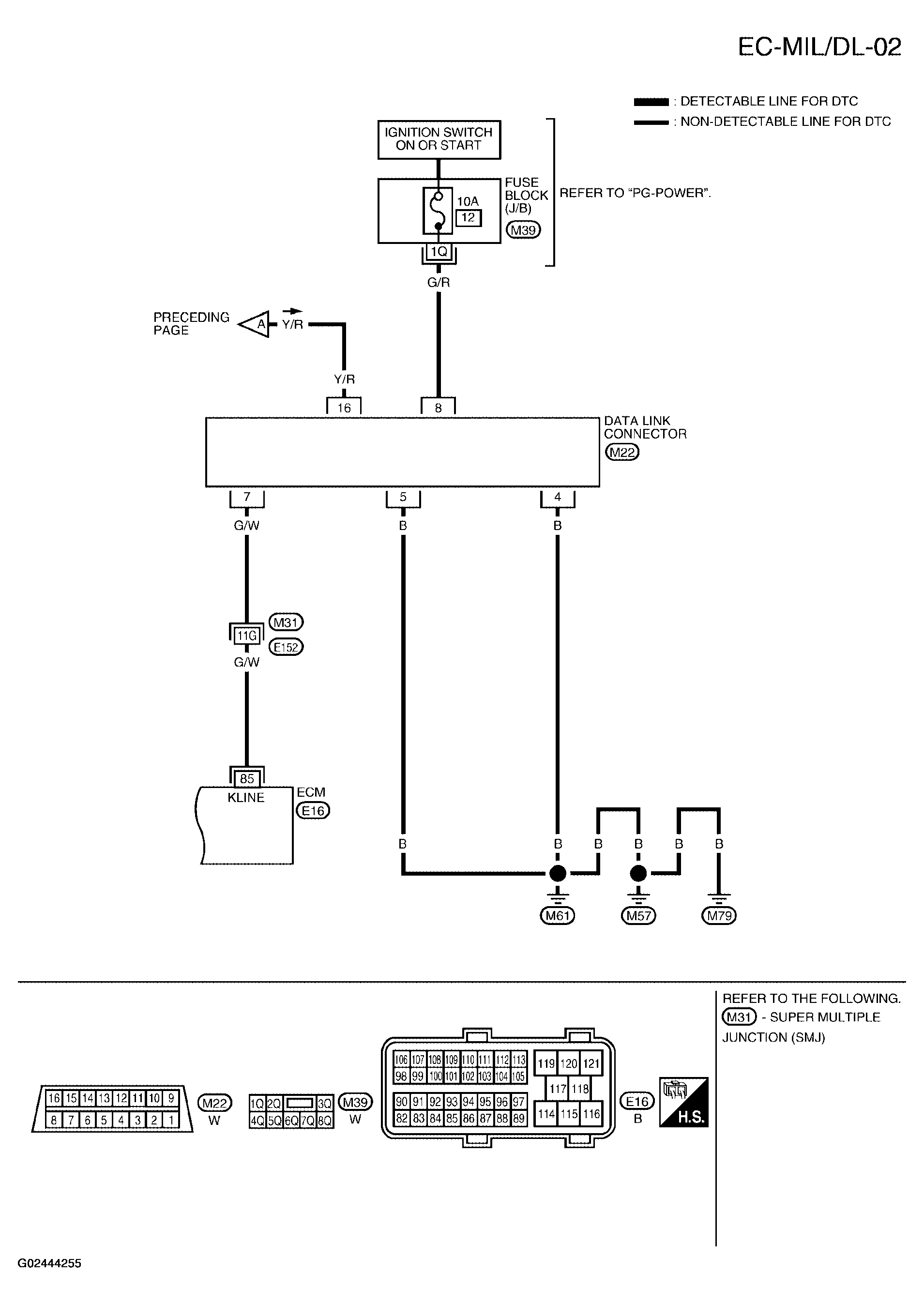

Fig 2: Wiring Diagram (EC-MIL/DL-02)
G02444255Courtesy of NISSAN MOTOR CO., U.S.A.
