Cooling Fan Control

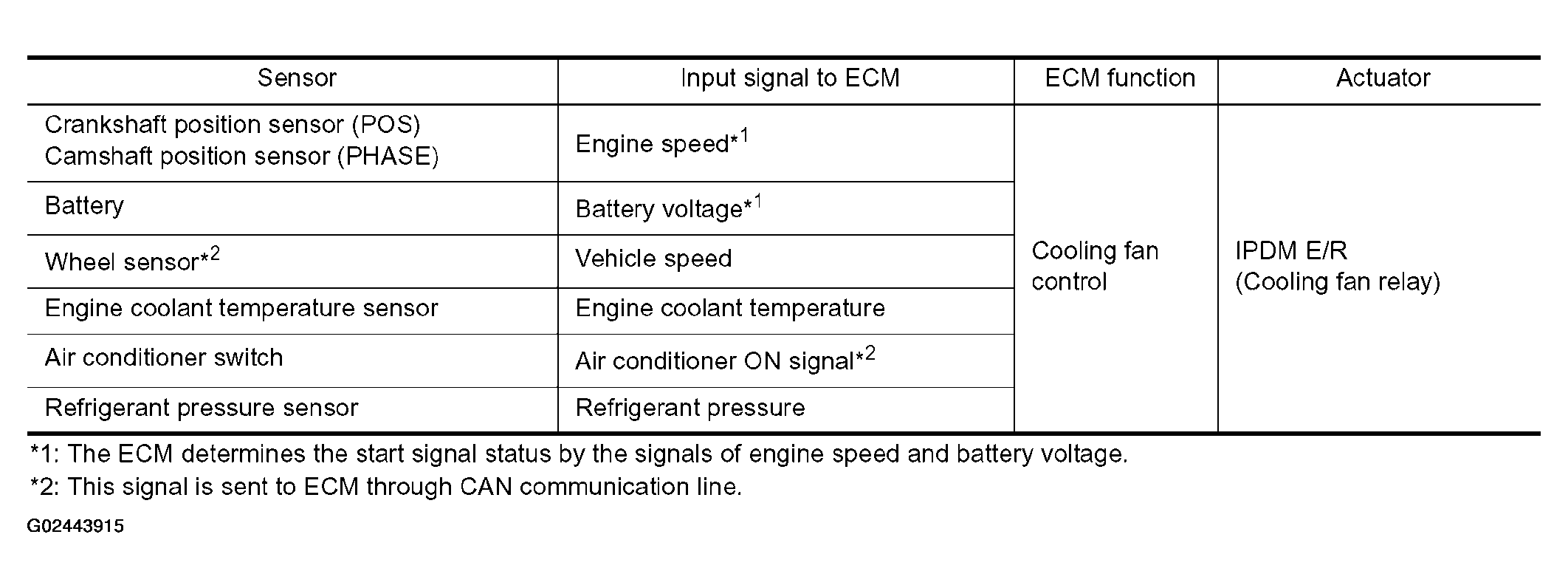

Fig 1: Sensor Description Chart
G02443916Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 2-step control [HI/OFF].
