DTC P0826: Manual Mode Switch Circuit
>>
CONSULT-II Reference Value in Data Monitor Mode
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
CONSULT-II Reference Value in Data Monitor Mode

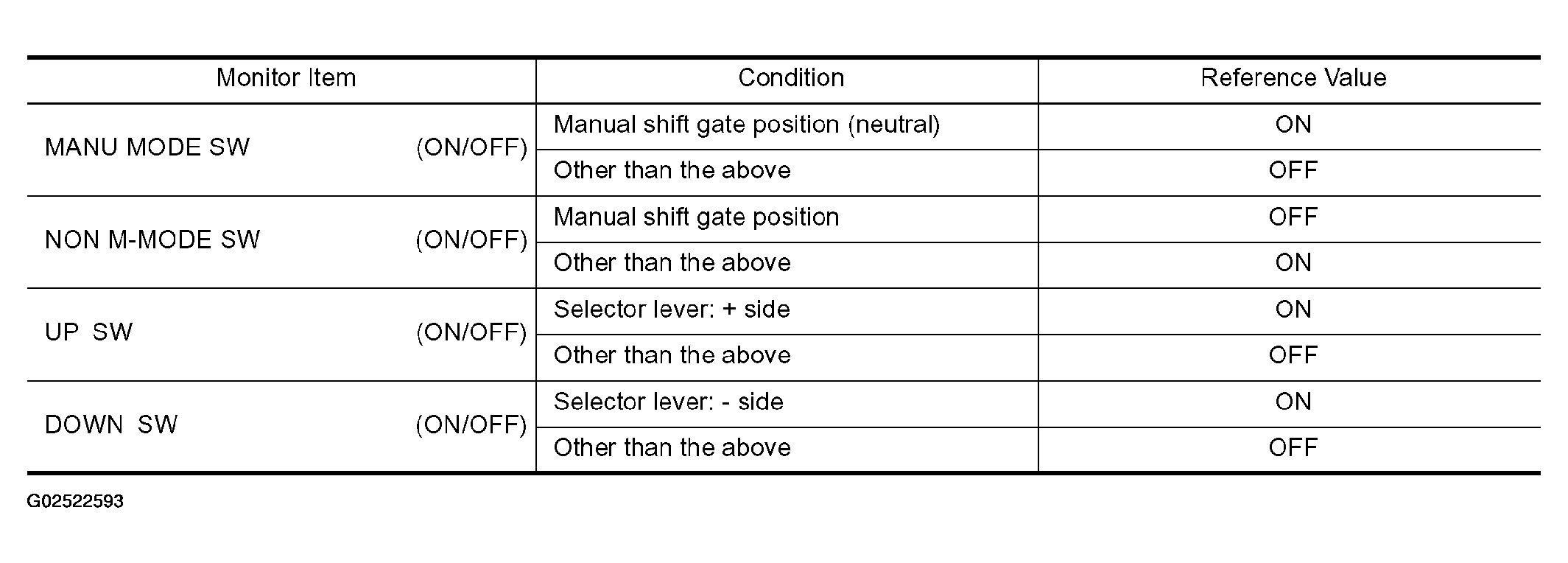

Fig 1: Consult-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
